Removal Procedure

  1. Position the front seats rearward.

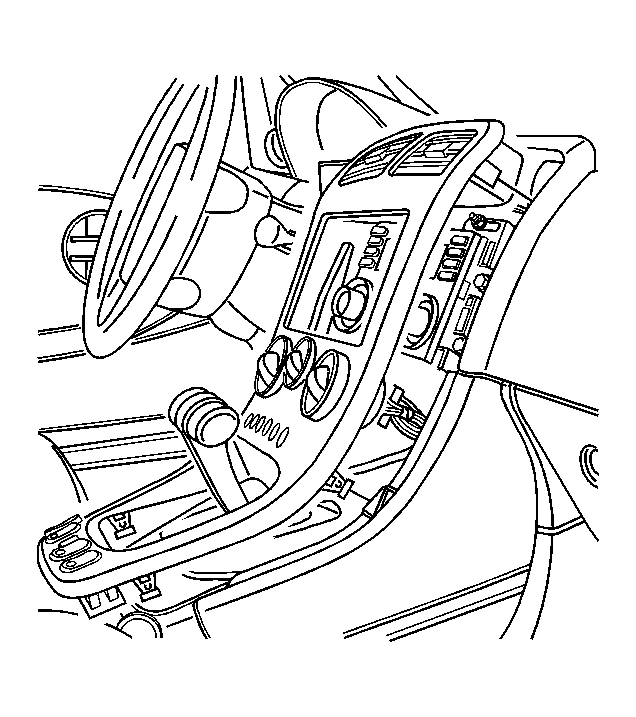

    2. Fig 1: View Of Center Console Trim Bezel
    GM1344259Courtesy of GENERAL MOTORS CORP.
  2. Remove the center trim panel by pulling outward.
    3. Fig 2: Removing/Installing Front Console Trim Panels
    GM1152095Courtesy of GENERAL MOTORS CORP.
  3. Remove the screws from the left console trim panel.
    4. Fig 3: View Of Center Trim Plate
    GM1347013Courtesy of GENERAL MOTORS CORP.
  4. Remove the push-in fastener from the trim panel.
    5. Fig 4: Removing Console Trim Panel
    GM1350068Courtesy of GENERAL MOTORS CORP.
  5. Remove the trim panel from the vehicle.
