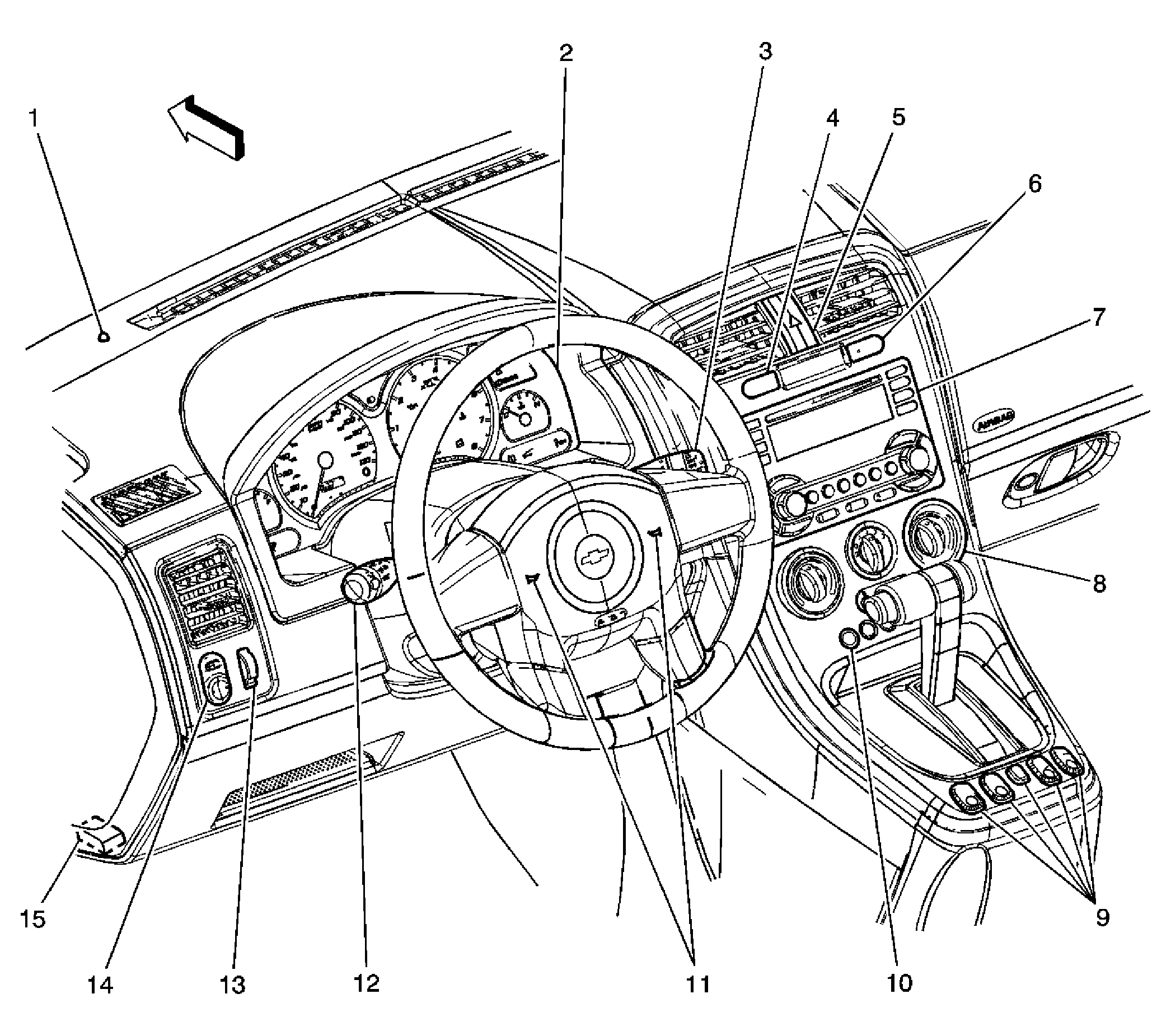

Instrument Panel, Gages, and Console Component Views
| Callout | Component Name |
|---|---|
| 1 | Ambient Light Sensor |
| 2 | Instrument Panel Cluster (IPC) |
| 3 | Windshield Wiper/Washer Switch |
| 4 | Traction Control (TC) Switch (JM4) |
| 5 | Hazard Switch |
| 6 | Fog Lamp Switch (T96) |
| 7 | Radio |
| 8 | HVAC Control Module |
| 9 | Power Window Switch - Main |
| 10 | Transmission Range Indicator |
| 11 | Horn Switch/Pad - Part of the Inflatable Restraint Steering Wheel Module |
| 12 | Headlamp Switch |
| 13 | Dimmer Switch |
| 14 | Outside Rearview Mirror Switch |
| 15 | Data Link Connector (DLC) |

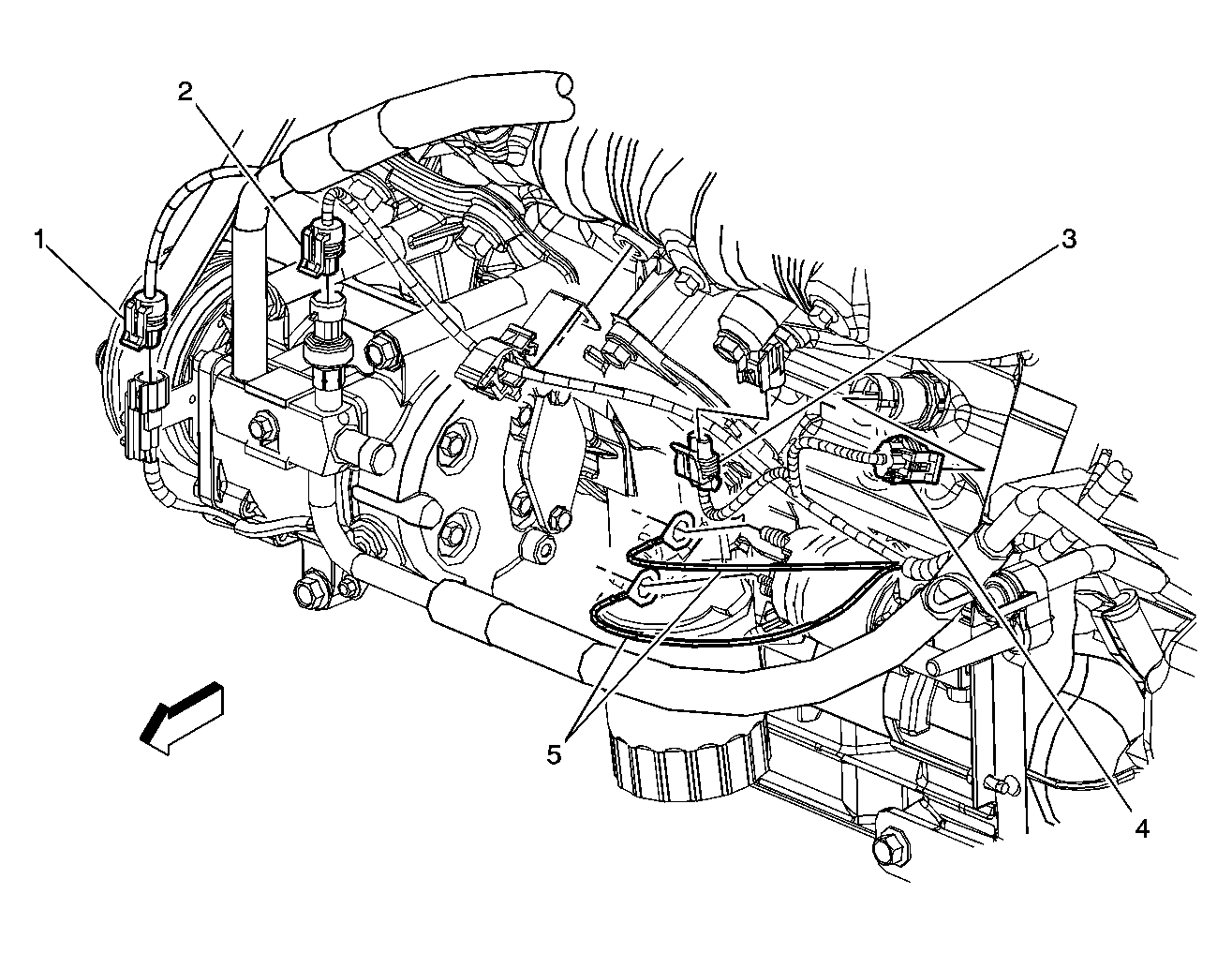

| Callout | Component Name |
|---|---|
| 1 | A/C Compressor Clutch |
| 2 | A/C Refrigerant Pressure Sensor |
| 3 | Knock Sensor (KS) 2 |
| 4 | Engine Oil Pressure (EOP) Switch |
| 5 | Starter Motor Leads |
| Callout | Component Name |
|---|---|
| 1 | Fuel Tank Pressure (FTP) Sensor Connector |
| 2 | Fuel Pump and Sender Assembly Connector - Primary |
| 3 | Fuel Pump |
| 4 | Lead - Primary Sender to Secondary Sender Assmbly |
| 5 | Fuel Level Sensor |
| 6 | Fuel Pump and Sender Assembly Connector - Secondary |
