Power Steering Pump Drive Belt Replacement

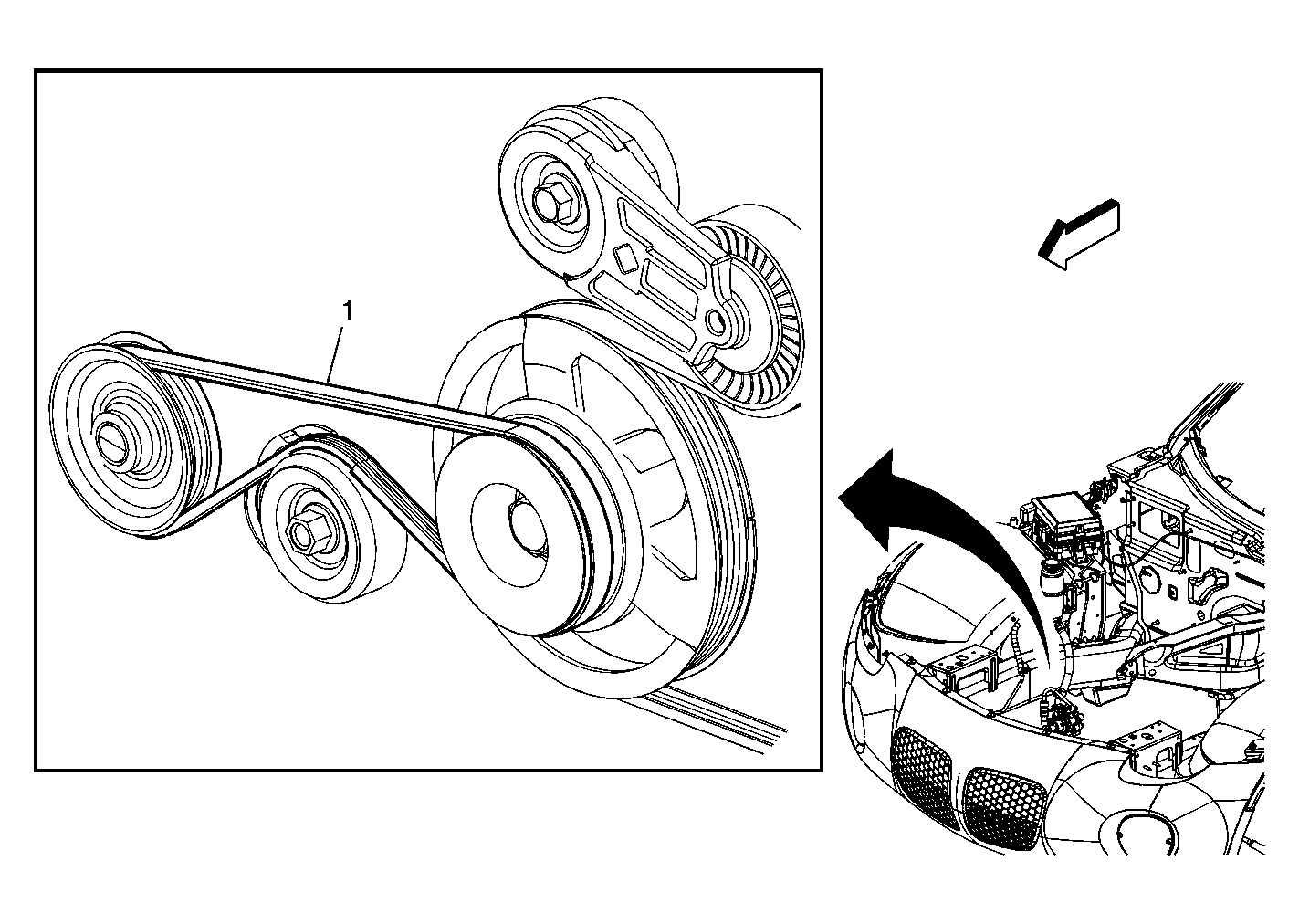

Fig 1: Power Steering Pump Drive Belt

Courtesy of GENERAL MOTORS CORP.

Power Steering Pump Drive Belt Replacement

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications . Preliminary Procedure:  Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Belt, Power Steering Drive
