Seat Belt Retractor Pretensioner Replacement - Front

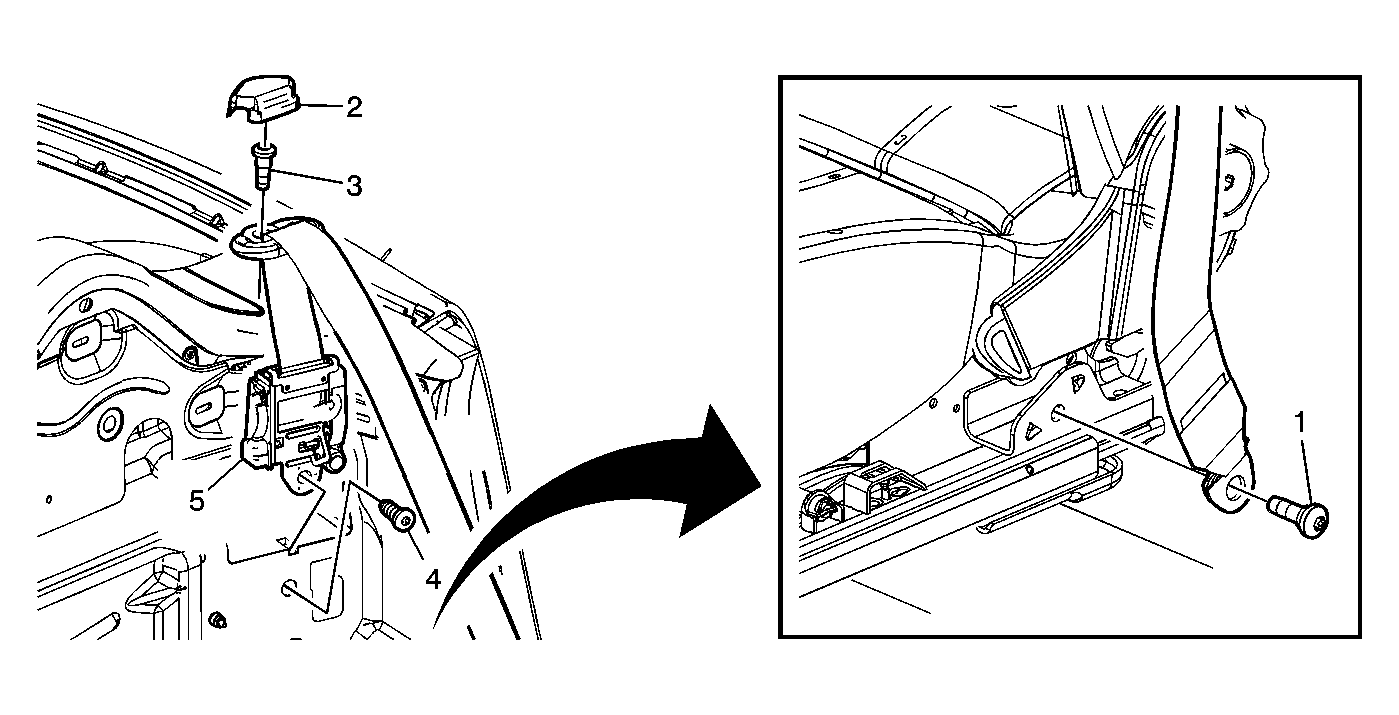

Fig 1: Seat Belt Retractor Pretensioner - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Caution . CAUTION: In order to prevent accidental deployment and the risk of personal injury, do not dispose of an undeployed inflatable restraint seat belt pretensioner as normal shop waste. Undeployed seat belt pretensioners contain substances that could cause severe illness or personal injury if their sealed containers are damaged during disposal. Use the following deployment procedures to safely dispose of an undeployed seat belt pretensioner. Failure to observe the following disposal methods may be a violation of federal, state, or local laws. NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Disable SIR zones 7 and 9. Refer to SIR Disabling and Enabling Zone 7 SIR Disabling and Enabling Zone 9 . Remove the front seat. Refer to Seat Replacement . Remove the front seat back body panel. Refer to Front Seat Back Body Panel Replacement .
1	Bolt, Seat Belt Anchor Plate Tighten: 45 N.m (33 lb ft)
2	Cover, D-Ring
3	Bolt, Seat Shoulder Belt Guide Tighten: 45 N.m (33 lb ft)
4	Bolt, Seat Shoulder Belt Retractor Tighten: 45 N.m (33 lb ft)
5	Retractor, Seat Shoulder Belt
