Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

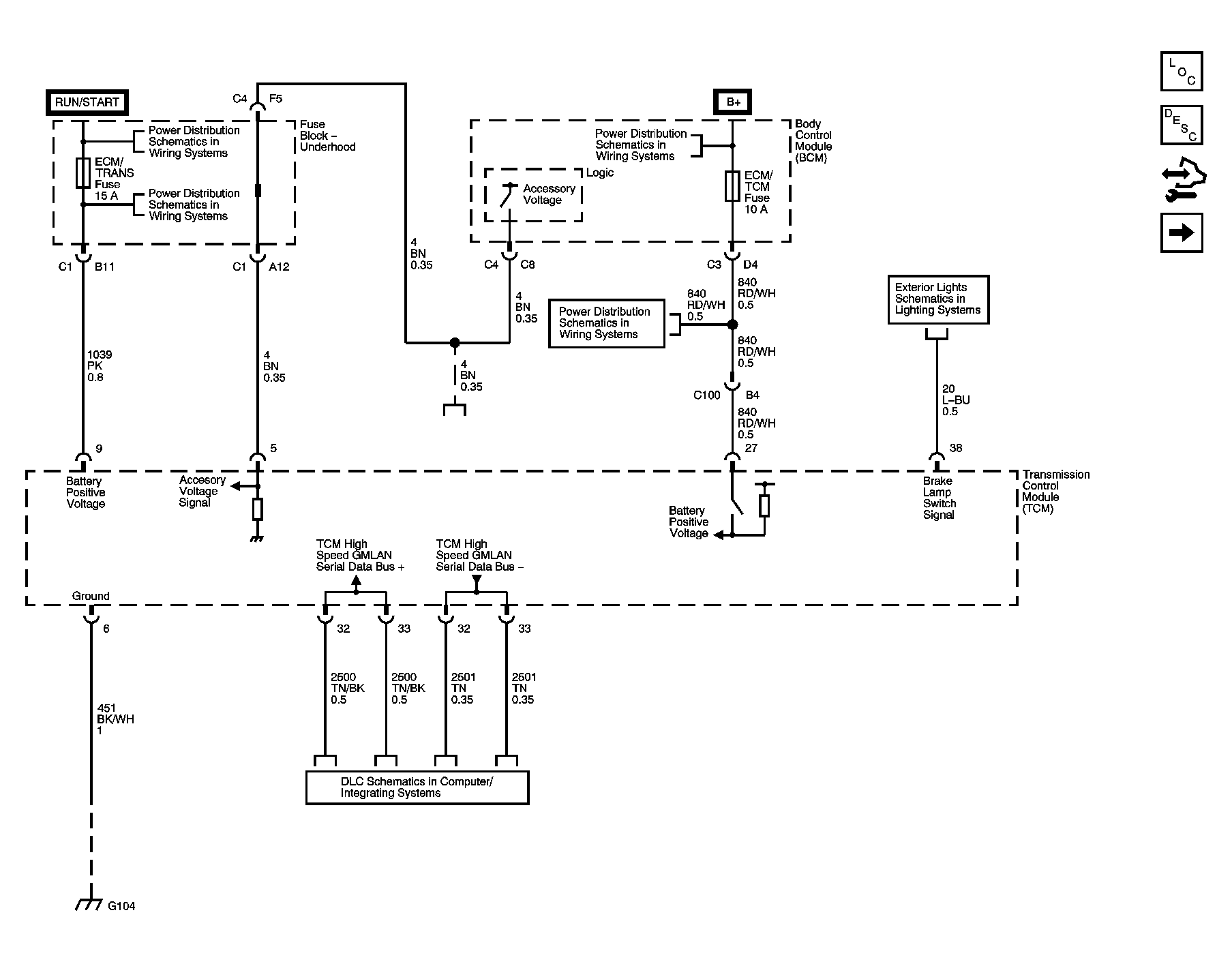

Fig 1: DLC, Ground, MIL, and Power
GM1578241Courtesy of GENERAL MOTORS CORP.

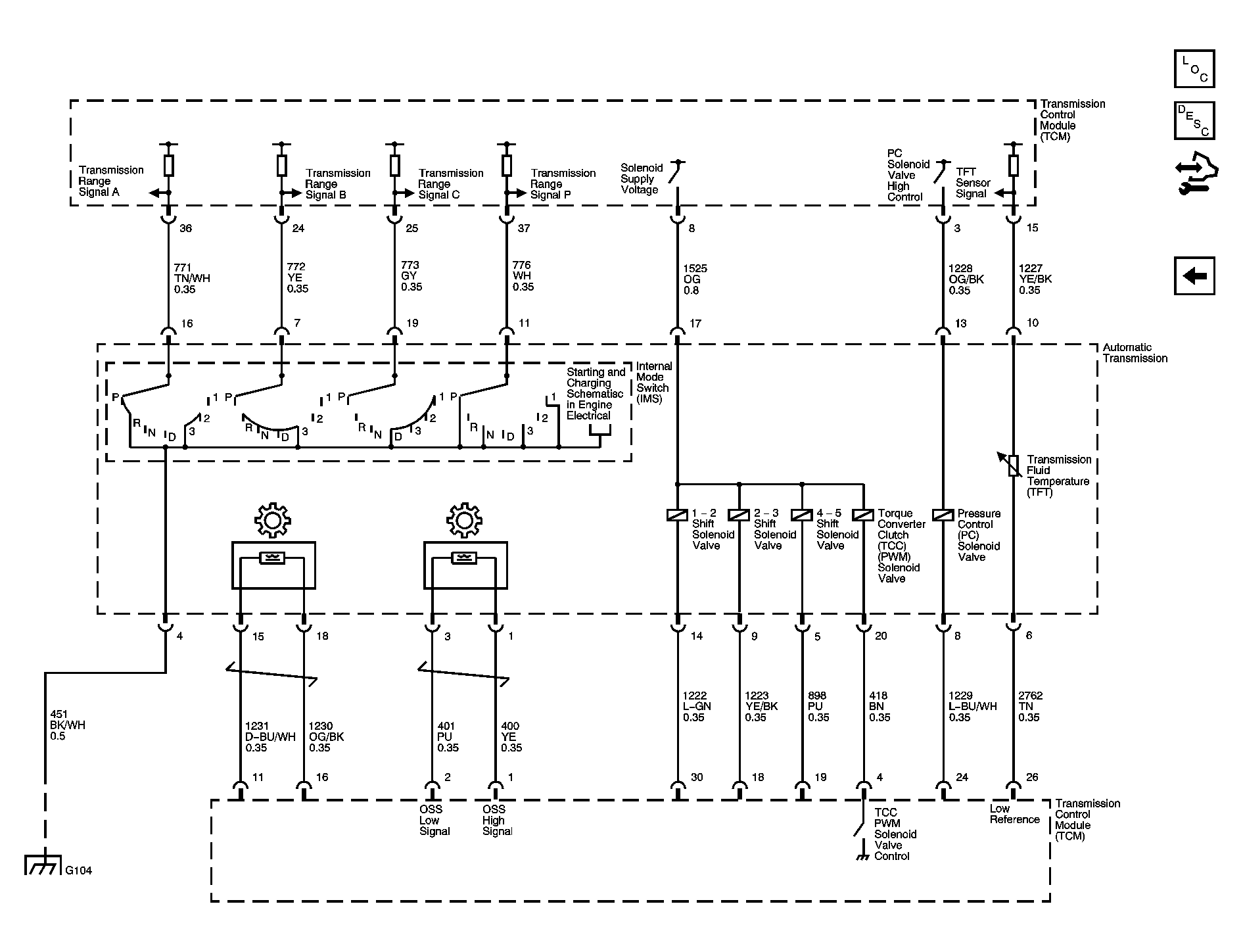

Fig 2: Shift Solenoids, TFT, and OSS
GM1578243Courtesy of GENERAL MOTORS CORP.
