Instrument Cluster Schematics
Instrument Cluster Schematics

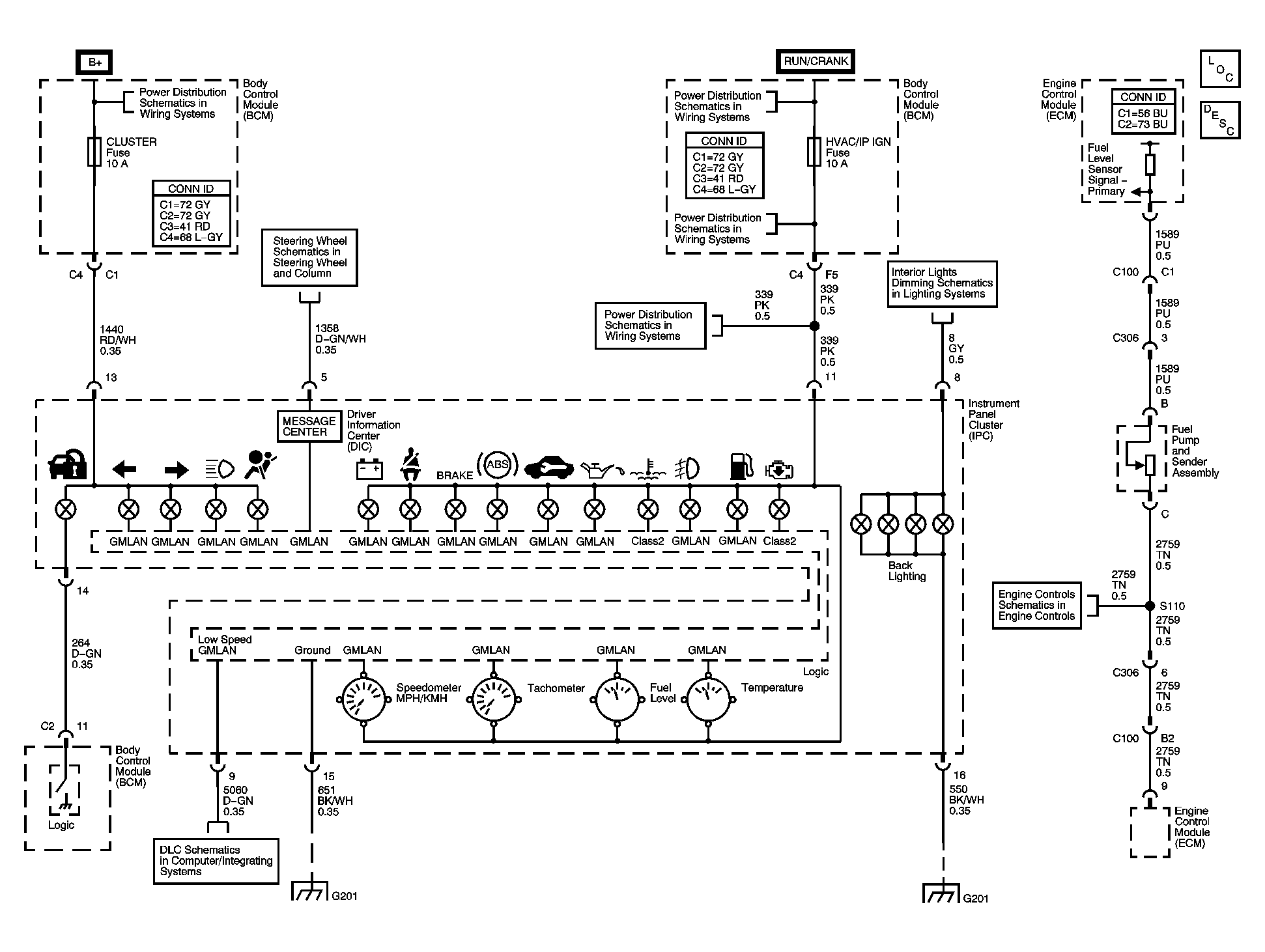

Fig 1: Instrument Cluster Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
