ABS Schematics

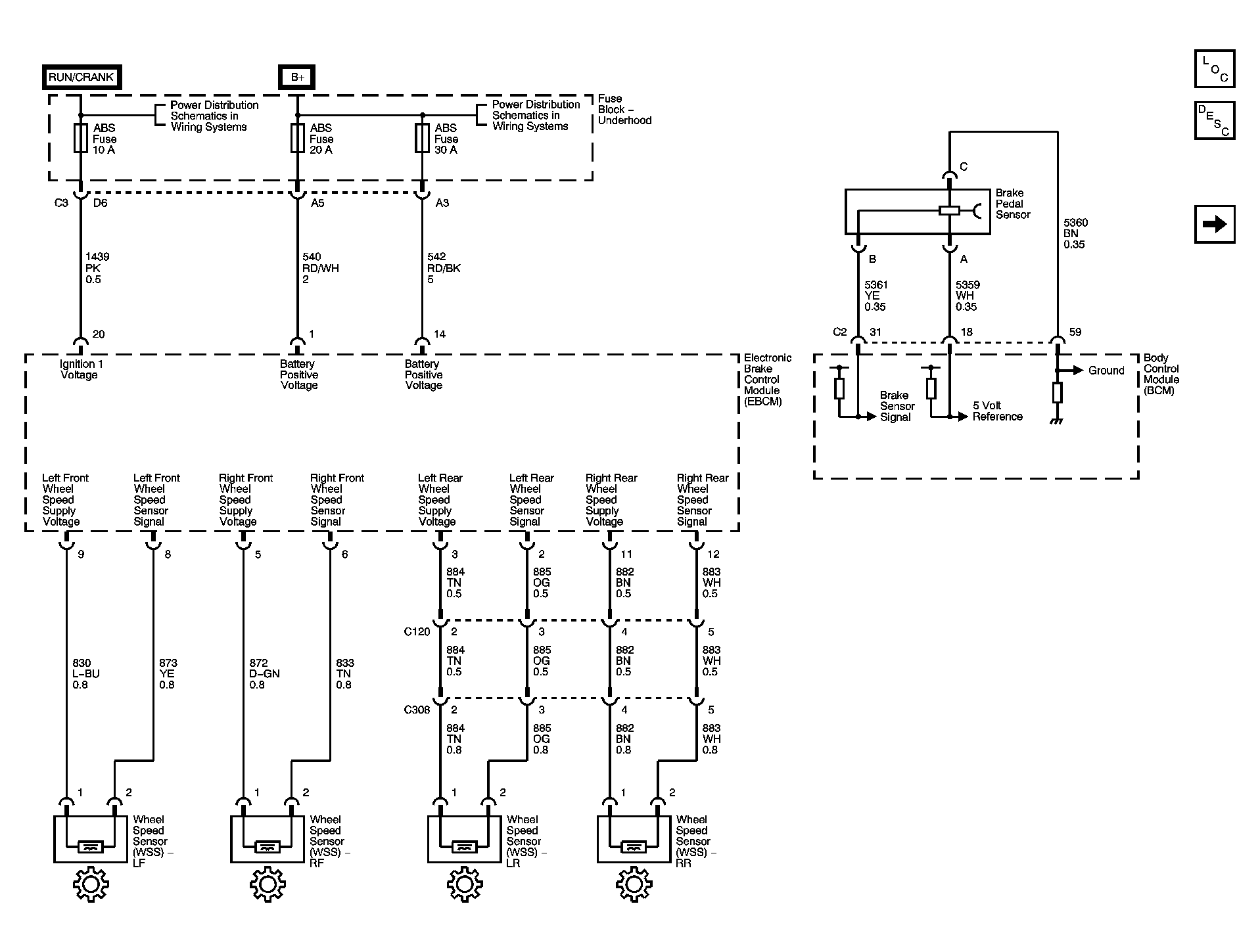

Fig 1: EBCM Power, Wheel and Speed Sensors, and Brake Pedal Sensor
GM1567153Courtesy of GENERAL MOTORS CORP.

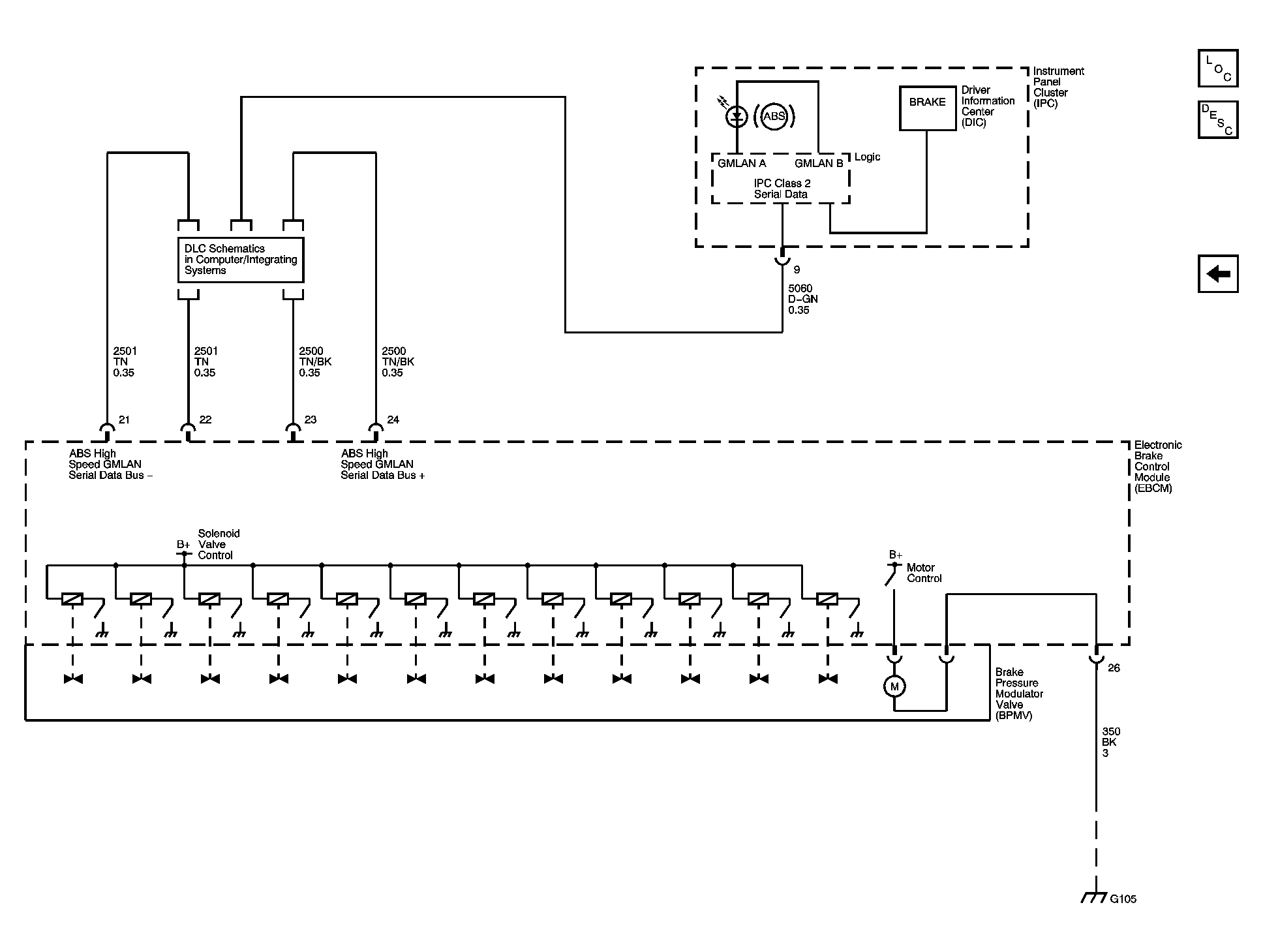

Fig 2: Brake Pressure Modulator Valves and ABS Telltale Indicator
GM1567159Courtesy of GENERAL MOTORS CORP.
