Brake Caliper Bracket Replacement - Rear

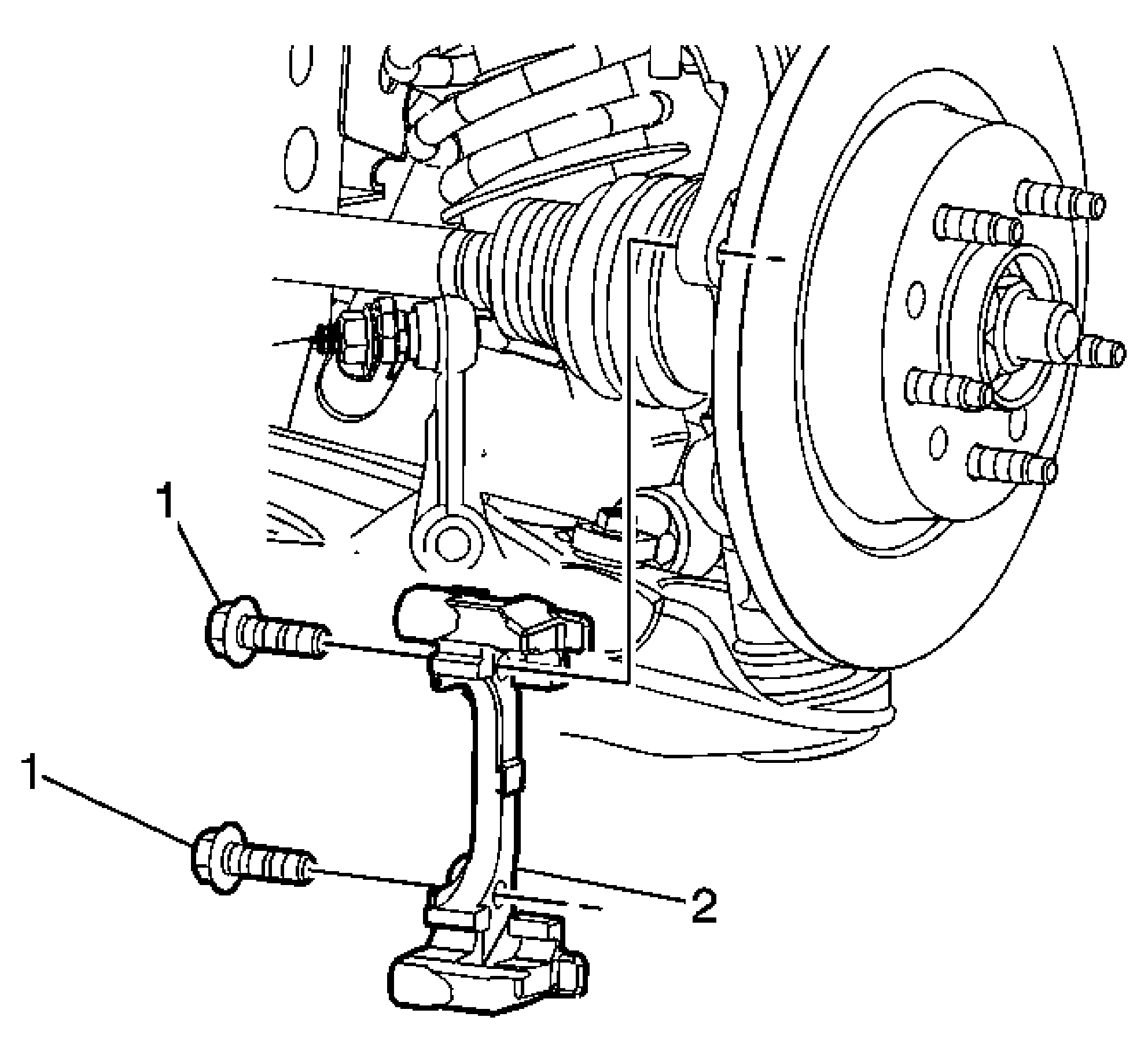

Fig 1: Rear Brake Caliper Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Dust Caution . NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the rear disc brake pads. Refer to Brake Pads Replacement - Rear .
1	Bolts, Brake Caliper Bracket (Qty: 2) Tighten: 100 N.m (74 lb ft)
2	Bracket, Rear Brake Caliper Tip: Apply lubricate to the front caliper guide pins ensuring adequate lubrication to both pin areas of the front brake caliper bracket with GM P/N 22688644 or equivalent.

Callout

Component Name

CAUTION: Refer to Brake Dust Caution .

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Remove the rear disc brake pads. Refer to Brake Pads Replacement - Rear .

Bolts, Brake Caliper Bracket (Qty: 2)

Tighten: 100 N.m (74 lb ft)

Bracket, Rear Brake Caliper
Tip: Apply lubricate to the front caliper guide pins ensuring adequate lubrication to both pin areas of the front brake caliper bracket with GM P/N 22688644 or equivalent.
