Brake Caliper Bracket Replacement - Front

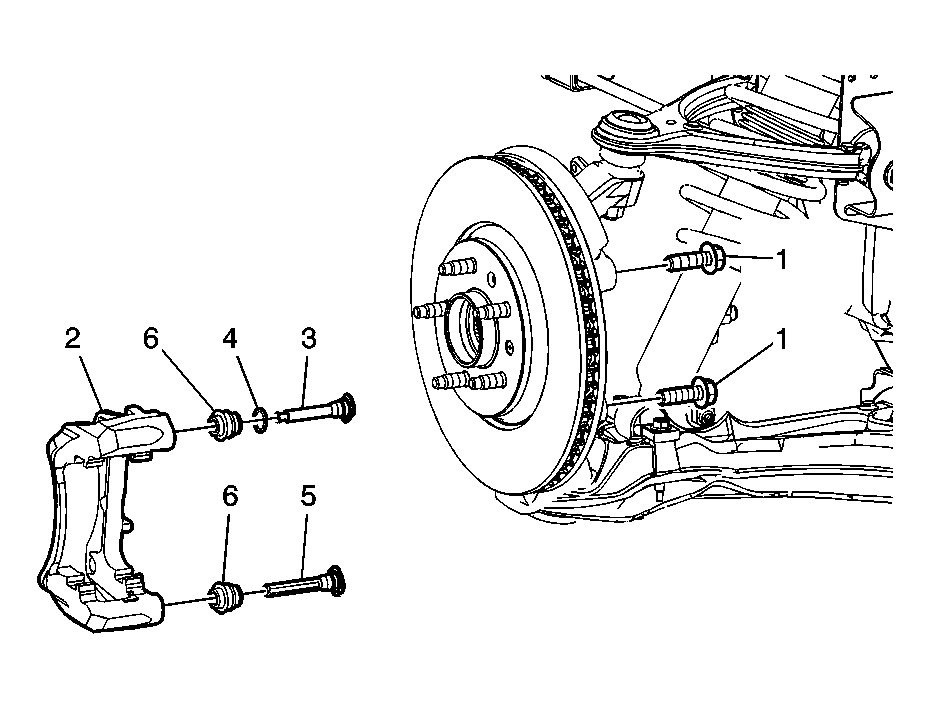

Fig 1: Front Brake Caliper Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Dust Caution . NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the front disc brake pads. Refer to Brake Pads Replacement - Front .
1	Bolts, Brake Caliper Bracket (Qty: 2) Tighten: 100 N.m (74 lb ft)
2	Bracket, Rear Brake Caliper
3	Pin, Rear Disc Brake Caliper Guide Tip: Apply lubricate to the front caliper guide pins ensuring adequate lubrication to both pin areas of the front brake caliper bracket with GM P/N 22688644 or equivalent.
4	Seal, Front Brake Caliper Guide Pin
5	Pin, Rear Disc Brake Caliper Guide
6	Boot, Rear Brake Caliper Guide Pin (Qty: 2)
