Radio/Audio System Schematics

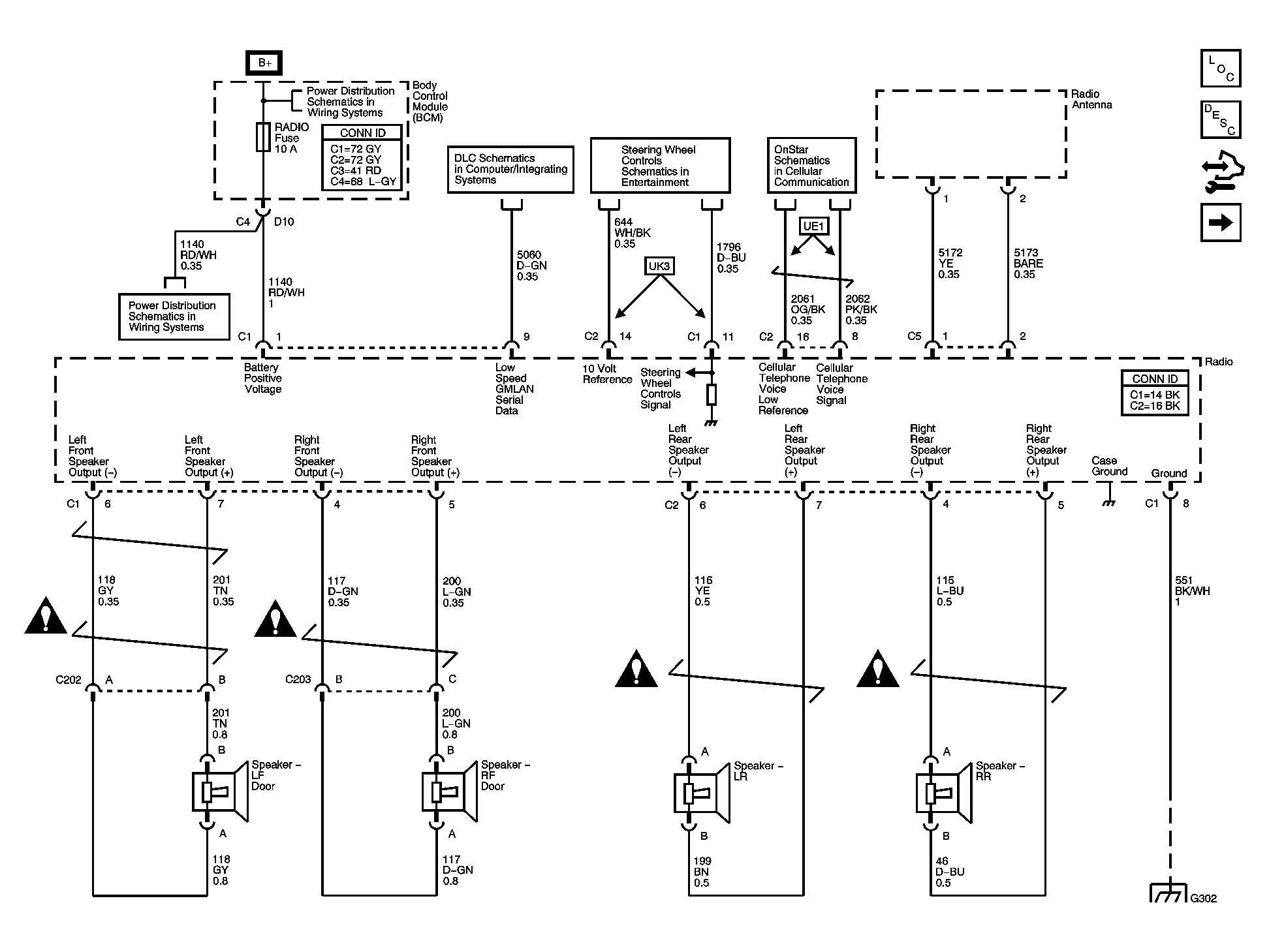

Fig 1: Base Radio
GM1583417Courtesy of GENERAL MOTORS CORP.
Fig 2: Uplevel Radio (1 of 2)
GM1583418Courtesy of GENERAL MOTORS CORP.
Fig 3: Uplevel Radio (2 of 2)
GM1583419Courtesy of GENERAL MOTORS CORP.

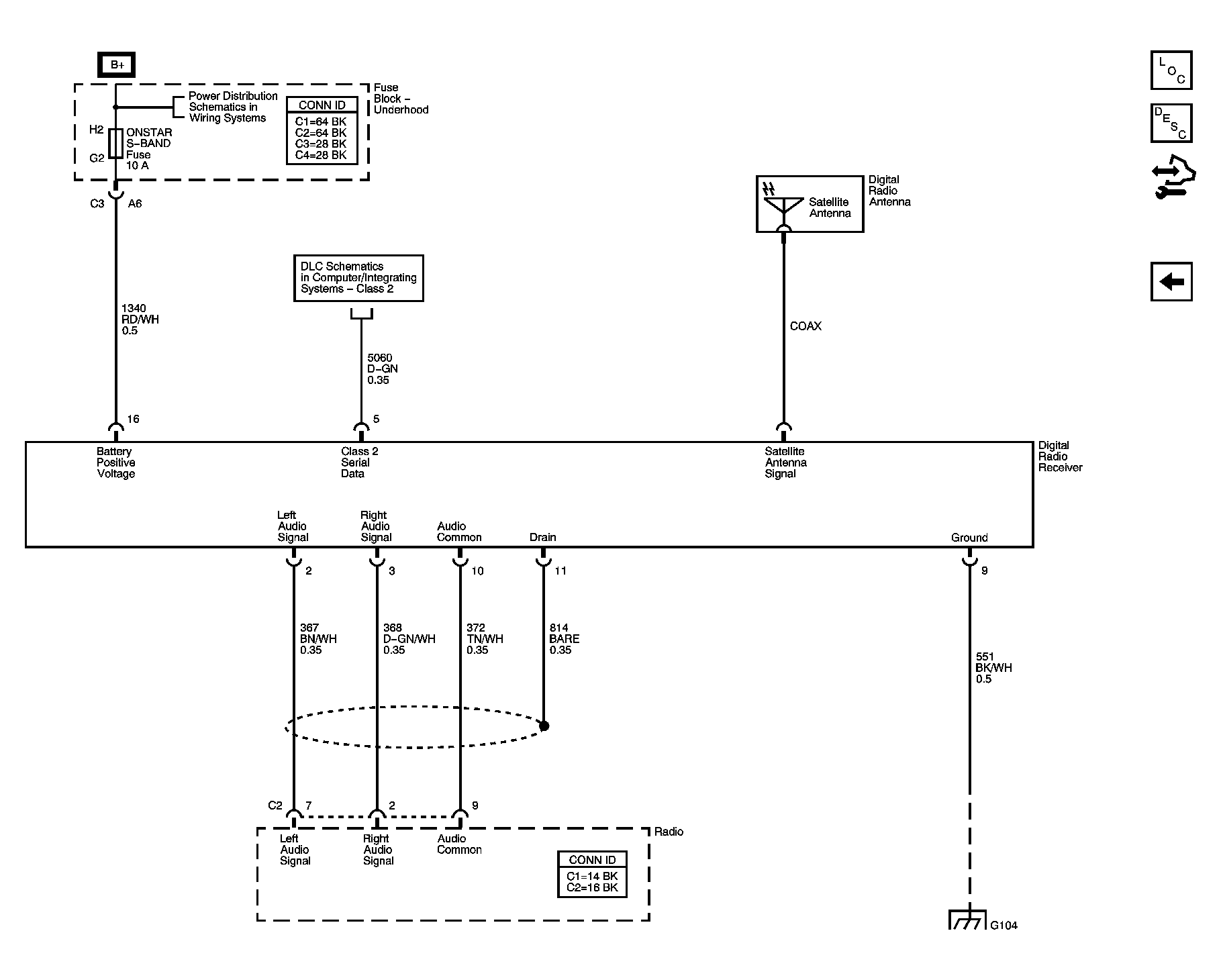

Fig 4: Satellite Radio
GM1583420Courtesy of GENERAL MOTORS CORP.
