OnStar Schematics

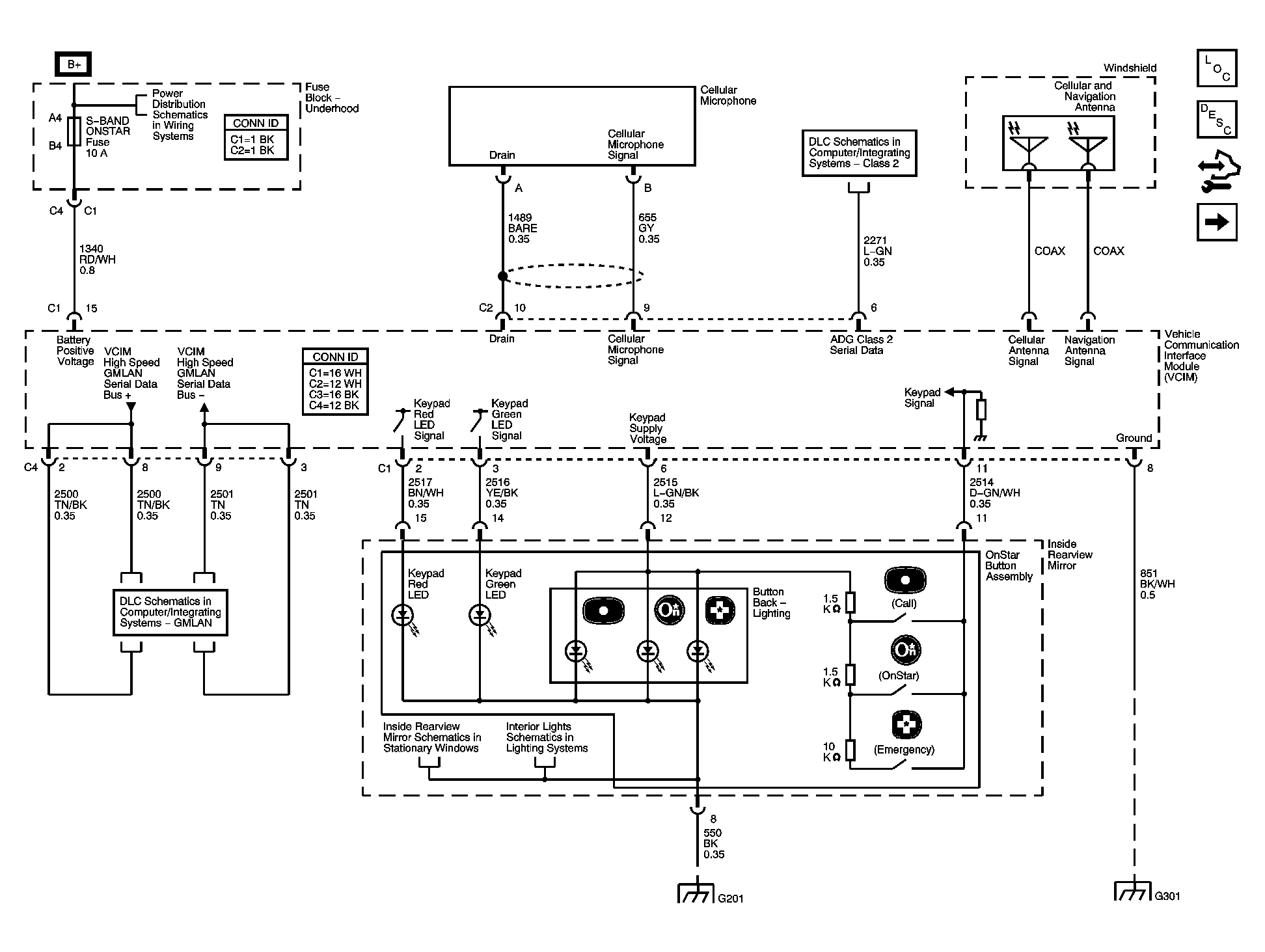

Fig 1: Antenna, DLC, Ground, Power, and User Inputs

GM1583424

Courtesy of GENERAL MOTORS CORP.

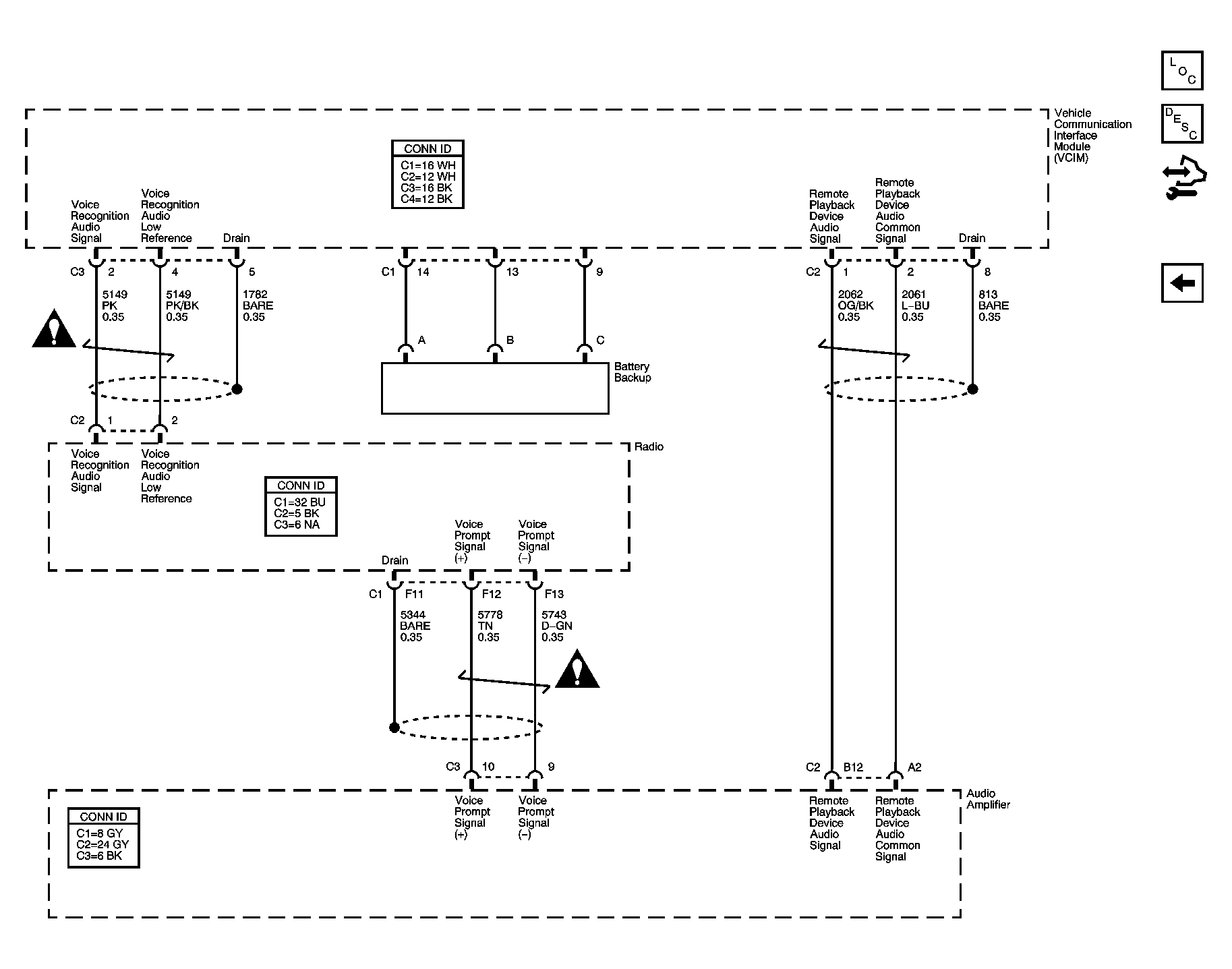

Fig 2: Audio Output

GM1583425

Courtesy of GENERAL MOTORS CORP.
