Latch Replacement - Instrument Panel (I/P) Compartment
Latch Replacement - Instrument Panel (I/P) Compartment

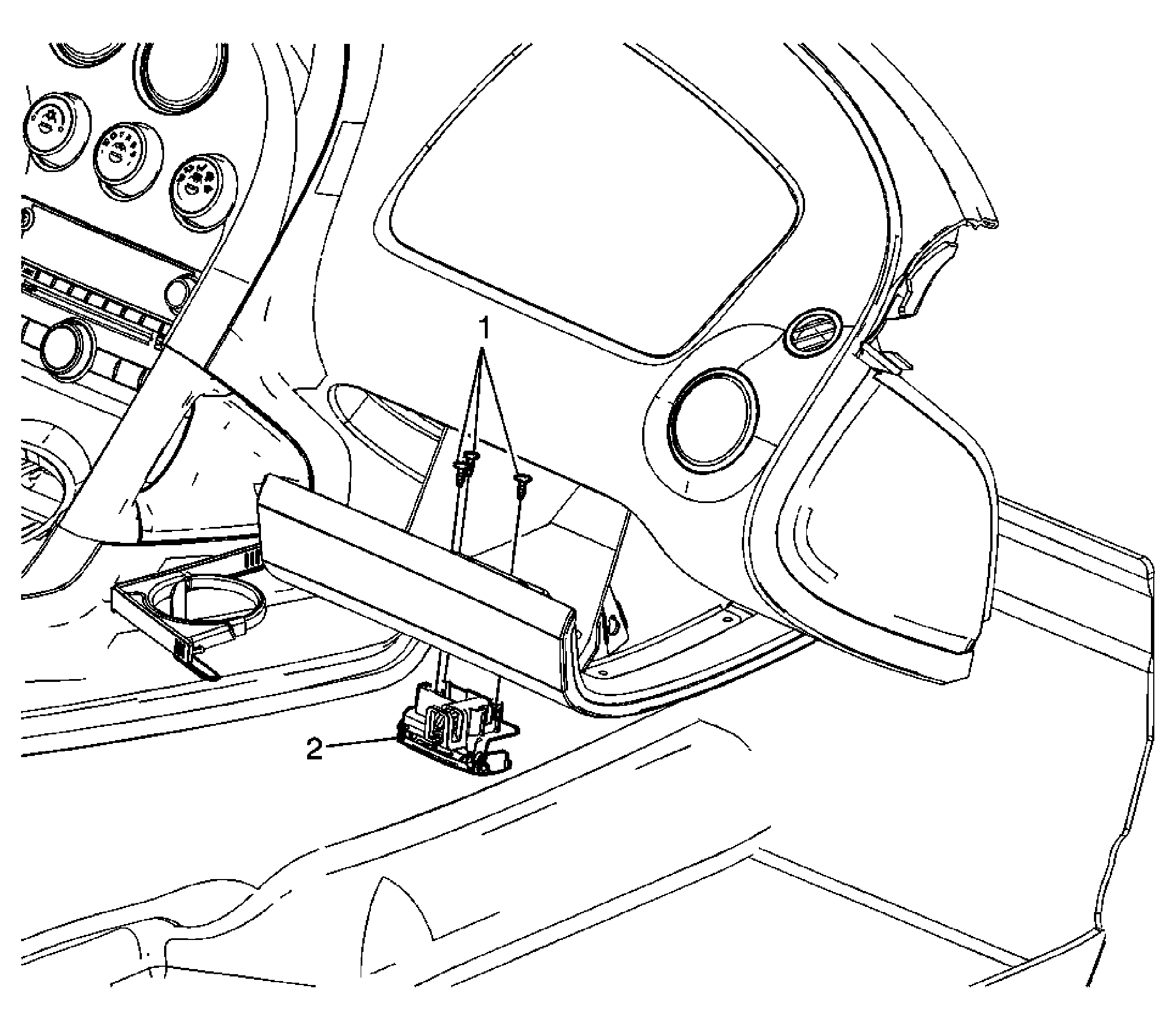

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
. |
|
| 1 | Screw, Instrument Panel Compartment Latch (Qty: 3) Tighten: 2 N.m (18 lb ft) |
| 2 | Latch Assembly, Instrument Panel Compartment |
