Closeout/Insulator Panel Replacement - Right

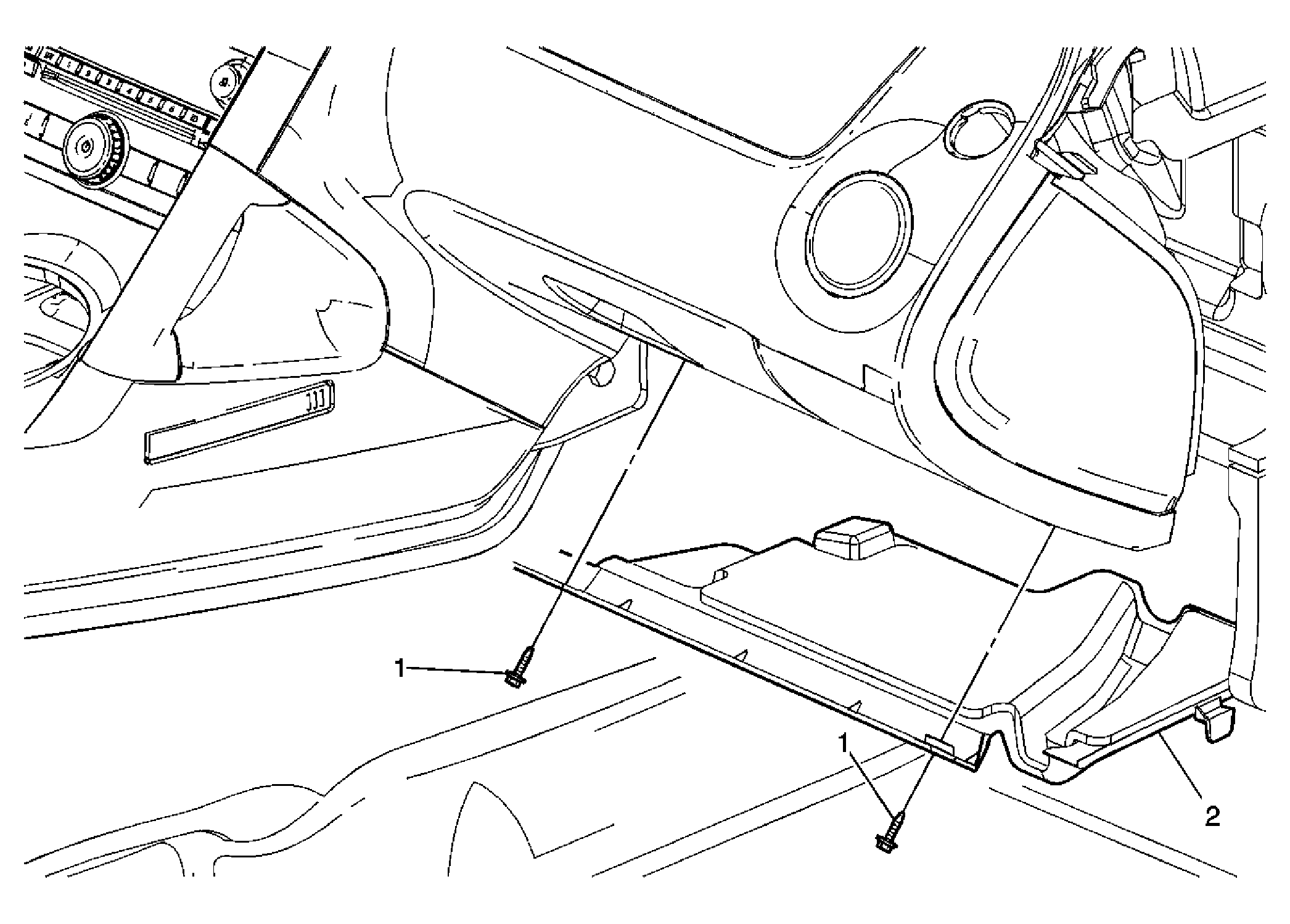

Fig 1: Closeout/Insulator Panel - Right

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Screw, Instrument Panel Insulator Assembly (Qty: 2) Tighten: 2 N.m (18 lb ft)
2	Insulator Assembly, Instrument Panel - Right
