Instrument Panel, Gages, and Console Component Views

Fig 1: I/P Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Switch
2	Ambient Light Sensor
3	Inflatable Restraint Passenger Airbag On/Off Indicator
4	Fog Lamp Switch
5	I/P Dimmer Switch
6	Traction Control Switch
7	HVAC Control Module
8	Inflatable Restraint I/P Module
9	Rear Compartment Lid Release Switch
10	Radio/Navigation Unit
11	Park Brake Lever
12	Cigar Lighter
13	Steering Wheel-Radio Controls
14	Steering Wheel-HVAC Controls
15	Inflatable Restraint Steering Wheel Module
16	Instrument Panel Cluster (IPC)

Fig 2: Left Side of Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Throttle Body
2	Manifold Absolute Pressure (MAP) Sensor
3	Camshaft Position (CMP) Sensor 1 (Intake)
4	Engine Harness
5	C175 Engine Harness to Automatic Transmission Harness
6	Crankshaft Position (CKP) Sensor
7	Engine Oil Pressure (EOP) Sensor
8	Starter
9	Knock Sensor Pigtail Connector
10	Generator
11	Fuel Injector Rail

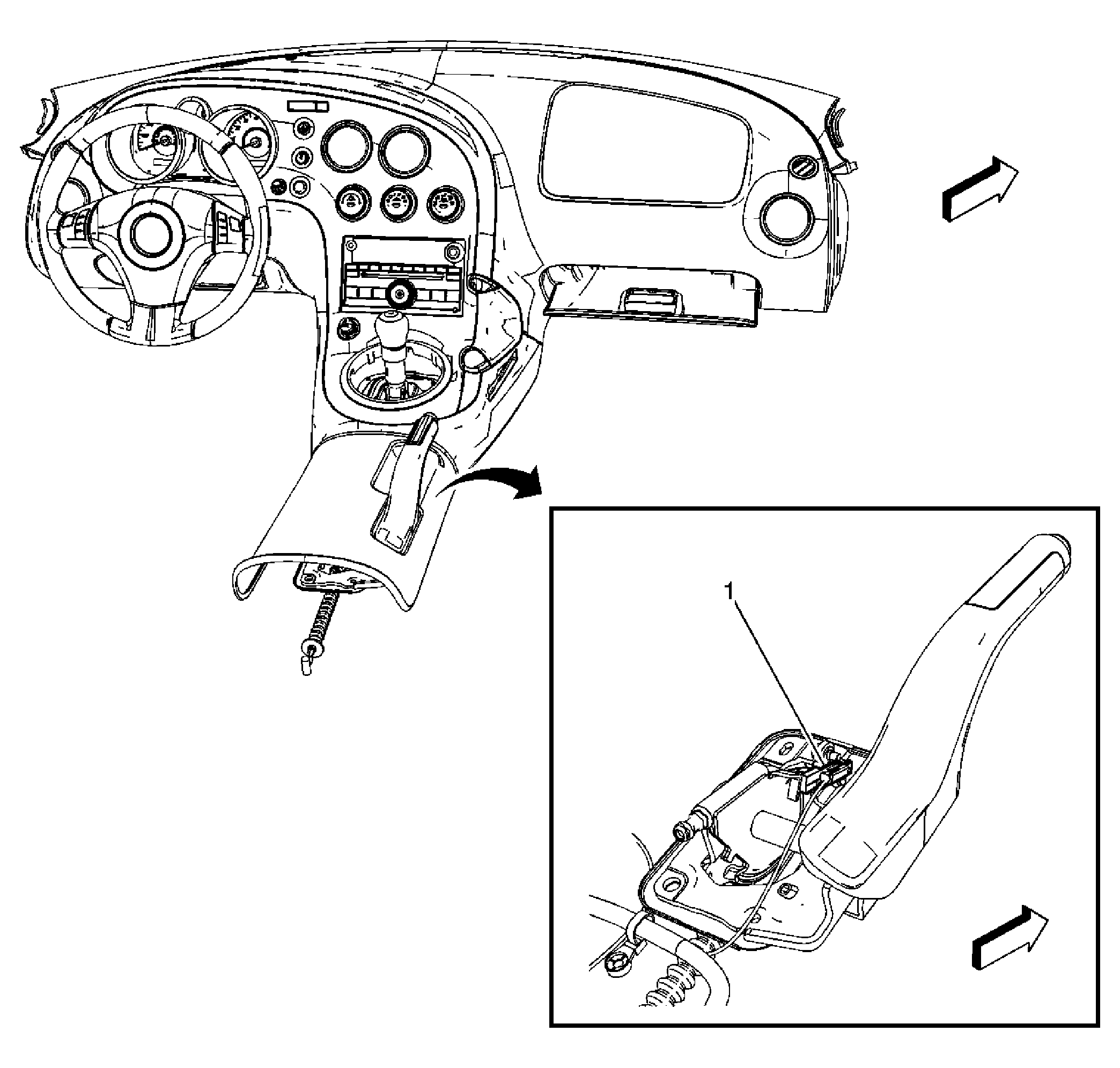

Fig 3: Floor Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Release Switch
