Fender, Fender Insulator, Wheelhouse Liner Replacement - Front

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

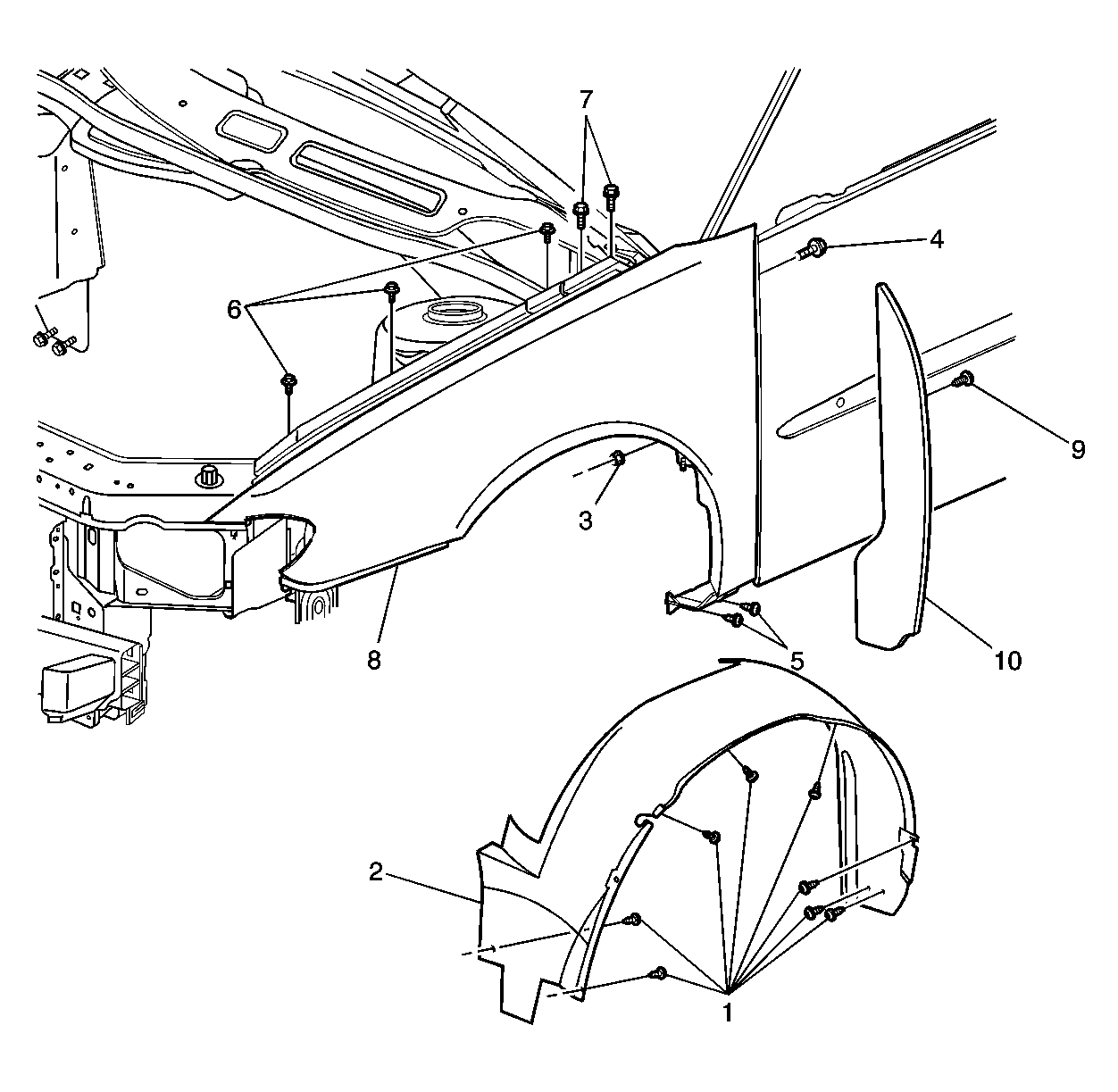

Fig 1: Fender, Fender Insulator & Wheelhouse Liner - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Front Wheelhouse Liner Replacement - Front Preliminary Procedures Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
1	Retainer, Front Wheel House Liner (Qty: 10)
2	Liner, Front Wheelhouse
Fender Assembly Replacement Preliminary Procedures Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels. Remove the rocker panel molding. Refer to Molding Replacement - Rocker Panel .
1	Retainer, Front Wheel House Liner (Qty: 10)
2	Liner, Front Wheelhouse
3	Nut, Front Fender (Qty 2) Tighten: 8 N.m (70 lb in)
4	Bolt, Fender (Qty: 1) Tighten: 8 N.m (70 lb in)
5	Bolt, Fender (Qty: 2) Tighten: 8 N.m (70 lb in)
6	Bolt, Fender (Qty: 3) Tighten: 8 N.m (70 lb in)
7	Bolt, Fender to Hood Hinge (Qty: 2) Tighten: 25 N.m (18 lb ft)
8	Fender Assembly
Front Fender Insulator Assembly Replacement
9	Retainer, Front Fender Insulator (Qty: 2)
10	Insulator Assembly, Front Fender
