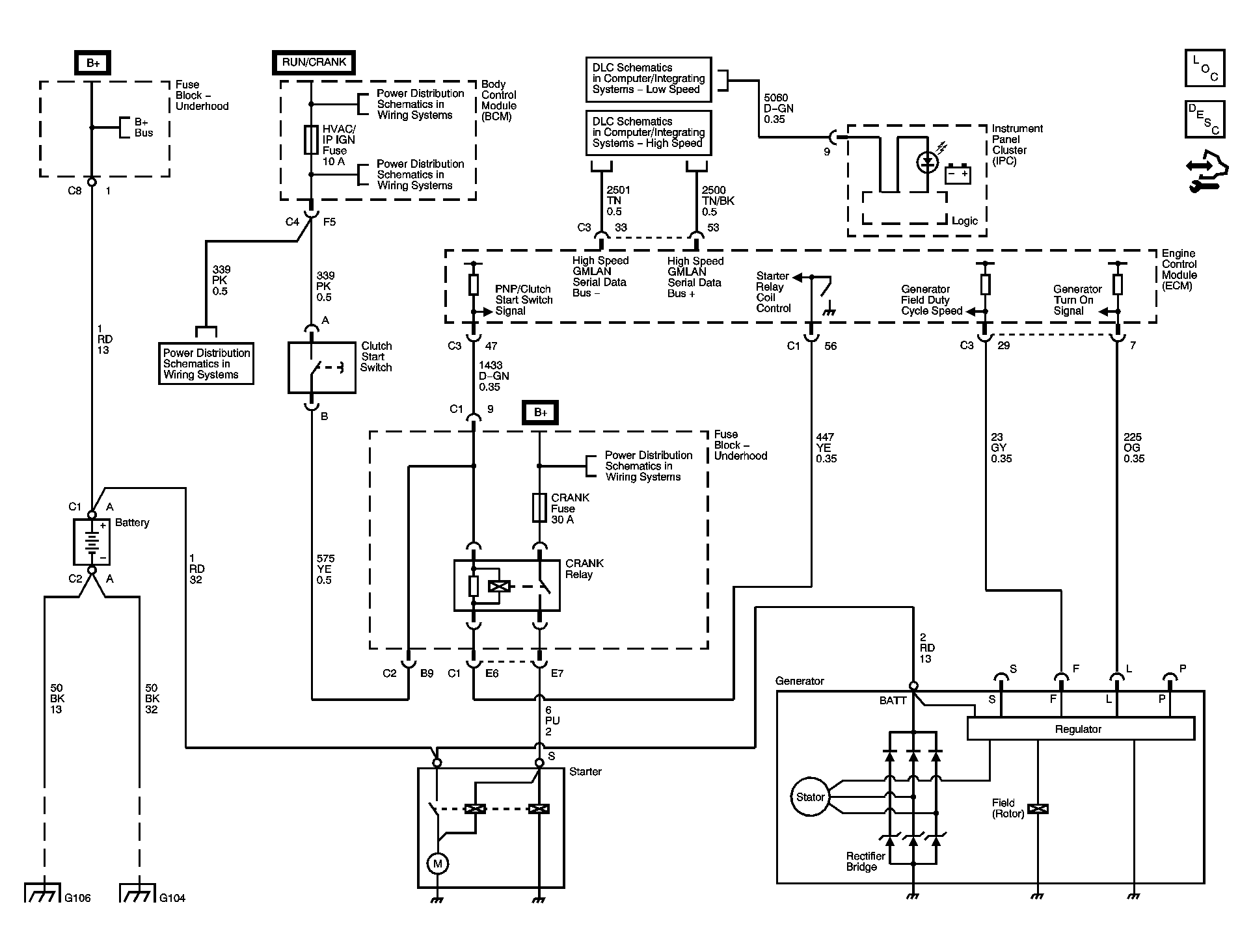

Home >> Pontiac >> 2006 >> Solstice Automatic >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Battery, Charging System & Starting System >> Schematic and Routing Diagrams >> Starting and Charging Schematics
