Engine Cooling Schematics

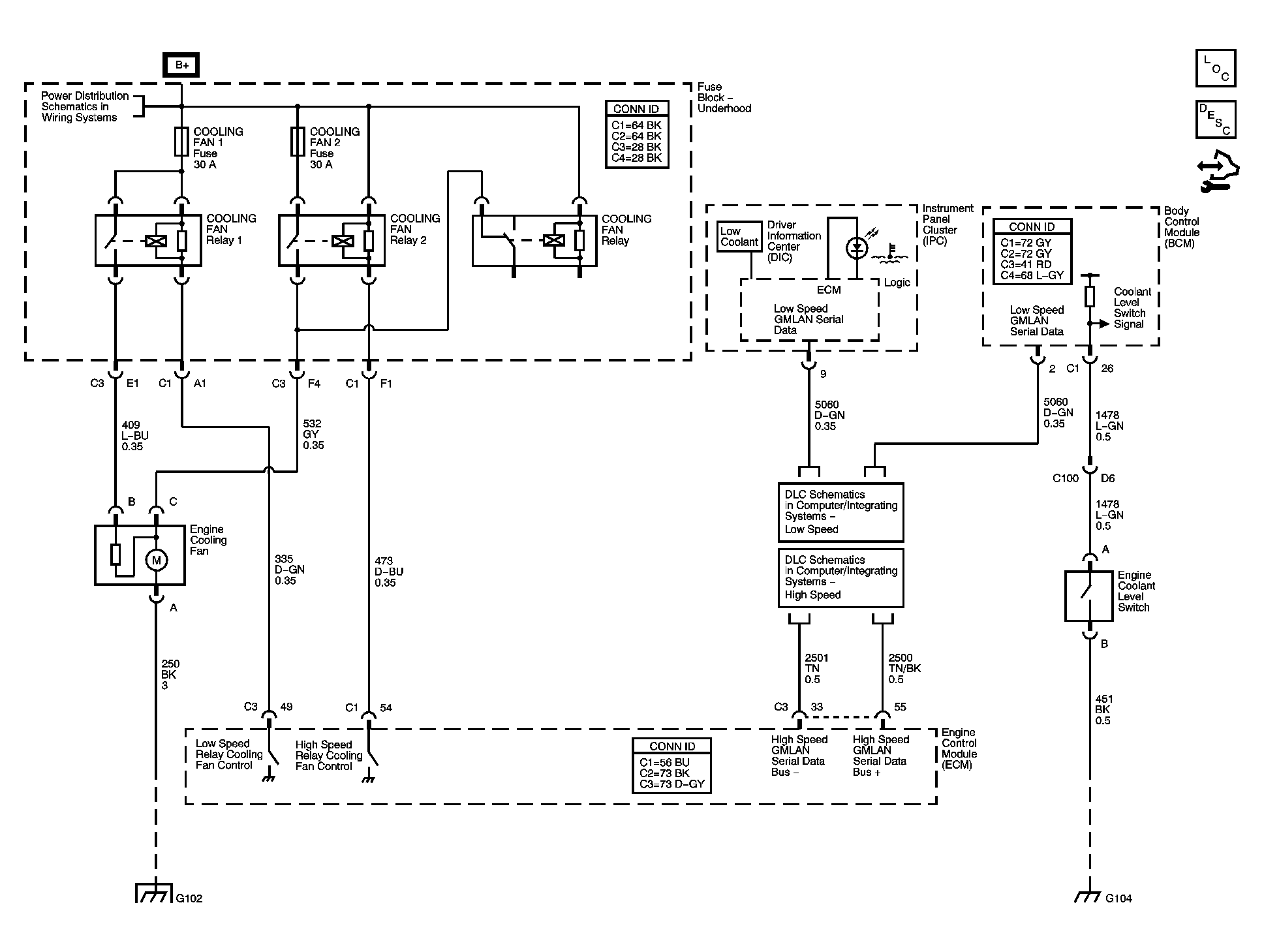

Fig 1: Engine Cooling Schematic

GM1576871

Courtesy of GENERAL MOTORS CORP.
