Dampener Replacement - I/P Compartment
Dampener Replacement - I/P Compartment

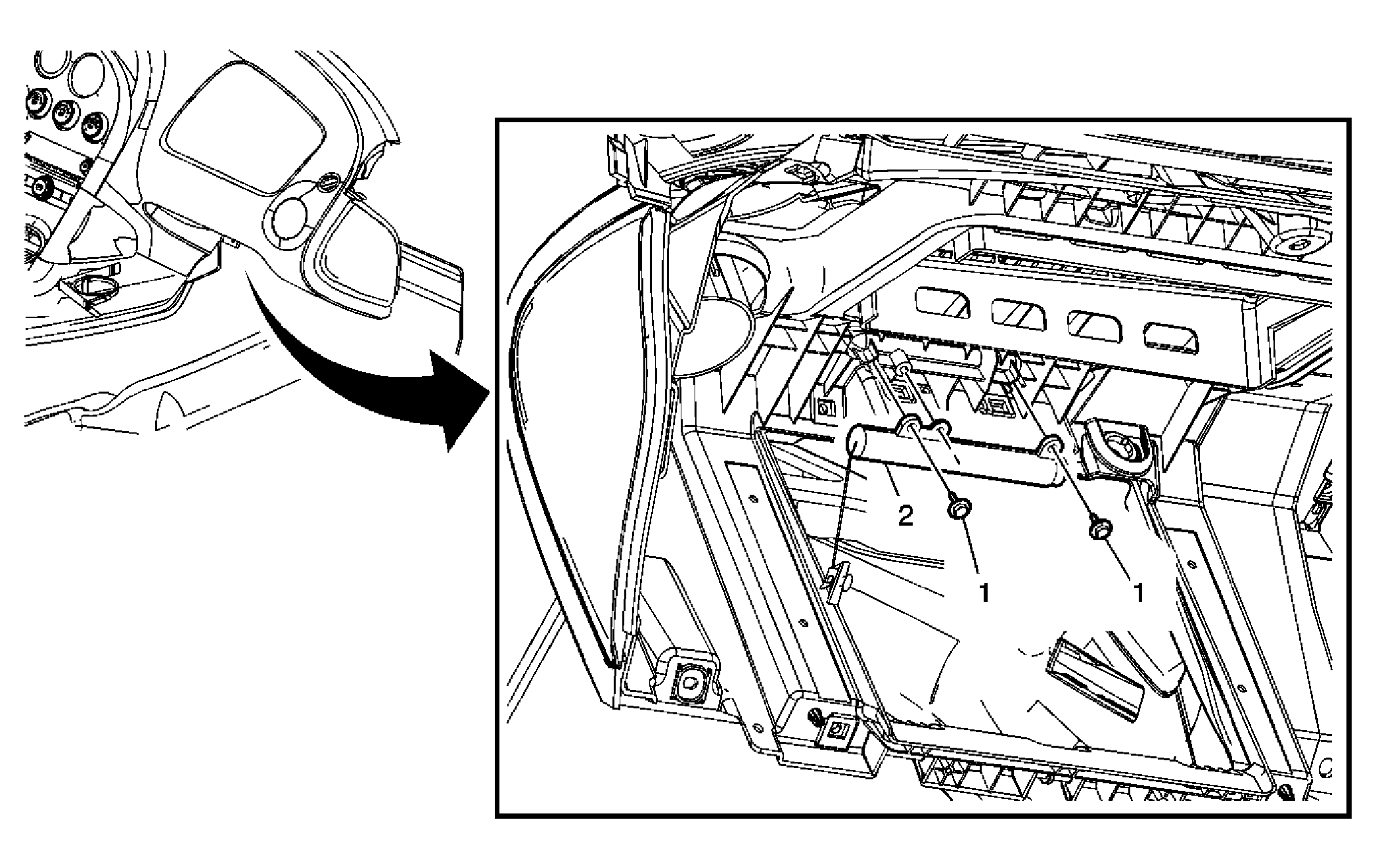

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the instrument panel compartment. Refer to Compartment Replacement - Instrument Panel (I/P) . |
|
| 1 | Screw, Instrument Panel Compartment (Qty: 4) Tighten: 2 N.m (18 lb in) |
| 2 | Damper, Instrument Panel Compartment |
