HVAC Schematics

Fig 1: Blower Controls Schematic

GM1424563

Courtesy of GENERAL MOTORS CORP.

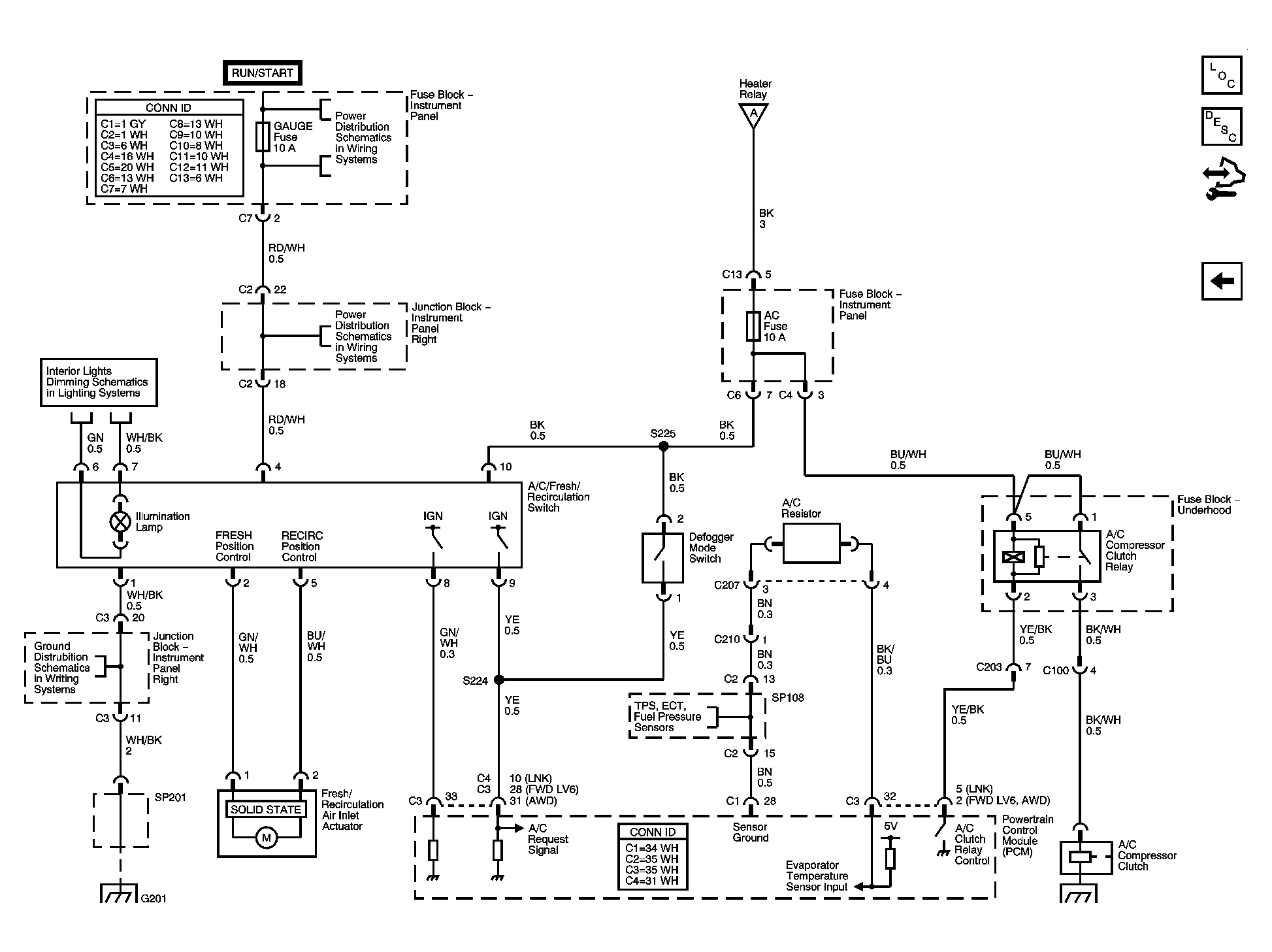

Fig 2: A/C Compressor Controls Schematic

GM1424564

Courtesy of GENERAL MOTORS CORP.
