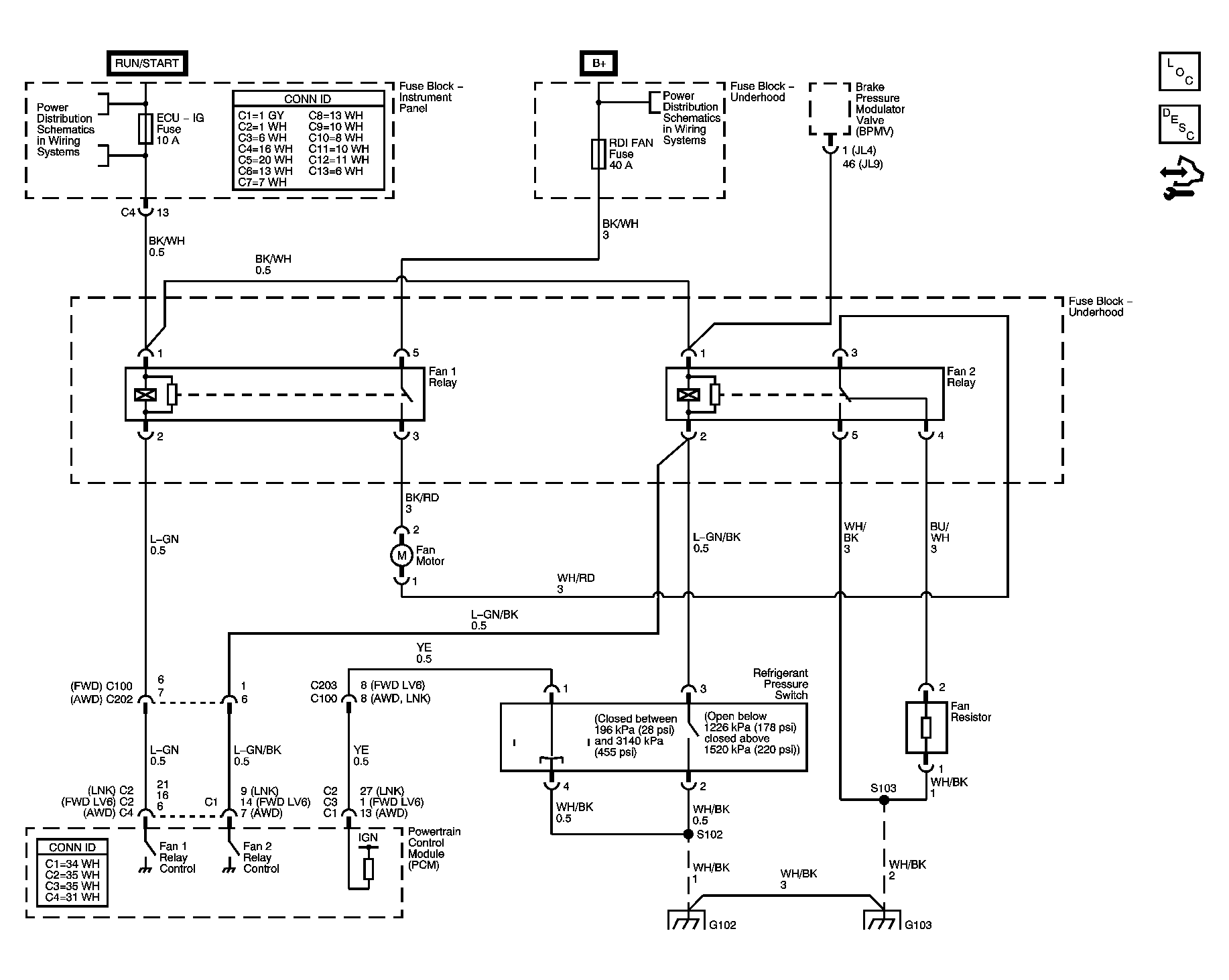

Home >> Pontiac >> 2005 >> Vibe Base, FWD, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System >> Schematic and Routing Diagrams >> Engine Cooling Schematics
