Power Distribution Schematics

Fig 1: Air Pump, ETCS, Head, Alt S, EFI, Hazard and EFI 2 Fuses Power Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

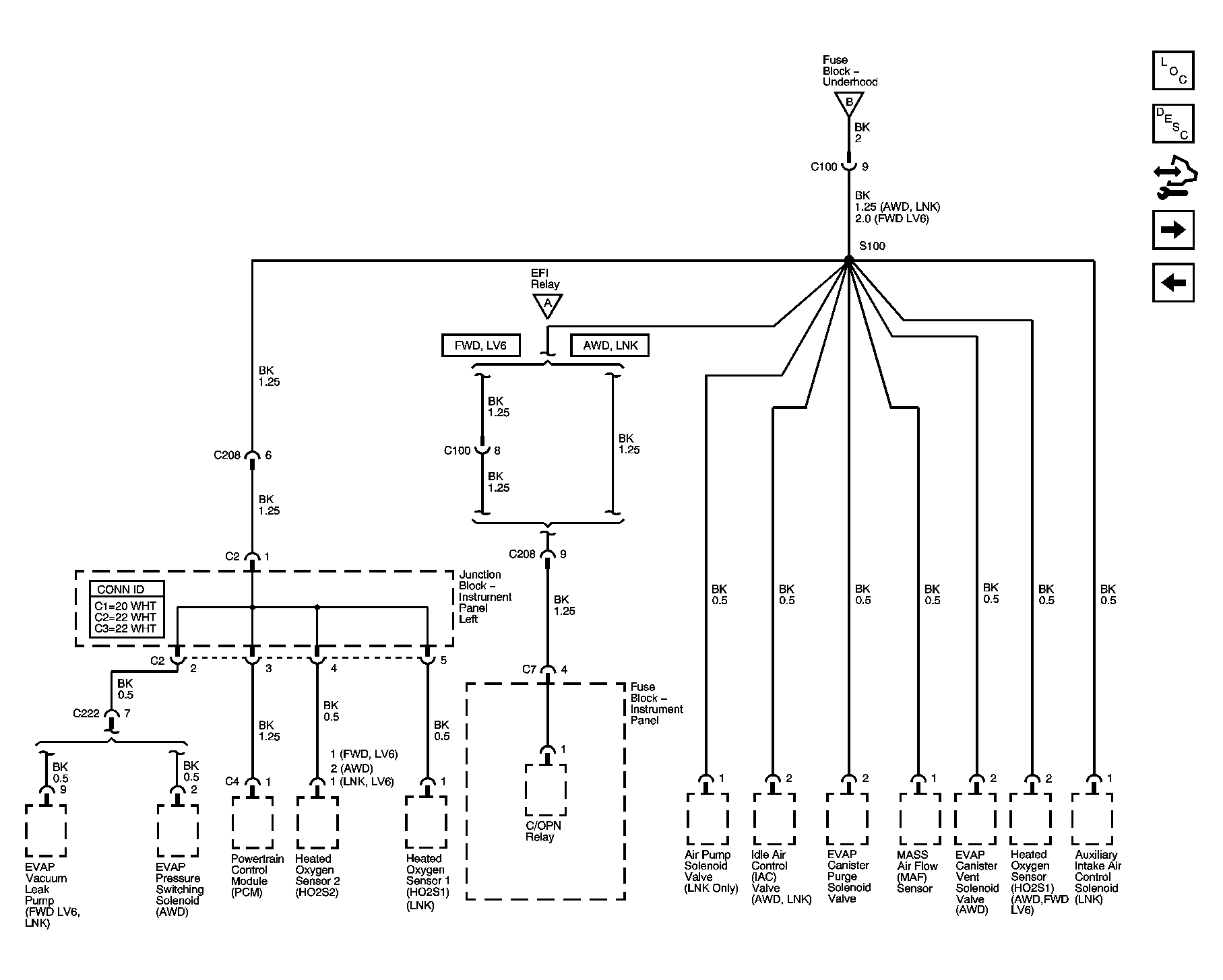

Fig 2: S100 Power Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Horn, Dome, Main, Amp and Onstar Fuses Power Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Alt, ABS 1 and 2, RDI Fan and Fog Fuses Power Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Power, AM 1, Door, Tail, P/Point, ECU-B, Stop, OBD and INV Fuses Power Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Wash, RR Wip, Wiper, ECU-IG, Gauge, Heater and DEF Fuses Power Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: P/W Relay, SP109 and S230 Power Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: Junction Block - Instrument Panel Right Power Distribution Schematic

Courtesy of GENERAL MOTORS CORP.

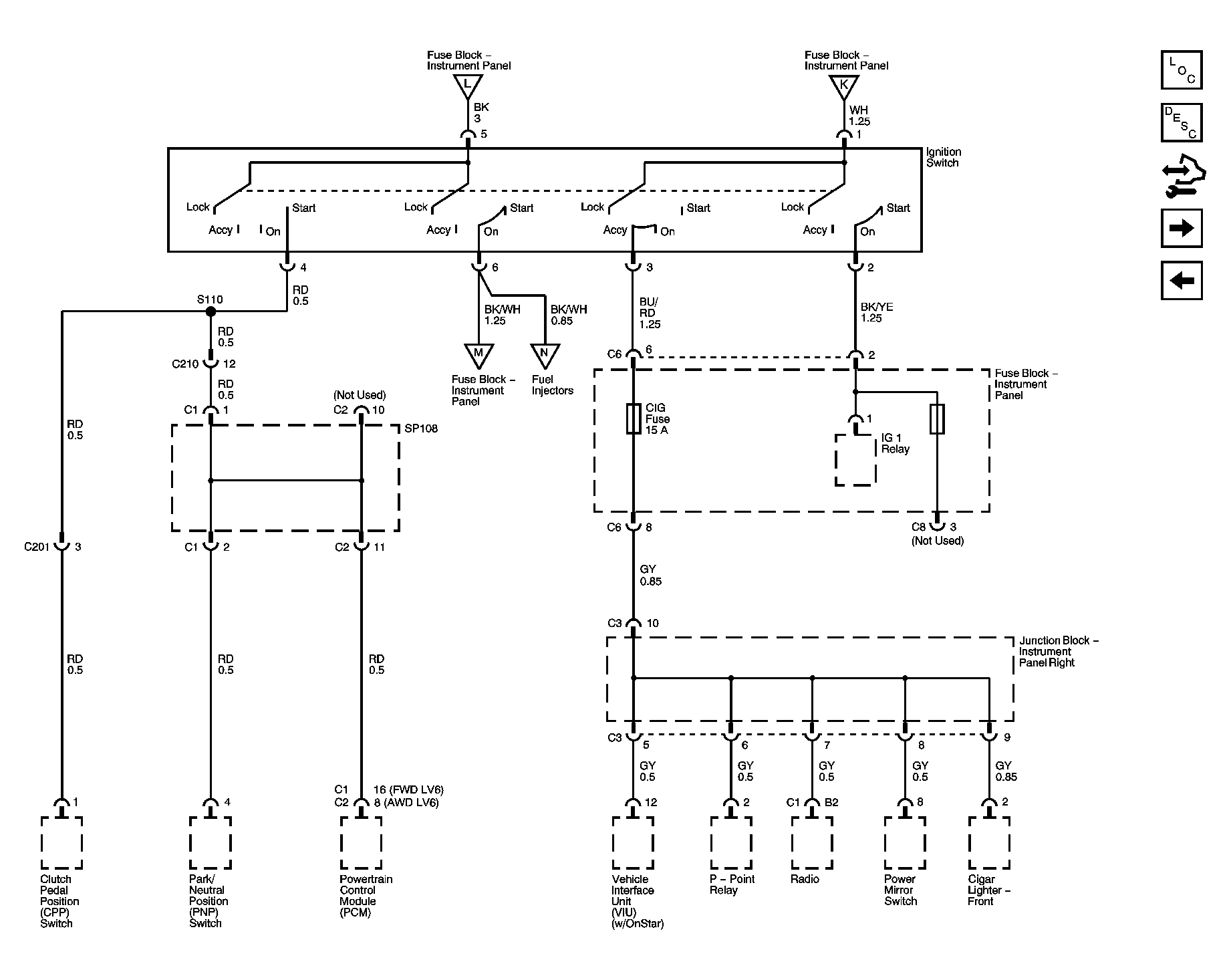

Fig 9: Ignition Switch Power Distribution Schematic - 1 of 2

Courtesy of GENERAL MOTORS CORP.

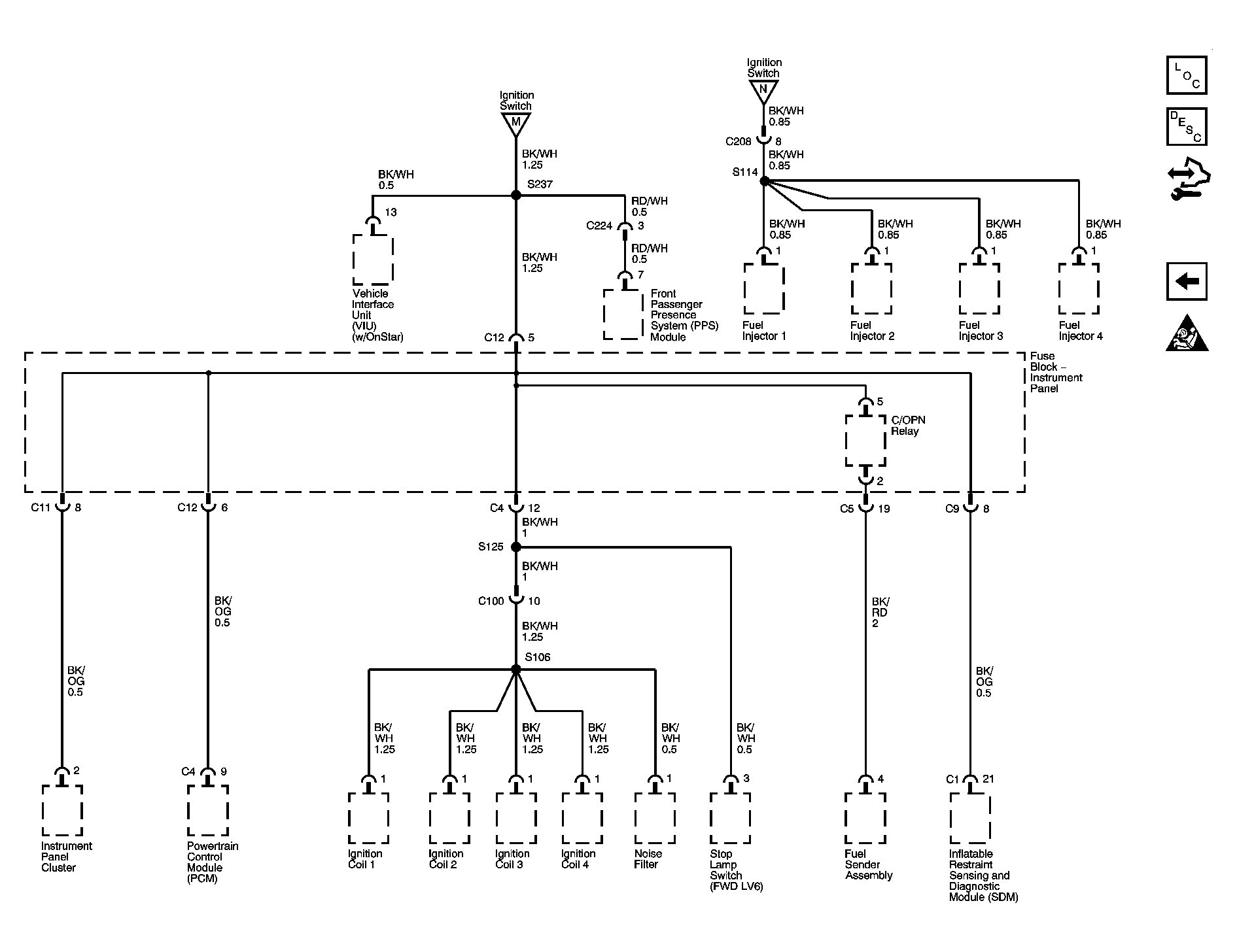

Fig 10: Ignition Switch Power Distribution Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.
