Audible Warnings Schematics

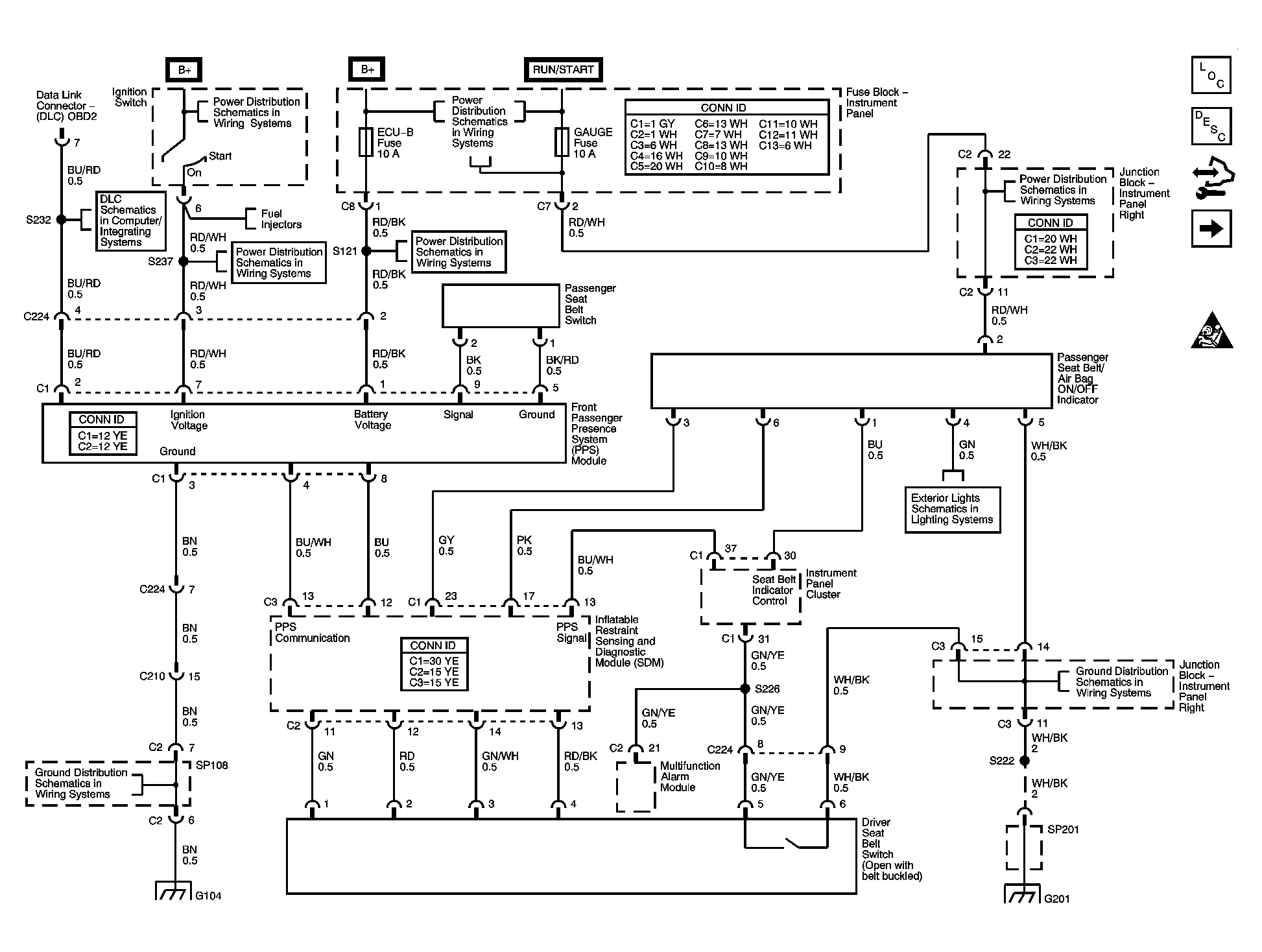

Fig 1: Seat Belt Warning Indicator Schematic
GM1426431Courtesy of GENERAL MOTORS CORP.
Fig 2: Door Open Warning Indicator Schematic
GM1426432Courtesy of GENERAL MOTORS CORP.
Fig 3: Headlamps ON, Ignition Key And Reverse Warning Indicators Schematic
GM1426450Courtesy of GENERAL MOTORS CORP.
