Theft Deterrent System Schematics

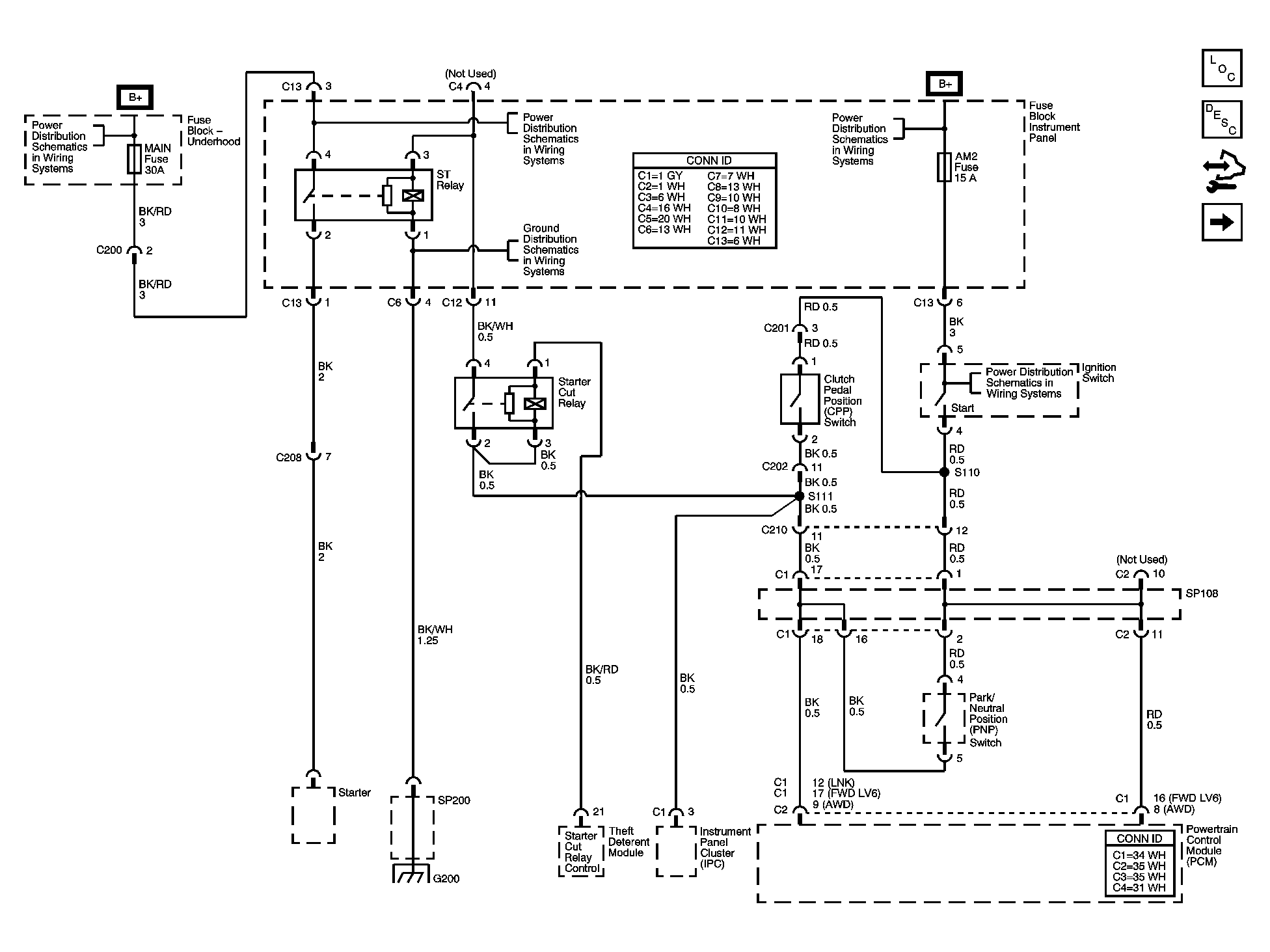

Fig 1: Start Relay, Starter Cut Relay, Theft Deterrent Module and Powertrain Control Module (PCM) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Theft Deterrent Module, Glass Breakage Sensor and Security Indicator Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Remote Control Door Lock Receiver, Multifunction Alarm Module Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Multifunction Alarm Module, Rear Door Lock, Tailgate and Glass Hatch Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Multifunction Alarm Module, Rear Door Lock, Glass Hatch and Tailgate Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Park/Neutral Position Switch, Brake Pressure Modulator Valve (BPMV) and Multifunction Alarm Module Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: Door Lock Switches and Front Door Lock Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: Multifunction Alarm Module, Horn, Hazard and Turn Signal/Headlamp Switches Schematic

Courtesy of GENERAL MOTORS CORP.
