OnStar® Schematics

Fig 1: Vehicle Communication Interface Module (VCIM) & Inside Rearview Mirror Power and Ground Schematic
GM1424554Courtesy of GENERAL MOTORS CORP.

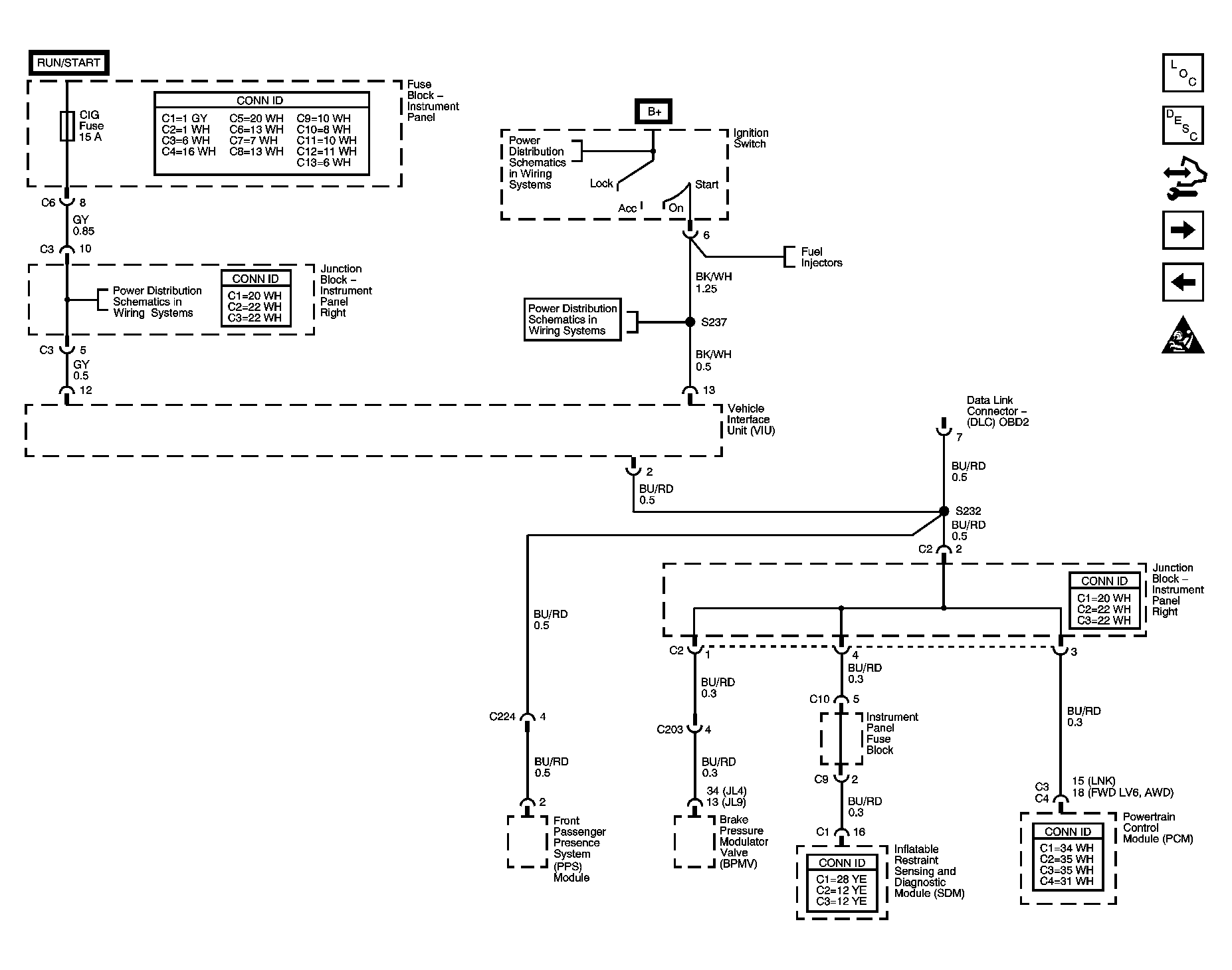

Fig 2: Vehicle Interface Unit (VIU) & Data Link Connector (DLC) Schematic
GM1426729Courtesy of GENERAL MOTORS CORP.
Fig 3: Vehicle Interface Unit (VIU) Schematic
GM1426731Courtesy of GENERAL MOTORS CORP.
