Instrument Cluster Schematics

Fig 1: High Beam Door Open And Engine Coolant Temperature (ECT) Indicators Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Fuel Gage, Seat Belt, Low Fuel And Passenger Seat Belt Indicators Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Low Washer Fluid Level, Oil Pressure Indicators And IPC Illumination Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Charge, Air Bag, Malfunction, O/D OFF And Cruise Indicators Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Brake, ABS And Turn Indicators Schematic

Courtesy of GENERAL MOTORS CORP.

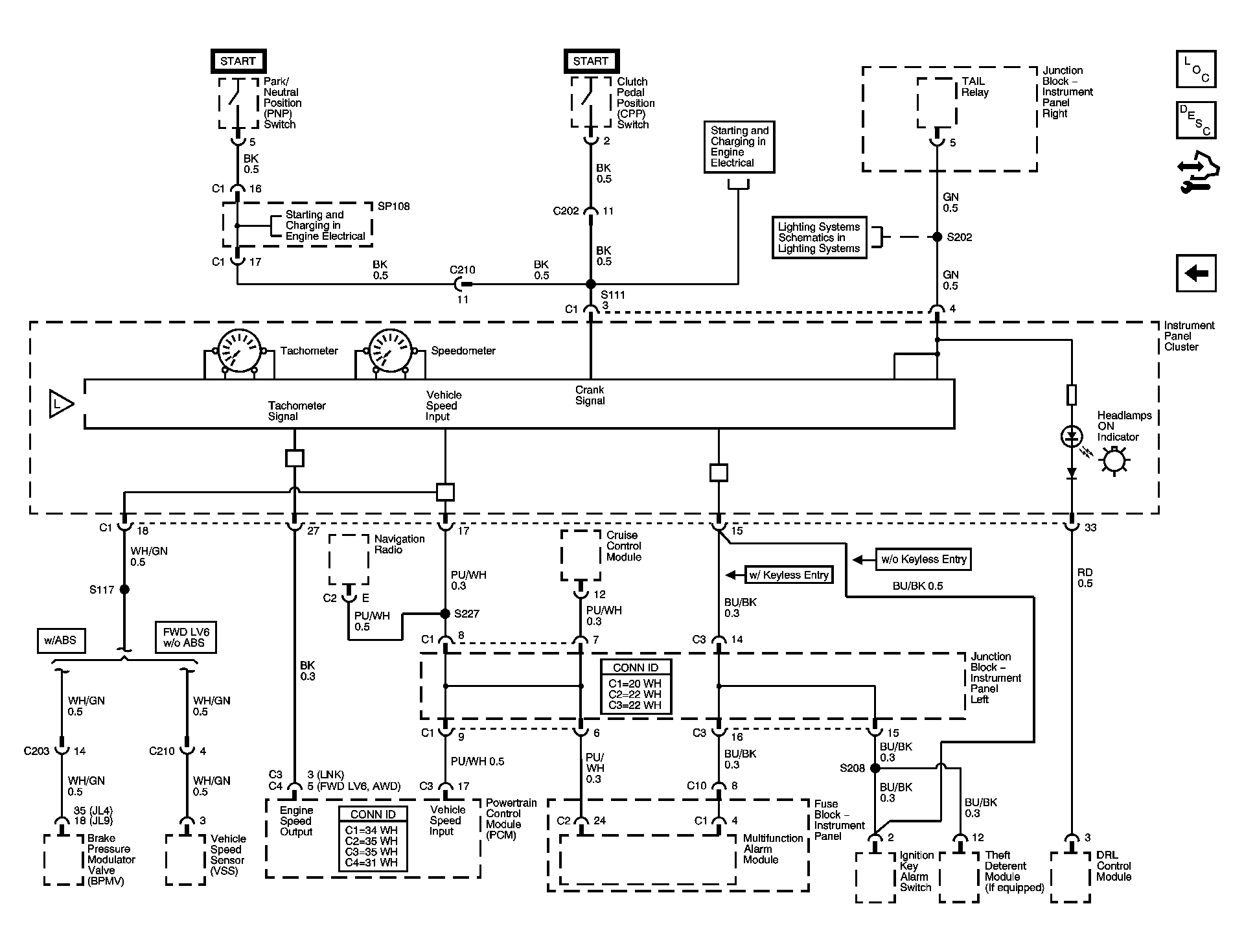

Fig 6: Headlamps ON Indicator, Crank Signal And Vehicle Speed Signal Schematic

Courtesy of GENERAL MOTORS CORP.
