Cruise Control Schematics

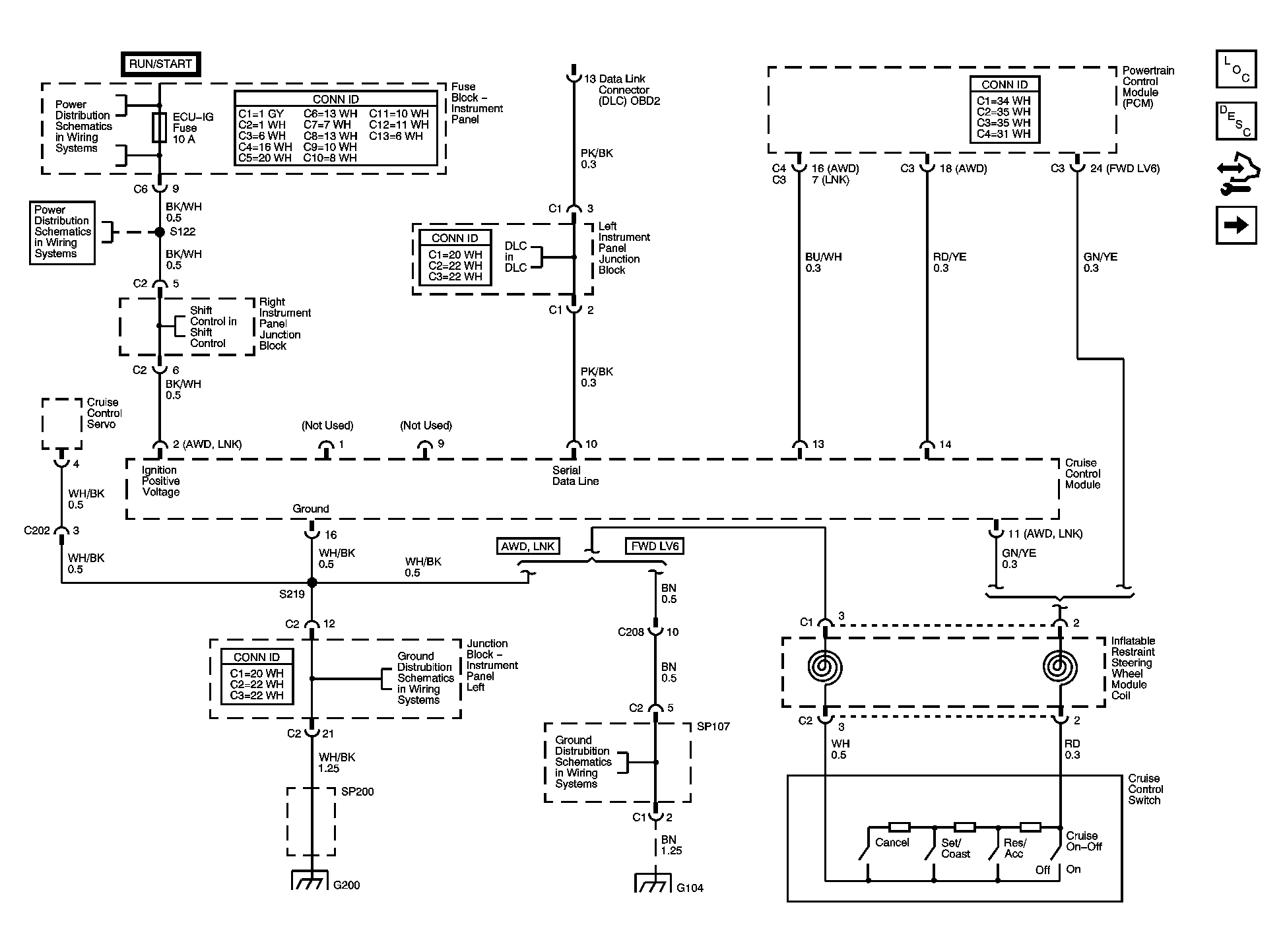

Fig 1: Cruise Control Module and Switch Schematic
GM1424588Courtesy of GENERAL MOTORS CORP.

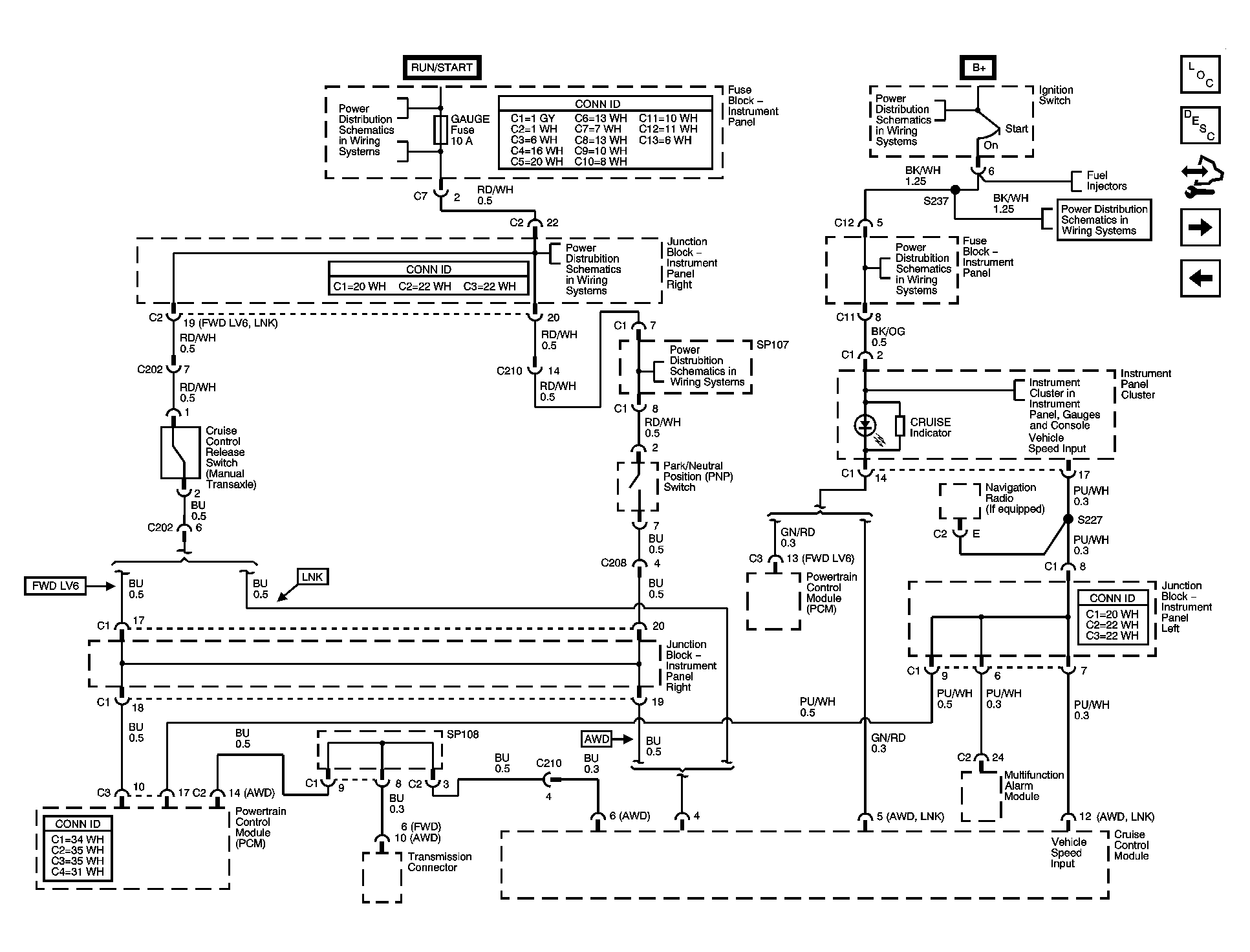

Fig 2: Cruise Control Module, Cruise Control Release Switch, Cruise Indicator Schematic
GM1424590Courtesy of GENERAL MOTORS CORP.
Fig 3: Cruise Control Module and Servo Schematic
GM1424592Courtesy of GENERAL MOTORS CORP.
