Theft Deterrent System Schematics
Theft Deterrent System Schematics

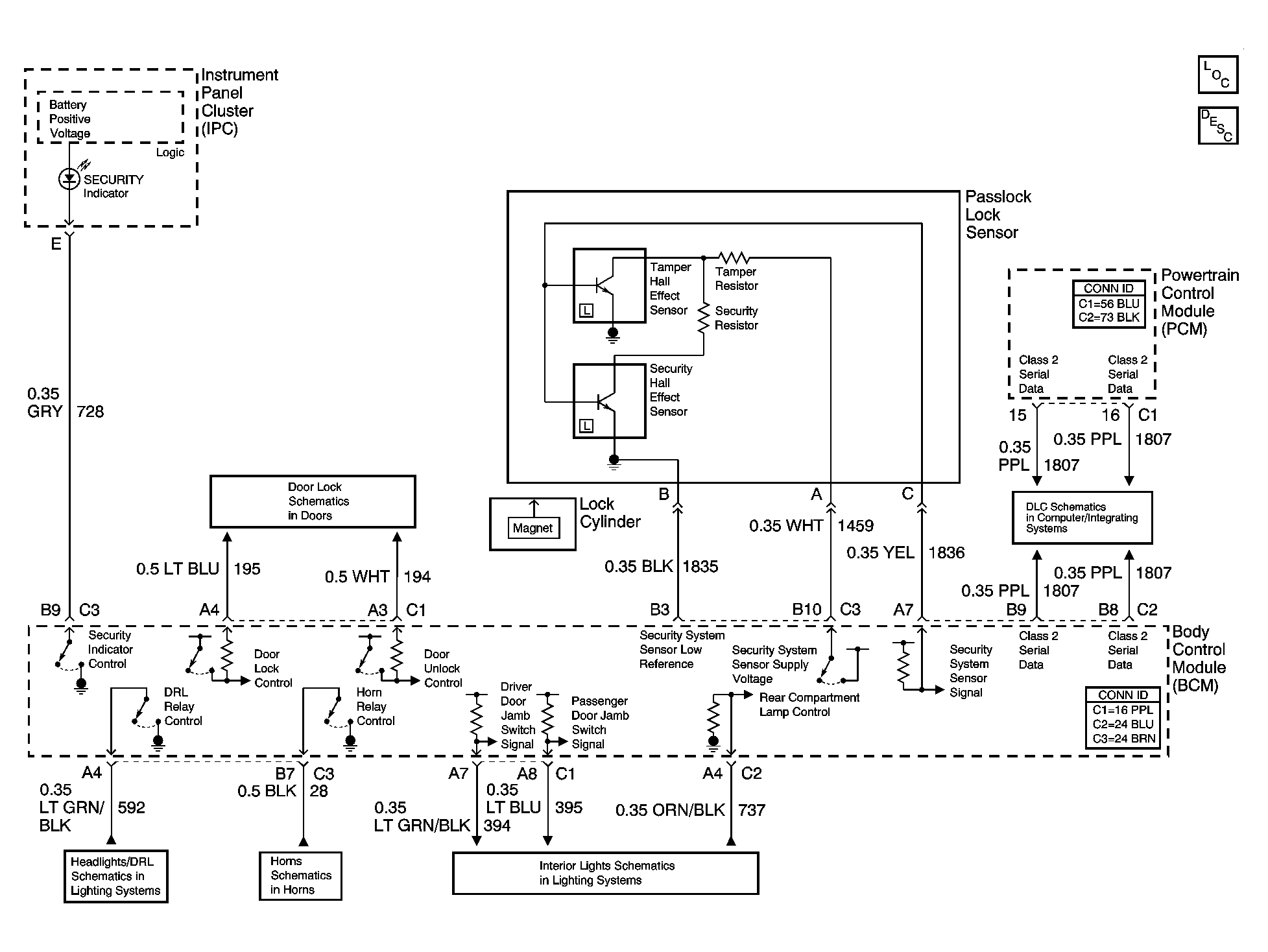

Fig 1: Theft Deterrent System Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
