Interior Lights Schematics

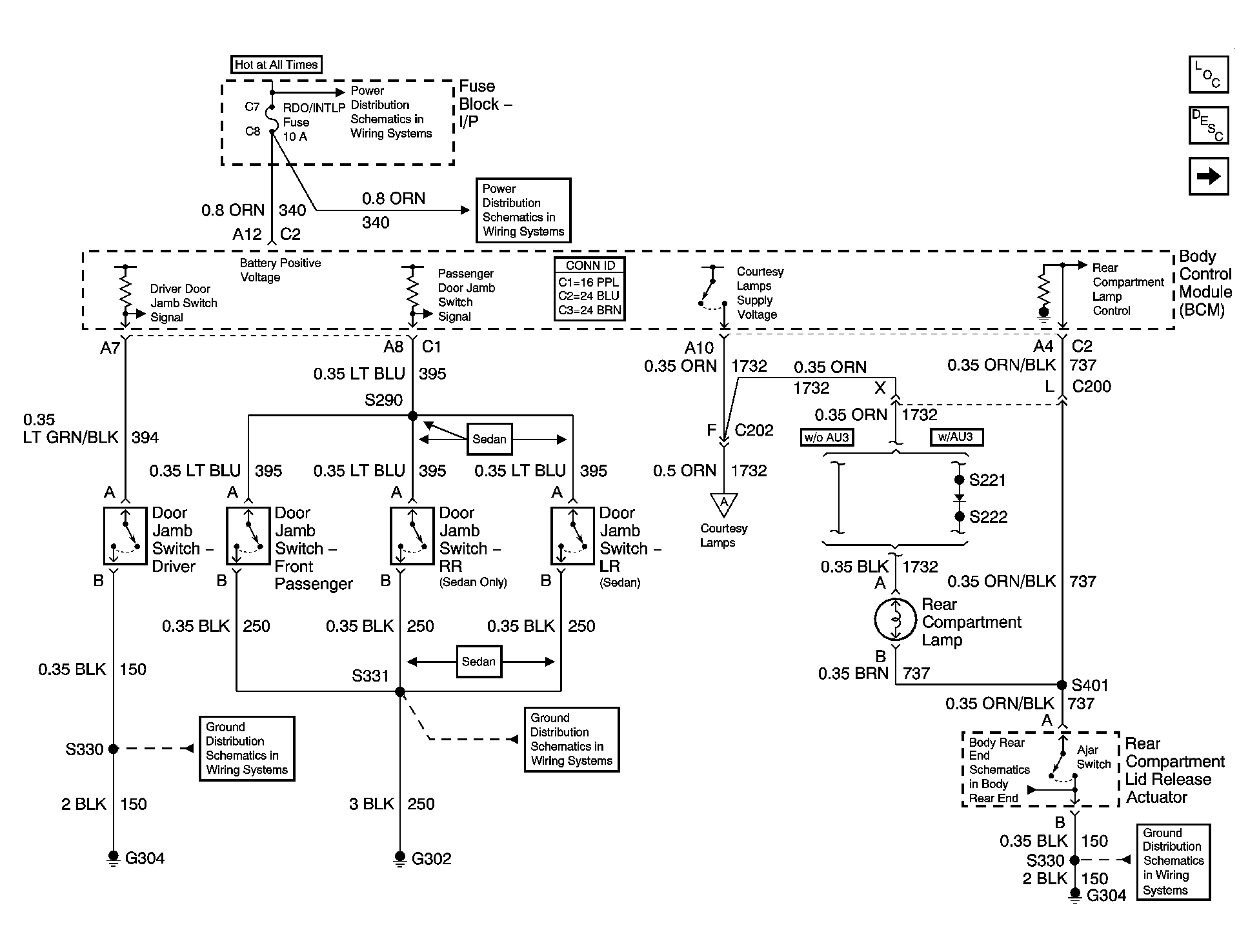

Fig 1: Door Switch Signals and Courtesy Lamps Controls

GM803282

Courtesy of GENERAL MOTORS CORP.

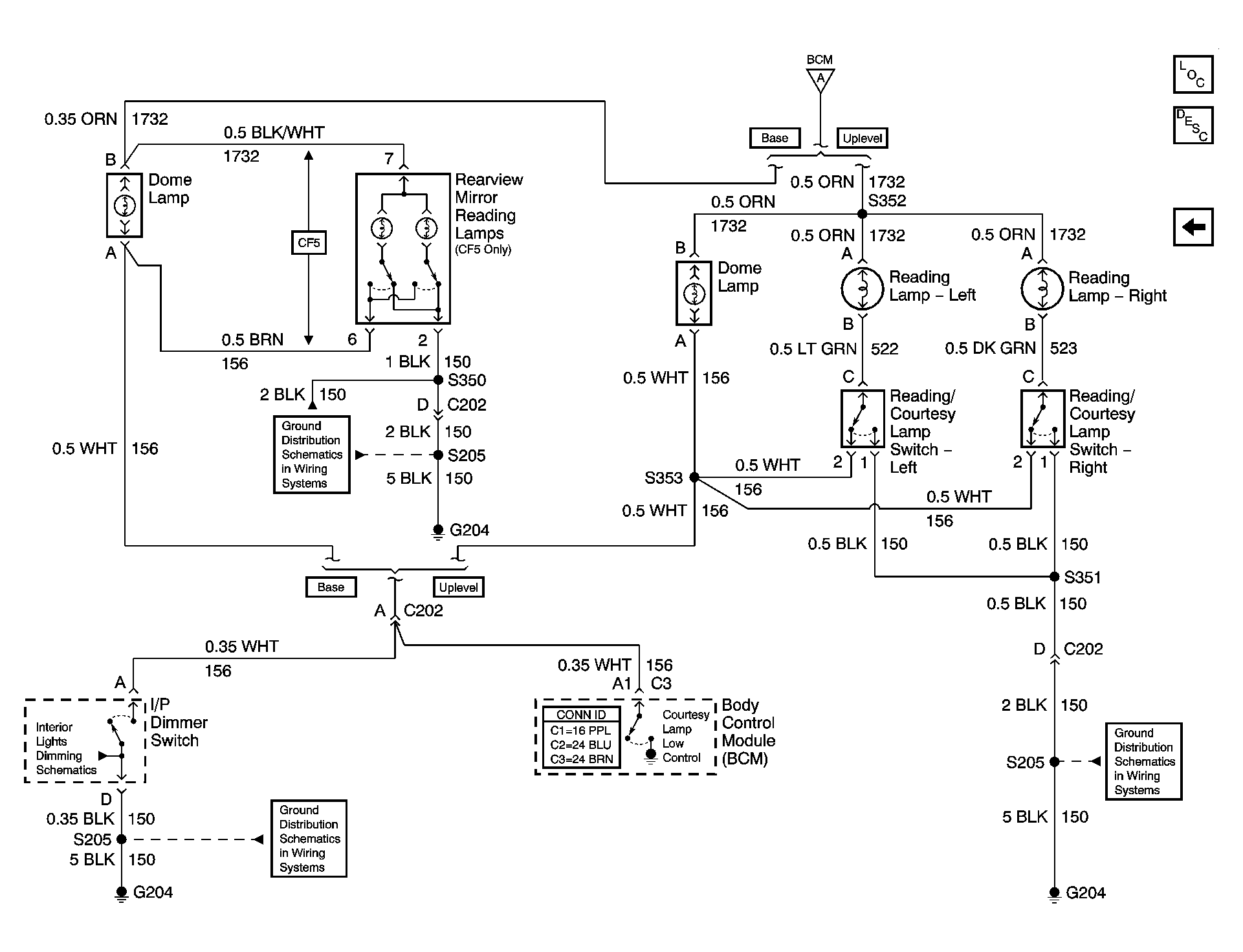

Fig 2: Courtesy/Reading Lamps

GM825283

Courtesy of GENERAL MOTORS CORP.
