Headlights/Daytime Running Lights (DRL) Schematics

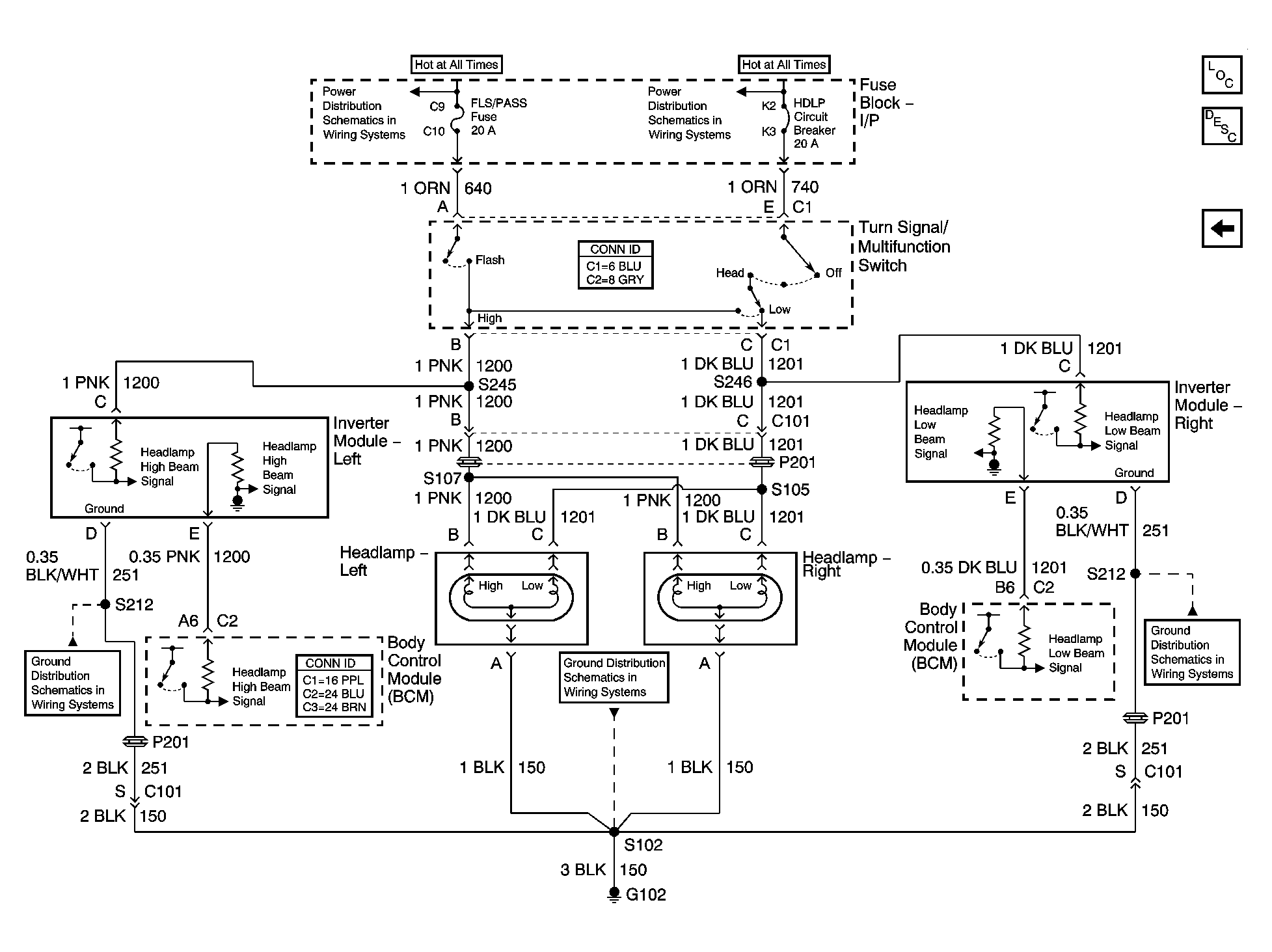

Fig 1: Controls and Indicators - Domestic

Courtesy of GENERAL MOTORS CORP.

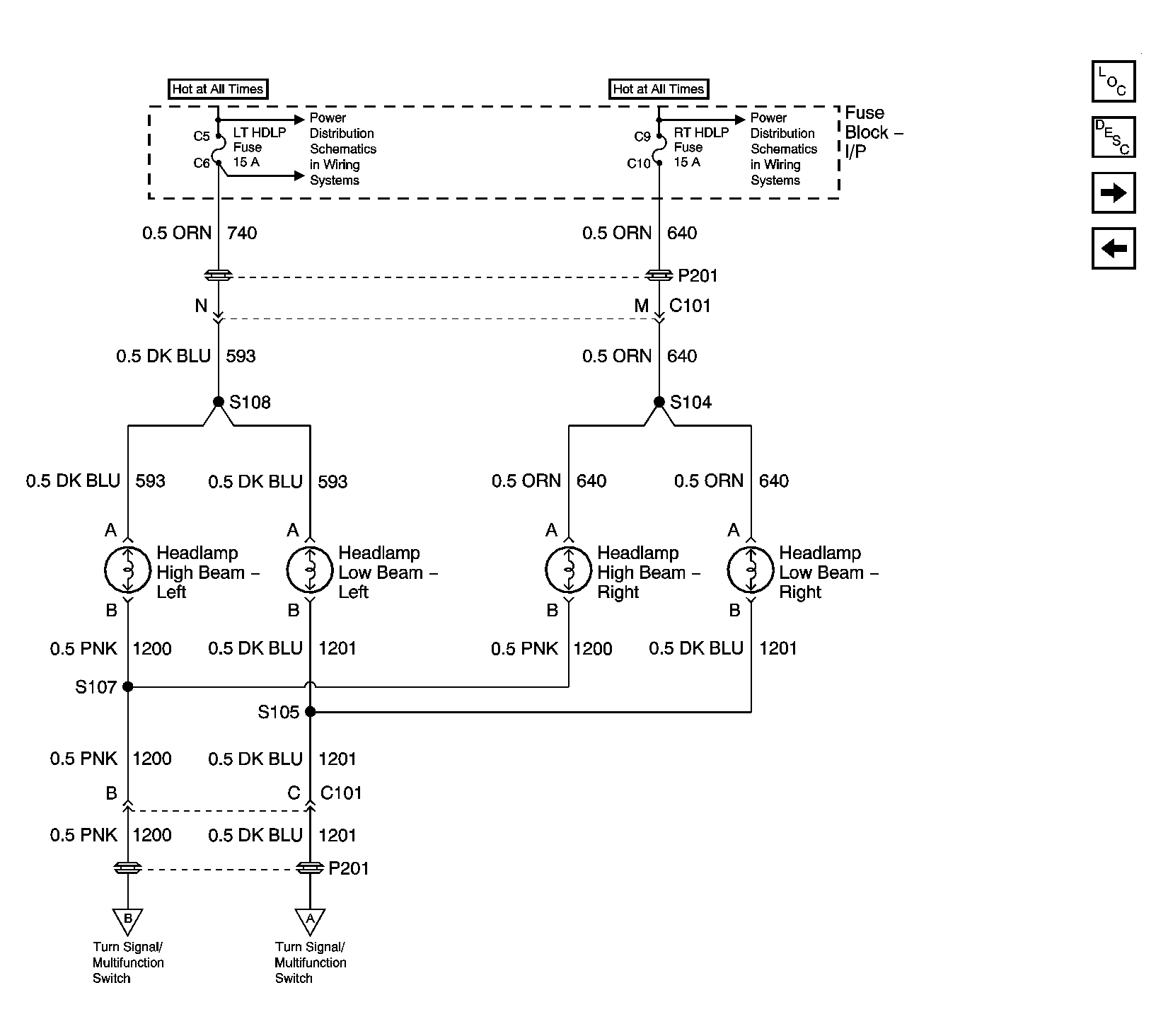

Fig 2: Headlamps - Pontiac

Courtesy of GENERAL MOTORS CORP.

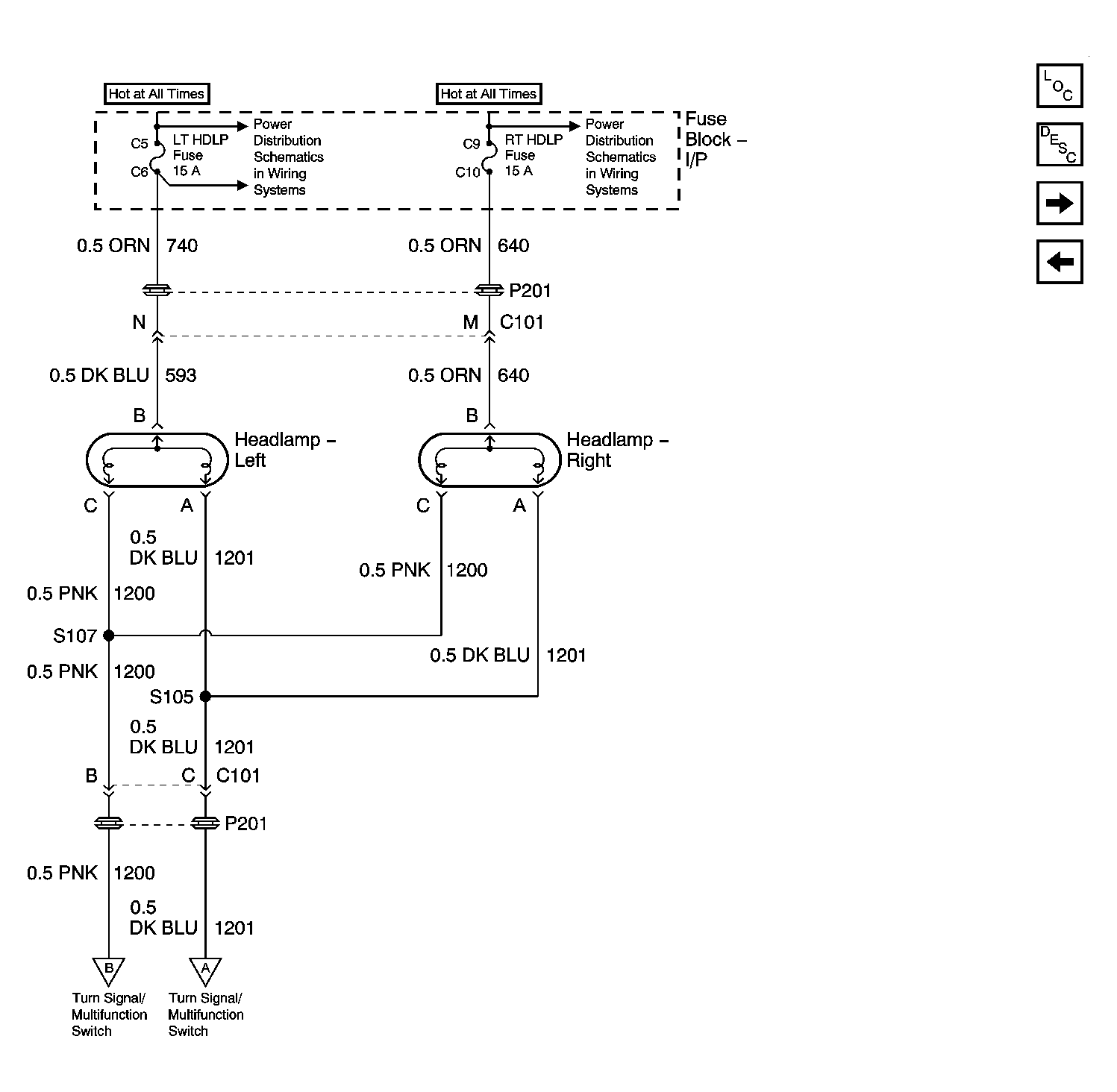

Fig 3: Headlamps - Chevrolet Domestic

Courtesy of GENERAL MOTORS CORP.

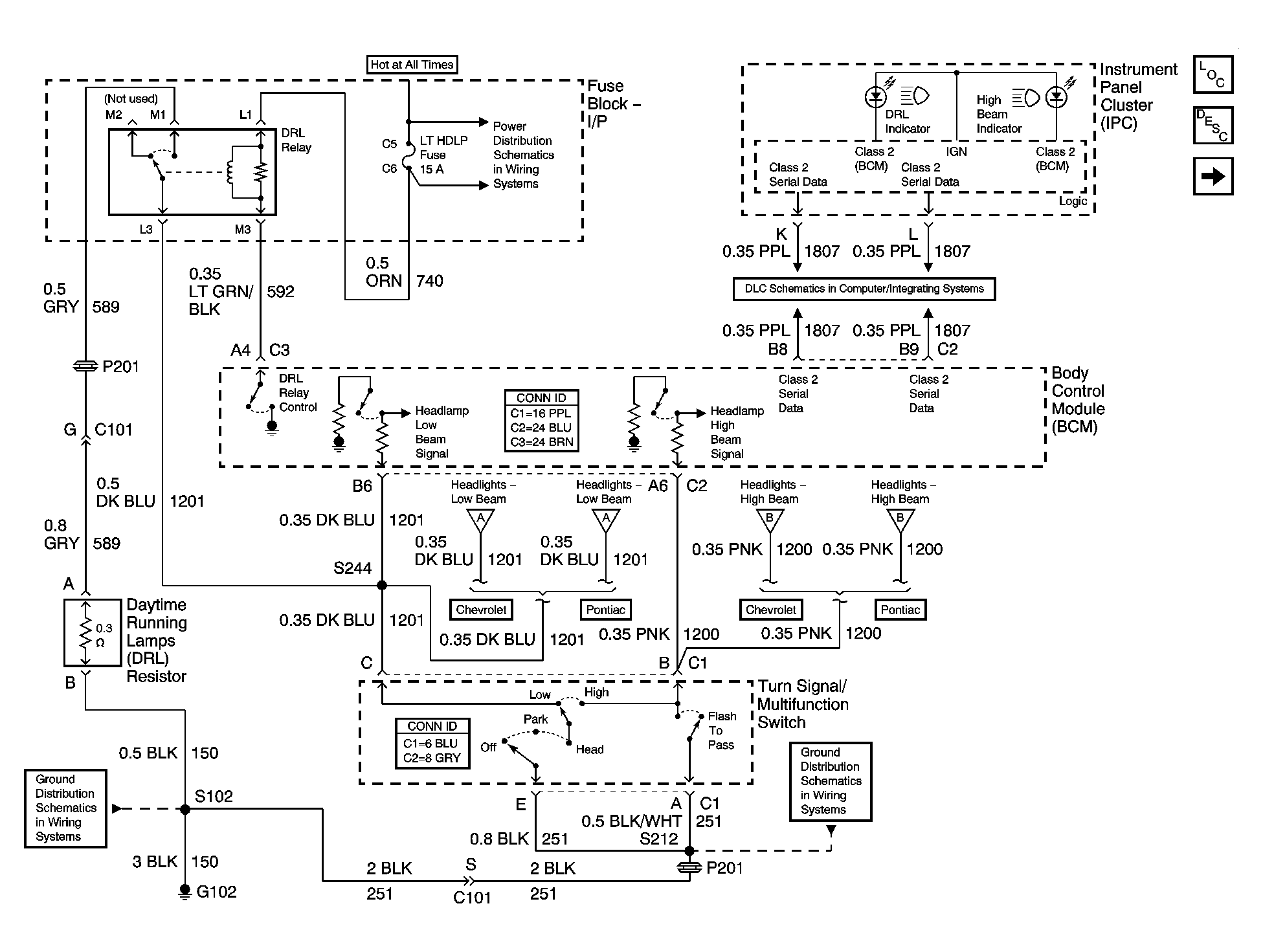

Fig 4: Export Headlamps and Indicators

Courtesy of GENERAL MOTORS CORP.
