Exterior Lights Schematics

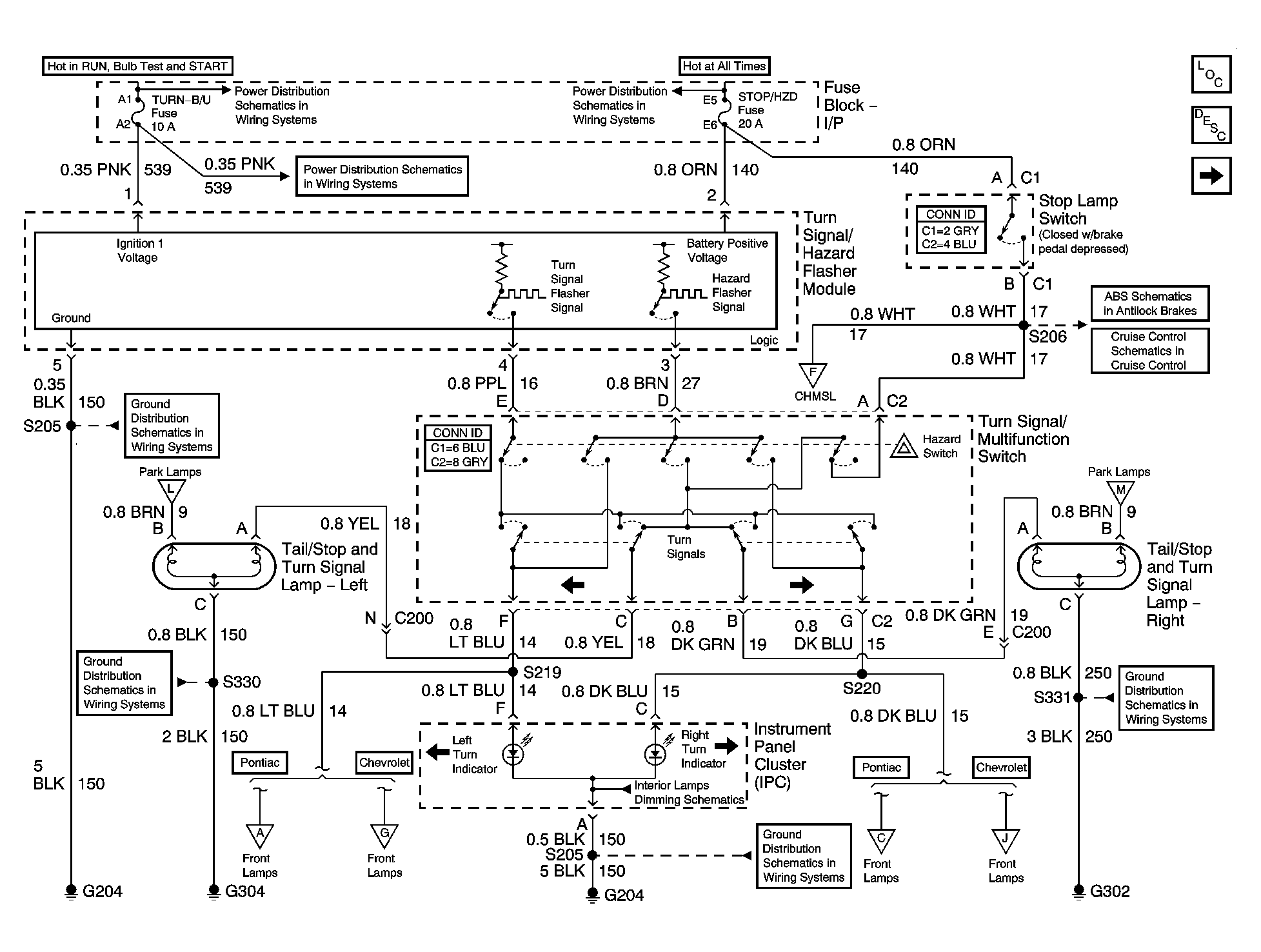

Fig 1: Lamp Controls, Rear Turn Lamps and Indicators

Courtesy of GENERAL MOTORS CORP.

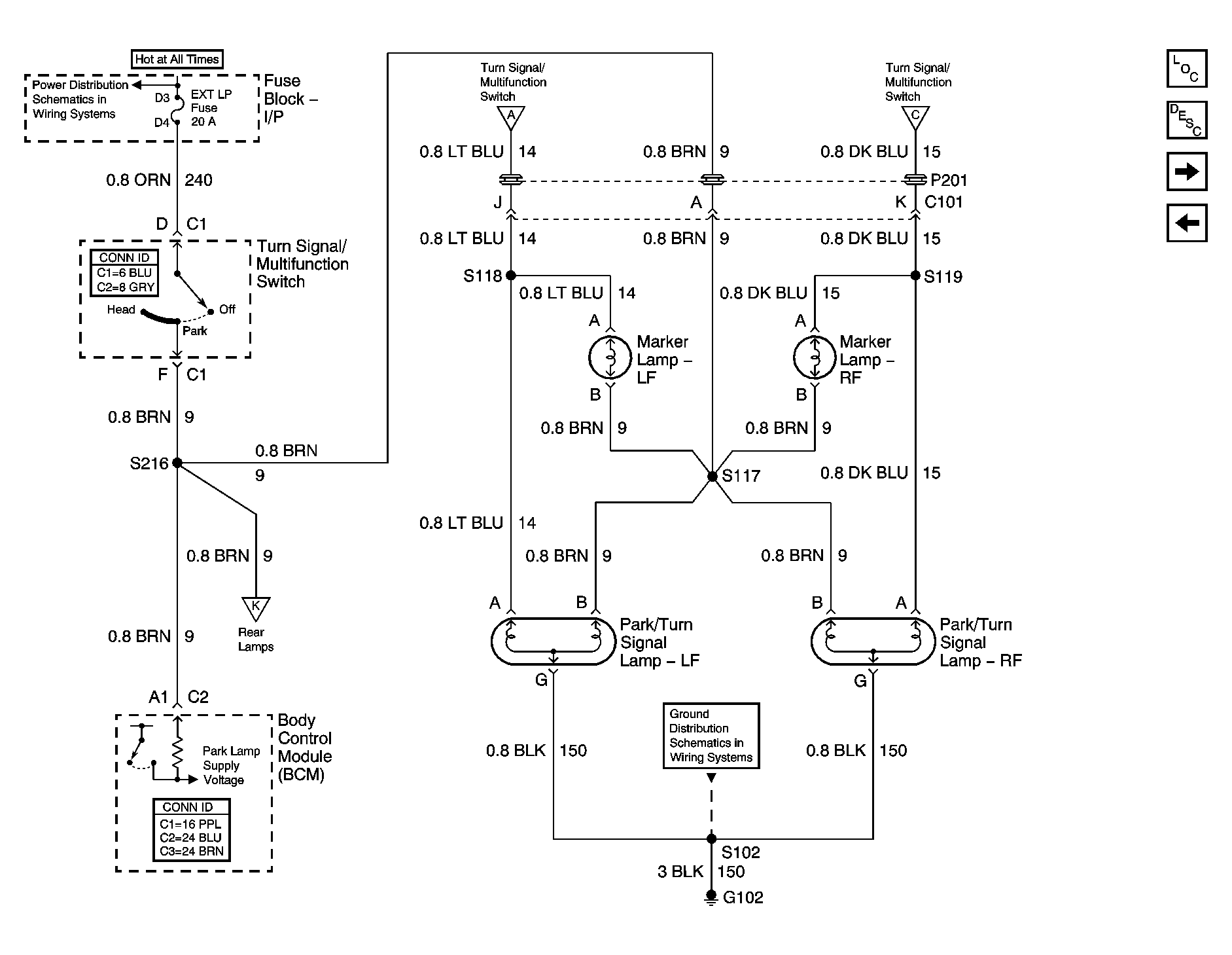

Fig 2: Park Lamps and Marker Lamps Controls - Front - Pontiac

Courtesy of GENERAL MOTORS CORP.

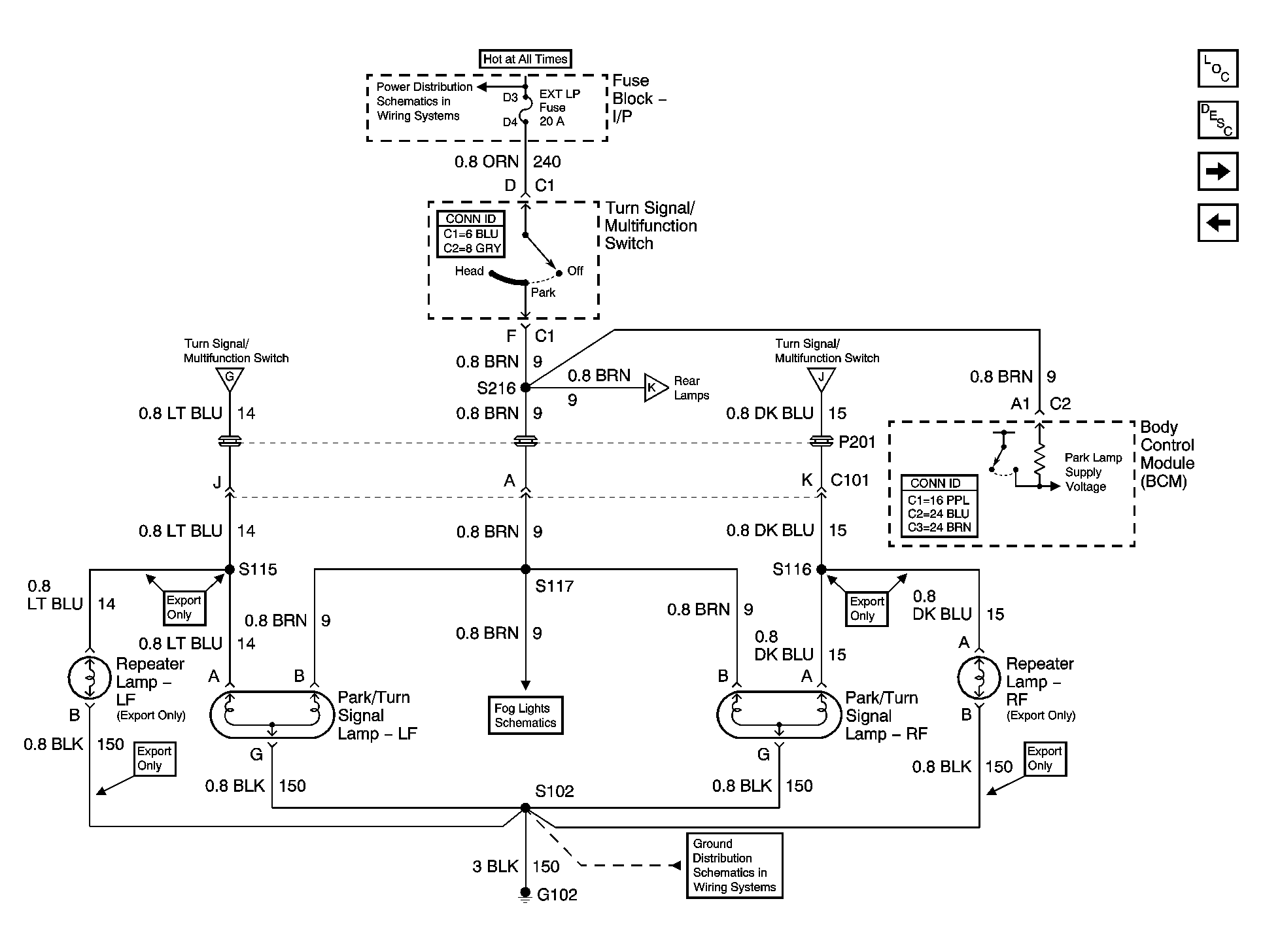

Fig 3: Park Lamps Controls and Repeater Lamps - Chevrolet

Courtesy of GENERAL MOTORS CORP.

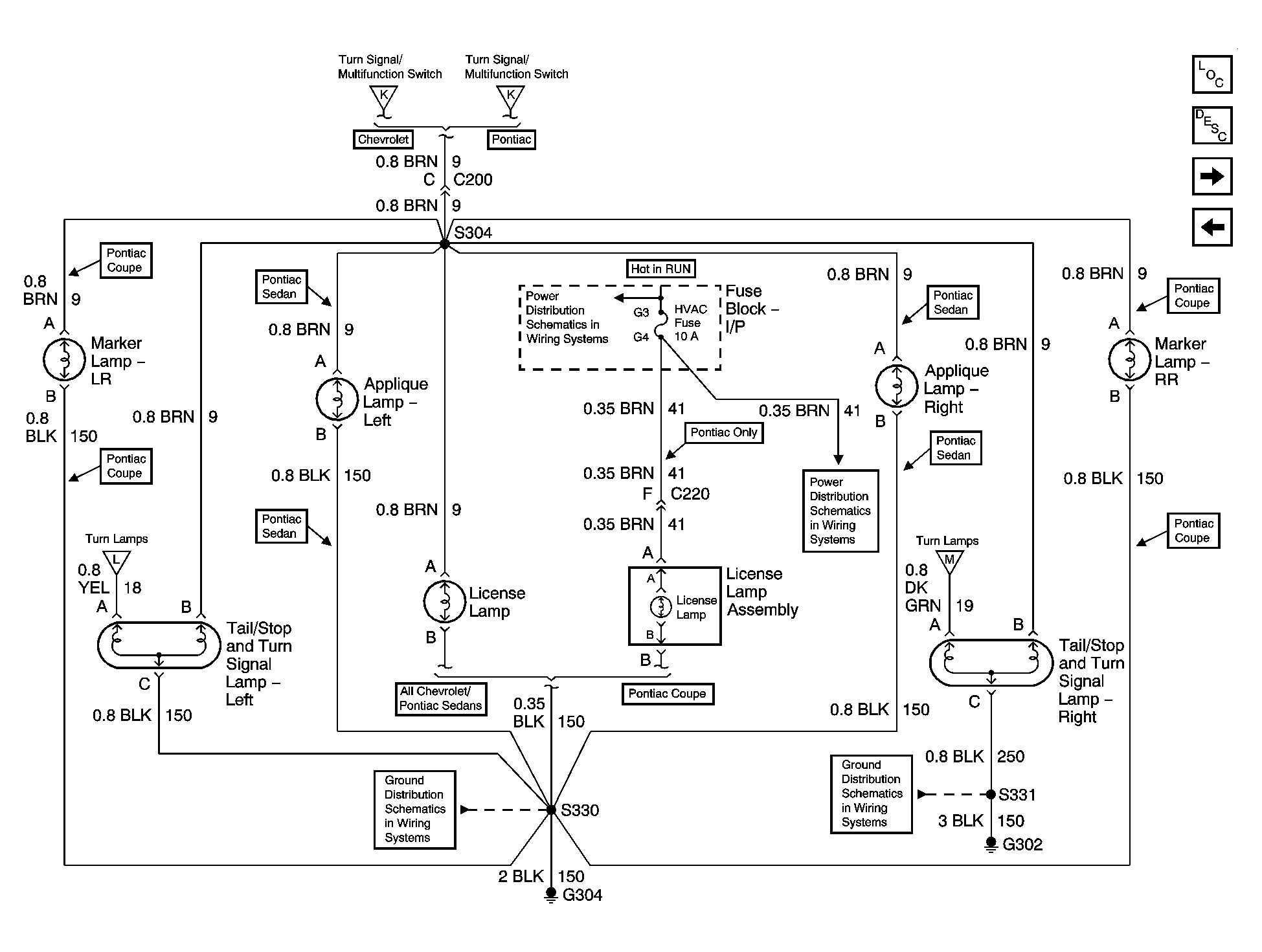

Fig 4: Rear Lamps

Courtesy of GENERAL MOTORS CORP.

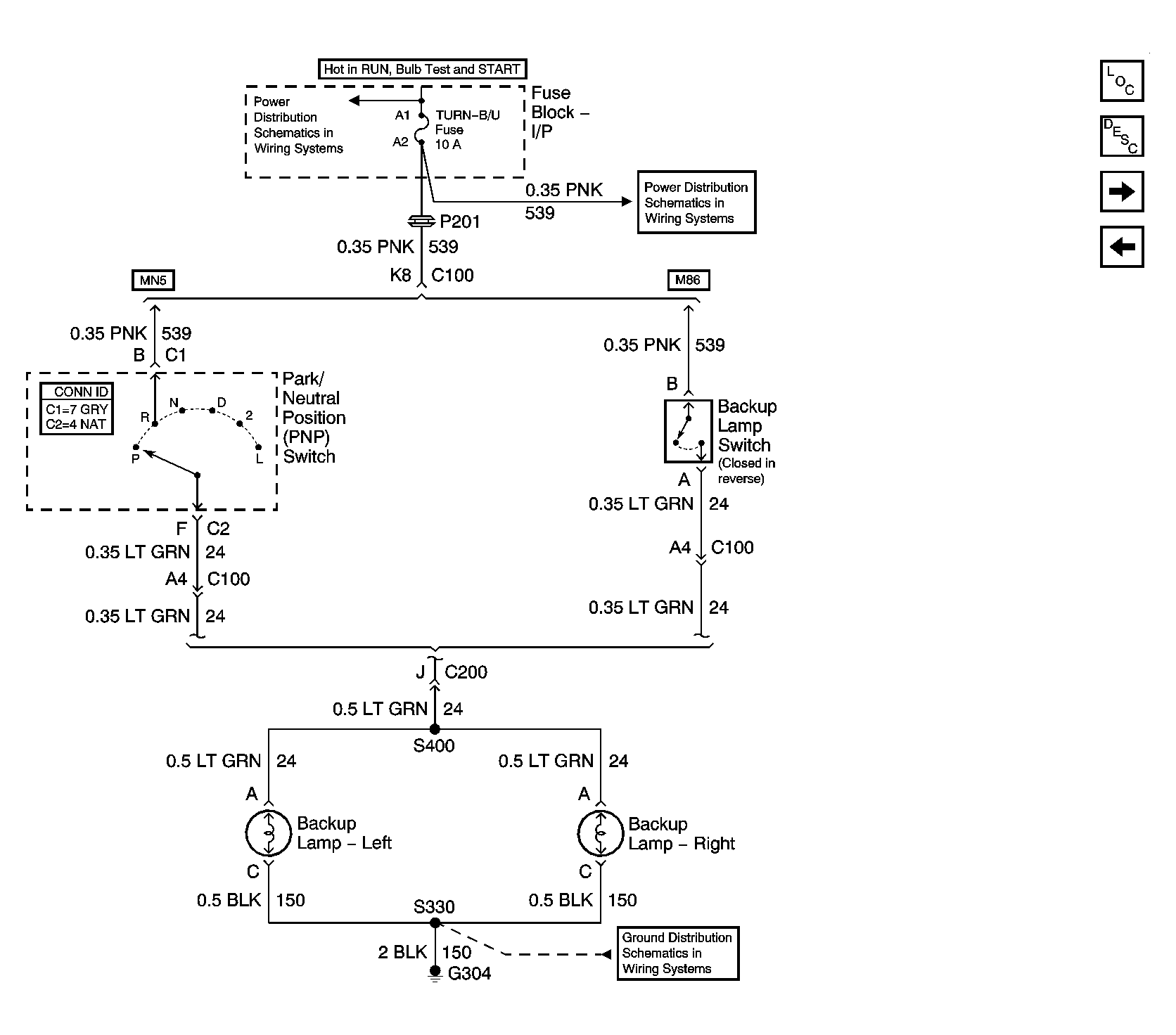

Fig 5: Backup Lamps

Courtesy of GENERAL MOTORS CORP.

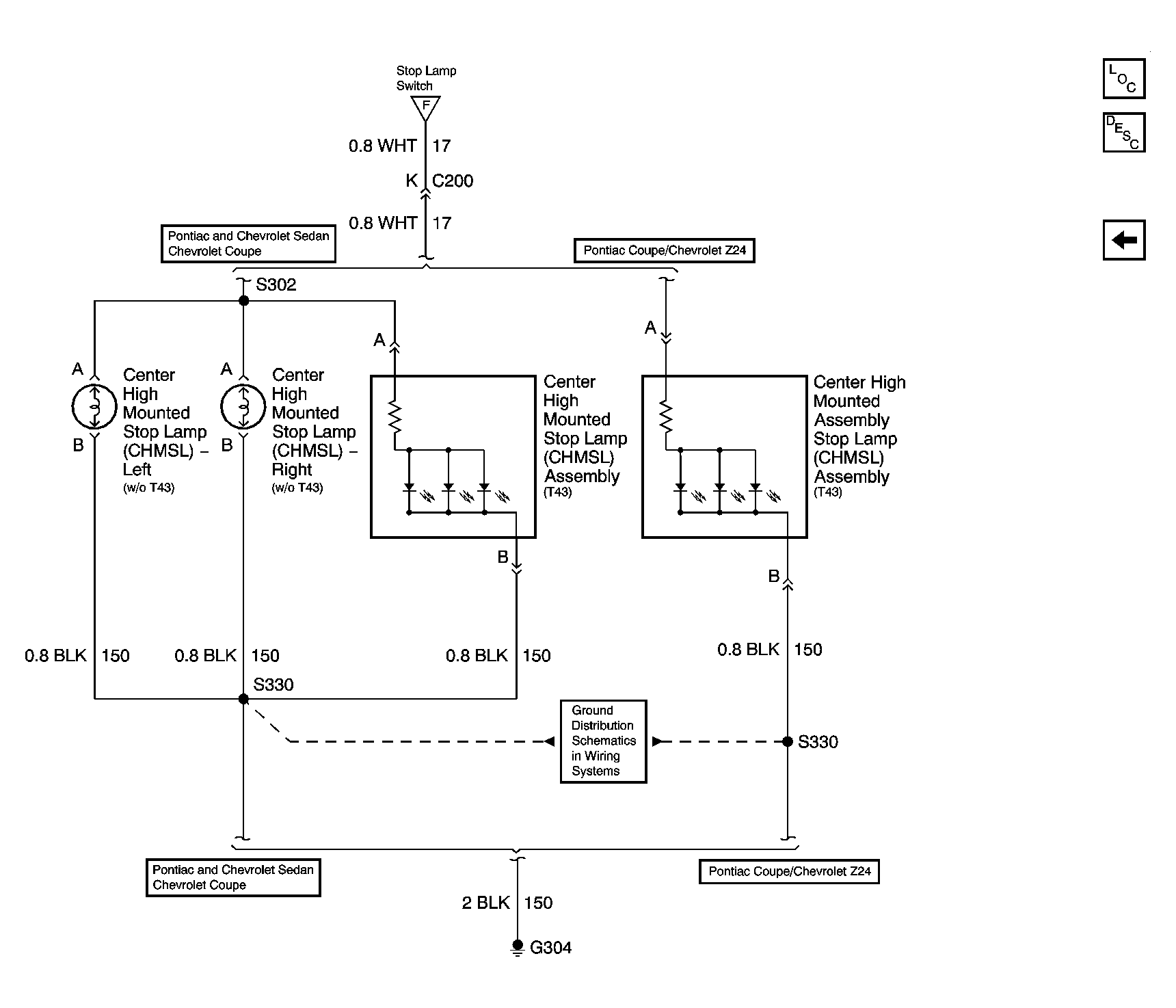

Fig 6: Center High Mounted Stop Lamps

Courtesy of GENERAL MOTORS CORP.
