Instrument Cluster Schematics

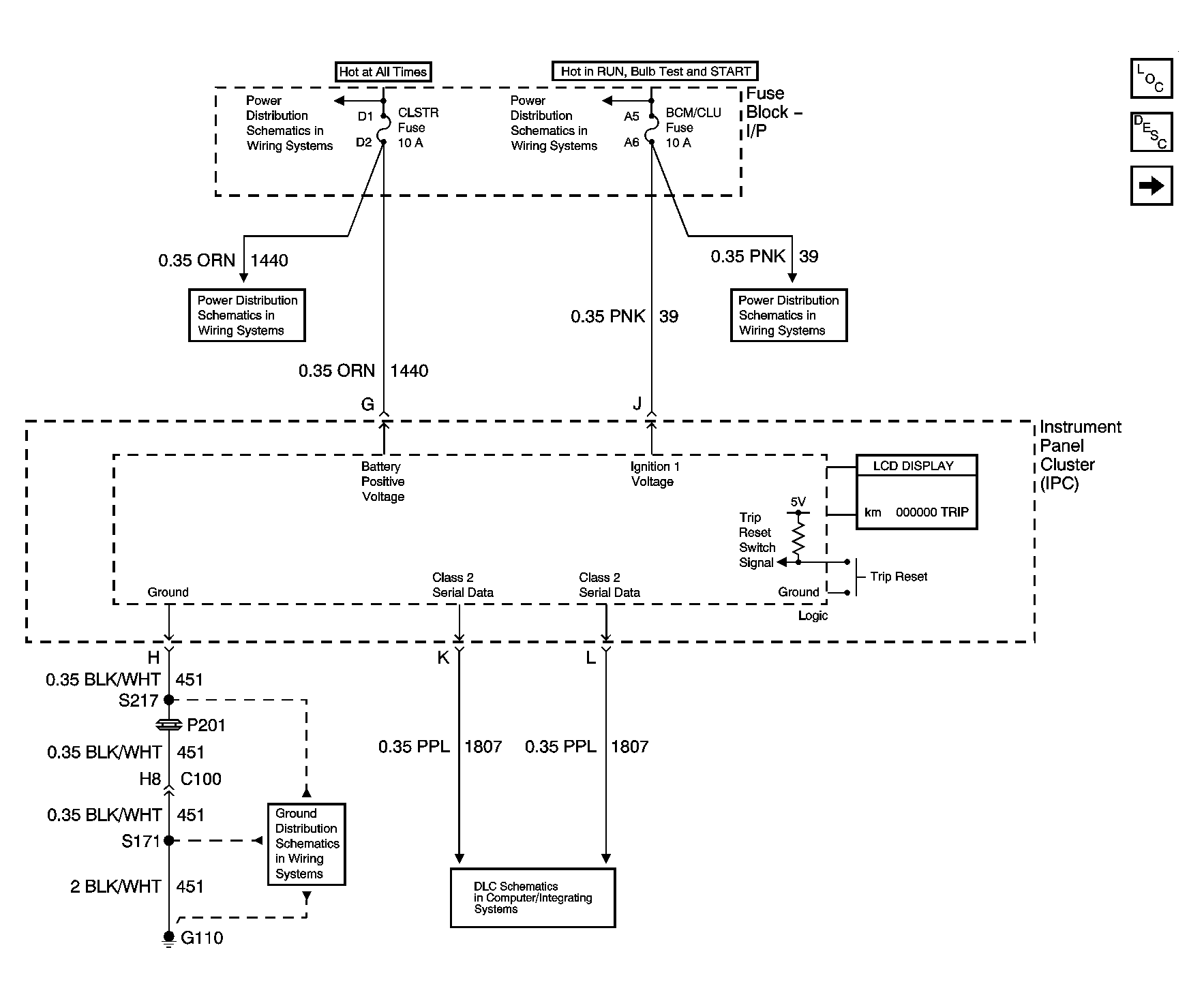

Fig 1: Power, Ground and Serial Data Schematic
GM1400627Courtesy of GENERAL MOTORS CORP.

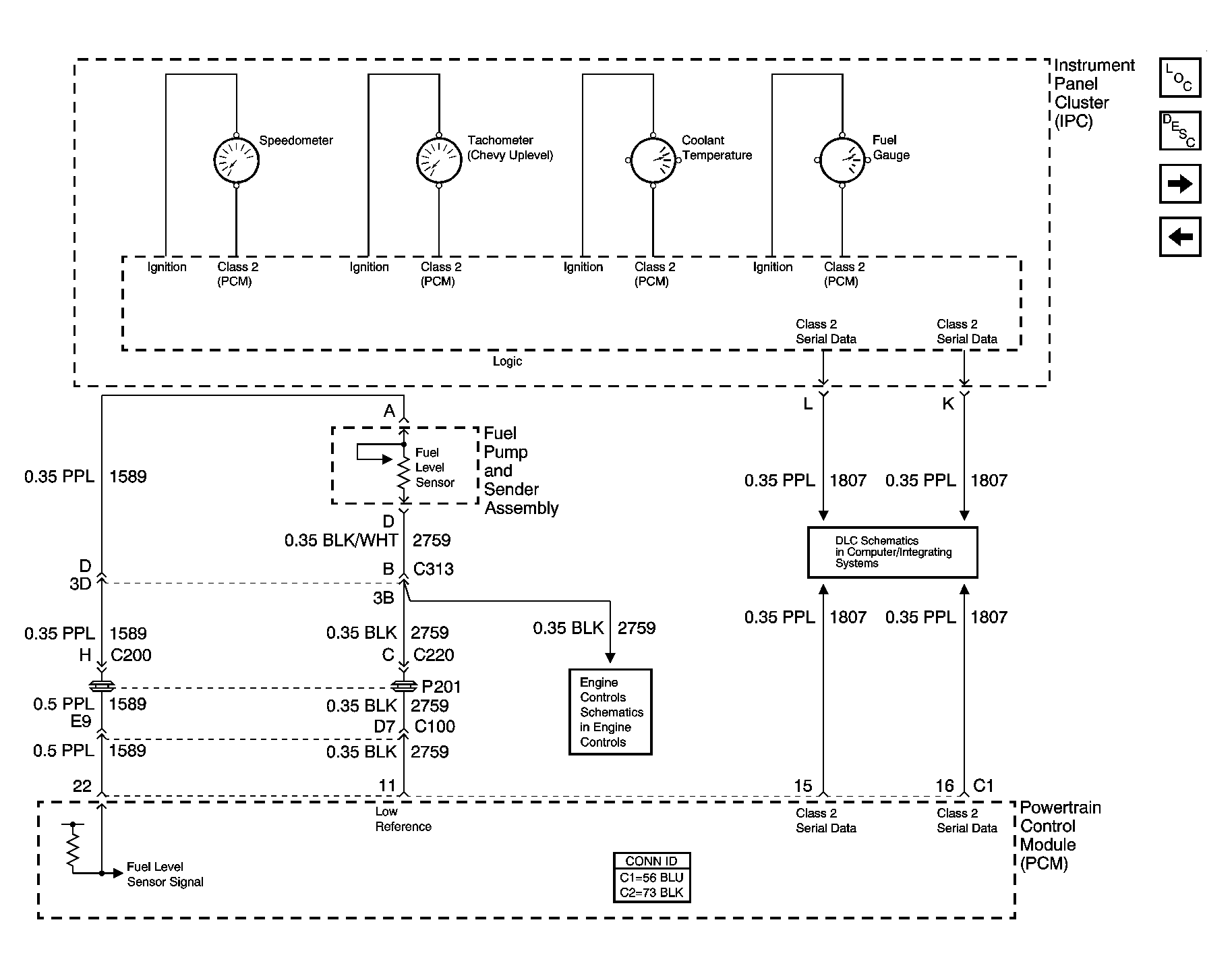

Fig 2: Gauges Schematic
GM1401032Courtesy of GENERAL MOTORS CORP.

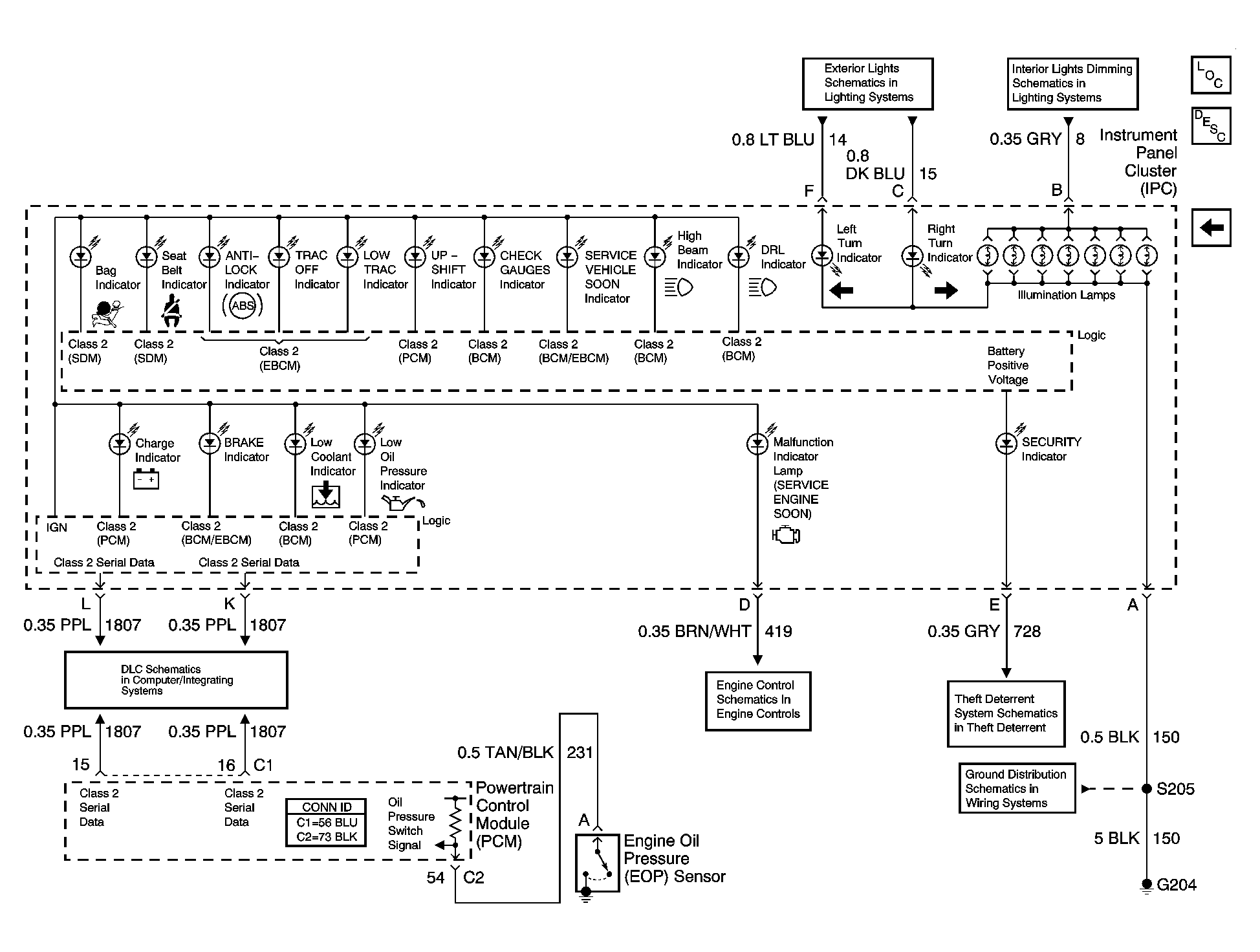

Fig 3: Indicator Lights and EOP Schematic
GM1400628Courtesy of GENERAL MOTORS CORP.
