Automatic Transmission System Hydraulic Diagrams

Fig 1: Park - Engine Running (Without Electronic Range Select Mode)

GM1205829

Courtesy of GENERAL MOTORS CORP.

Fig 2: Park - Engine Running (With Electronic Range Select Mode)

GM1205831

Courtesy of GENERAL MOTORS CORP.

Fig 3: Neutral - Engine Running (Without Electronic Range Select Mode)

GM1205833

Courtesy of GENERAL MOTORS CORP.

Fig 4: Neutral - Engine Running (With Electronic Range Select Mode)

GM1205835

Courtesy of GENERAL MOTORS CORP.

Fig 5: Reverse (Without Electronic Range Select Mode)

GM1205838

Courtesy of GENERAL MOTORS CORP.

Fig 6: Reverse (With Electronic Range Select Mode)

GM1205840

Courtesy of GENERAL MOTORS CORP.

Fig 7: Overdrive Range, First Gear (Without Electronic Range Select Mode)

GM1205841

Courtesy of GENERAL MOTORS CORP.

Fig 8: Overdrive Range, First Gear (With Electronic Range Select Mode)

GM1205847

Courtesy of GENERAL MOTORS CORP.

Fig 9: Overdrive Range, Second Gear (Without Electronic Range Select Mode)

GM1205849

Courtesy of GENERAL MOTORS CORP.

Fig 10: Overdrive Range, Second Gear (With Electronic Range Select Mode)

GM1205850

Courtesy of GENERAL MOTORS CORP.

Fig 11: Overdrive Range, Third Gear - TCC Not Applied (Without Electronic Range Select Mode)

GM1205852

Courtesy of GENERAL MOTORS CORP.

Fig 12: Overdrive Range, Third Gear - TCC Not Applied (With Electronic Range Select Mode)

GM1205855

Courtesy of GENERAL MOTORS CORP.

Fig 13: Overdrive Range, Fourth Gear - TCC Applied (Without Electronic Range Select Mode)

GM1205857

Courtesy of GENERAL MOTORS CORP.

Fig 14: Overdrive Range, Fourth Gear - TCC Applied (With Electronic Range Select Mode)

GM1205859

Courtesy of GENERAL MOTORS CORP.

Fig 15: Overdrive Range, 4-3 Downshift - TCC Not Applied (Without Electronic Range Select Mode)

GM1205861

Courtesy of GENERAL MOTORS CORP.

Fig 16: Drive Range, Manual 3rd - From Overdrive Range (Without Electronic Range Select Mode)

GM1205863

Courtesy of GENERAL MOTORS CORP.

Fig 17: Manual Range 3rd (With Electronic Range Select Mode)

GM1205864

Courtesy of GENERAL MOTORS CORP.

Fig 18: Drive Range, Manual 2nd - From Drive, Manual 3rd (Without Electronic Range Select Mode)

GM1205865

Courtesy of GENERAL MOTORS CORP.

Fig 19: Manual Range 2nd (With Electronic Range Select Mode)

GM1205866

Courtesy of GENERAL MOTORS CORP.

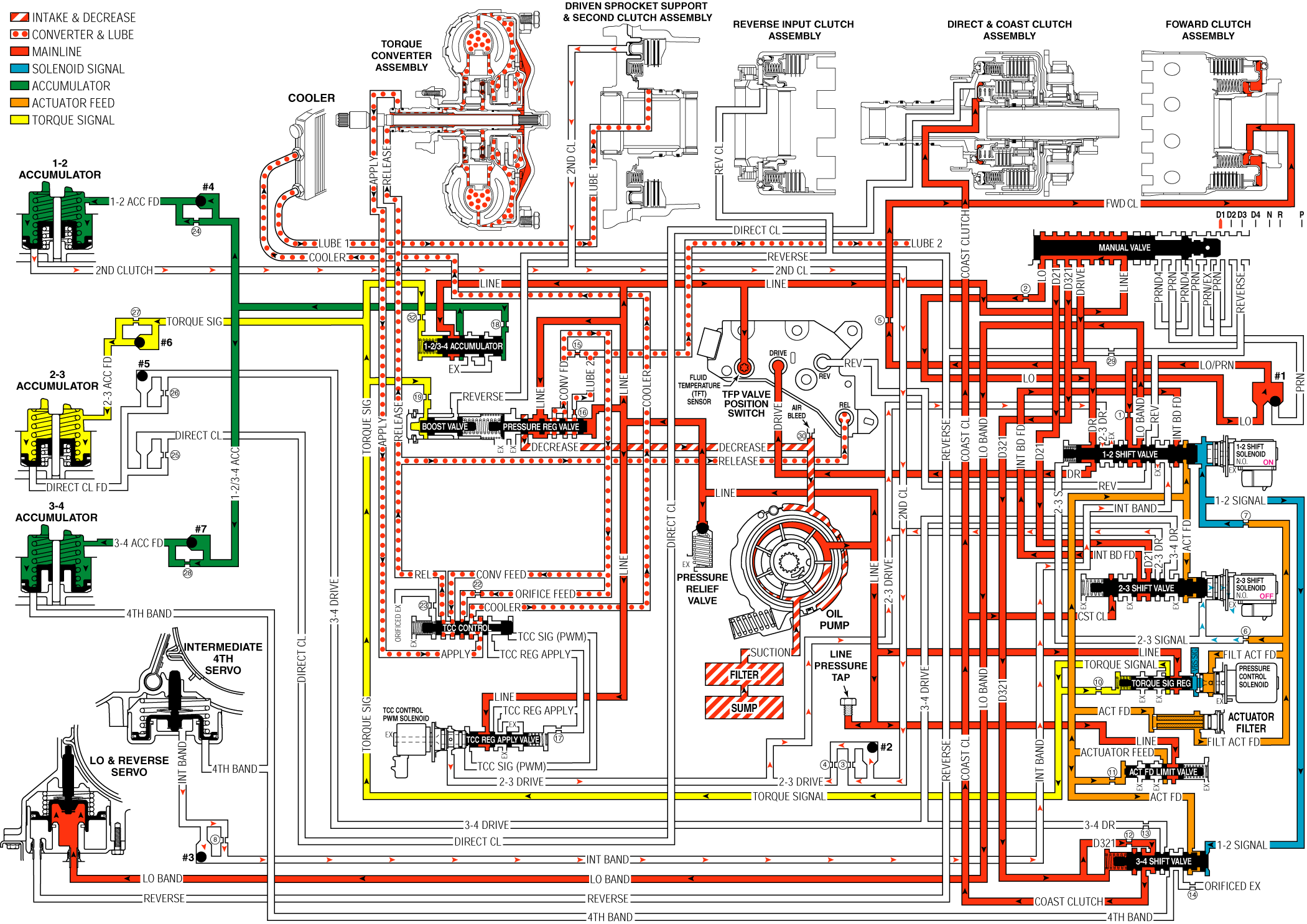

Fig 20: Drive Range, Manual 1st - From Drive, Manual 2nd (Without Electronic Range Select Mode)

GM1205867

Courtesy of GENERAL MOTORS CORP.

Fig 21: Manual Range 1st (With Electronic Range Select Mode)

GM1205870

Courtesy of GENERAL MOTORS CORP.
