HVAC Schematics

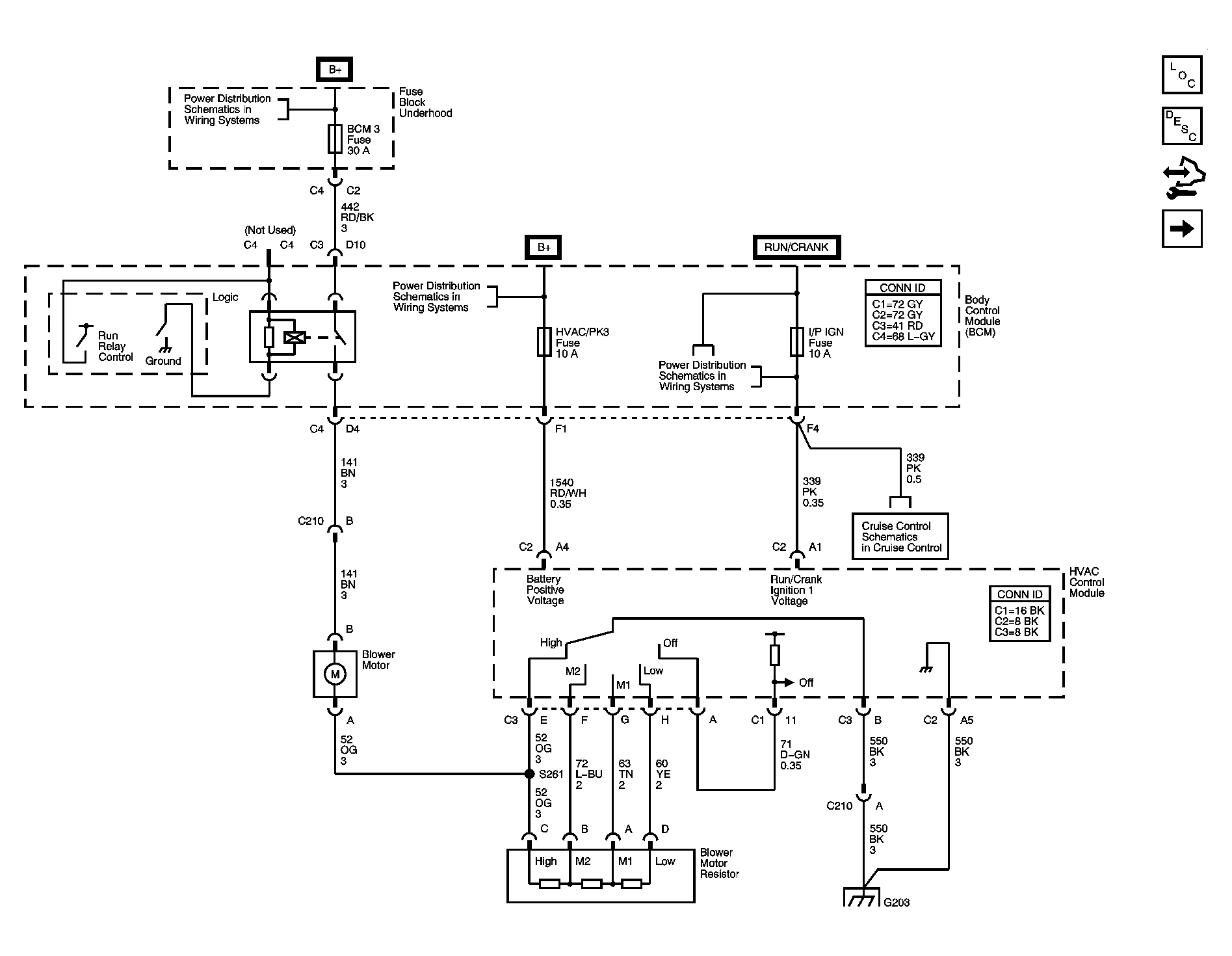

Fig 1: Power, Ground and Blower Motor Controls Schematic
GM1532275Courtesy of GENERAL MOTORS CORP.

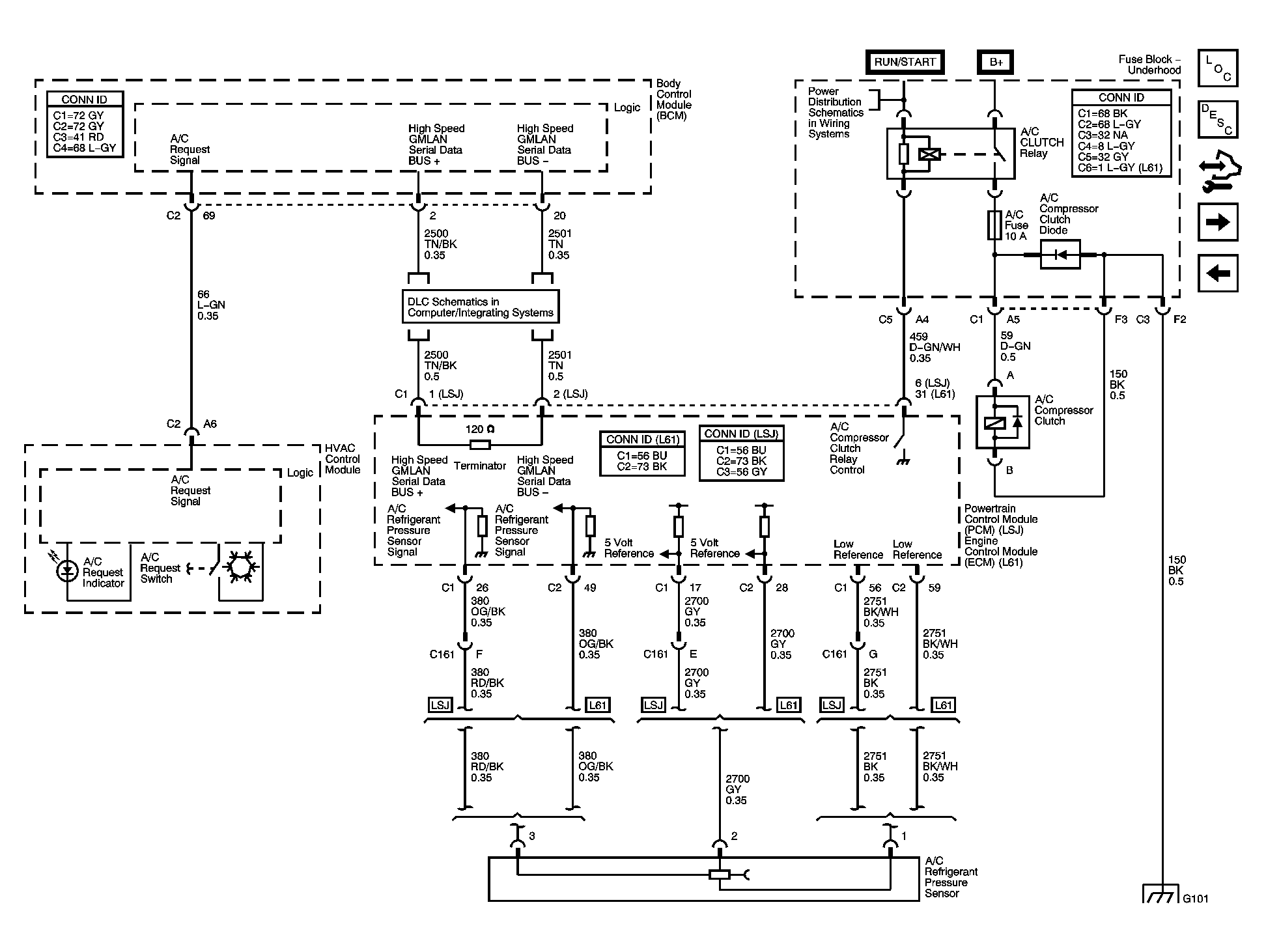

Fig 2: Compressor Controls Schematic
GM1532285Courtesy of GENERAL MOTORS CORP.

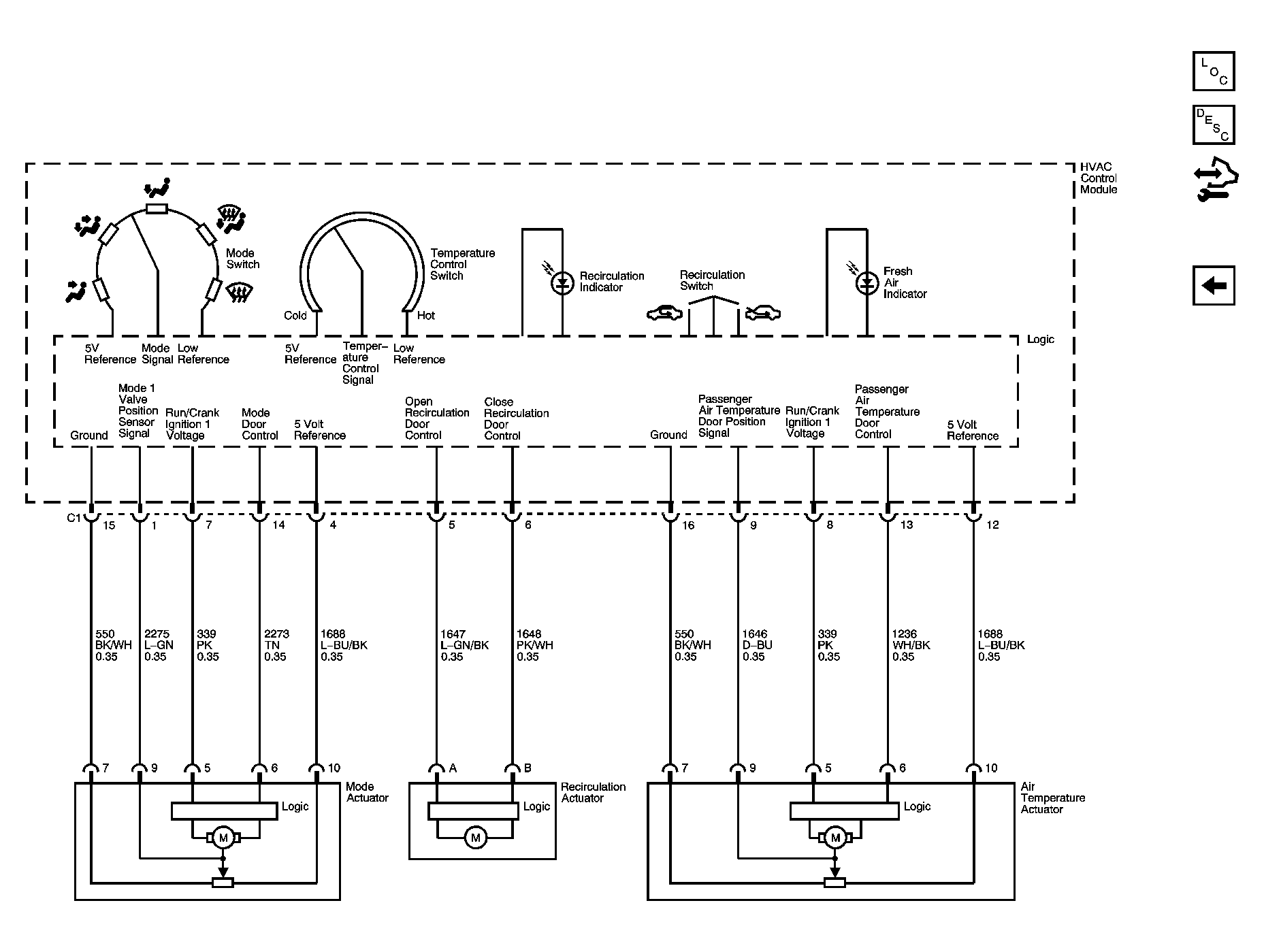

Fig 3: Mode and Air Temperature Controls Schematic
GM1532288Courtesy of GENERAL MOTORS CORP.
