Harness Routing Views

Fig 1: Forward Lamp Harness
GM1524052Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C121
2 G102
3 Fuse Block - Underhood C3
4 Inflatable Restraint Front End Sensor Connector
5 Front Fascia
6 Fog Lamp - Right
7 Fog Lamp - Left
8 G101

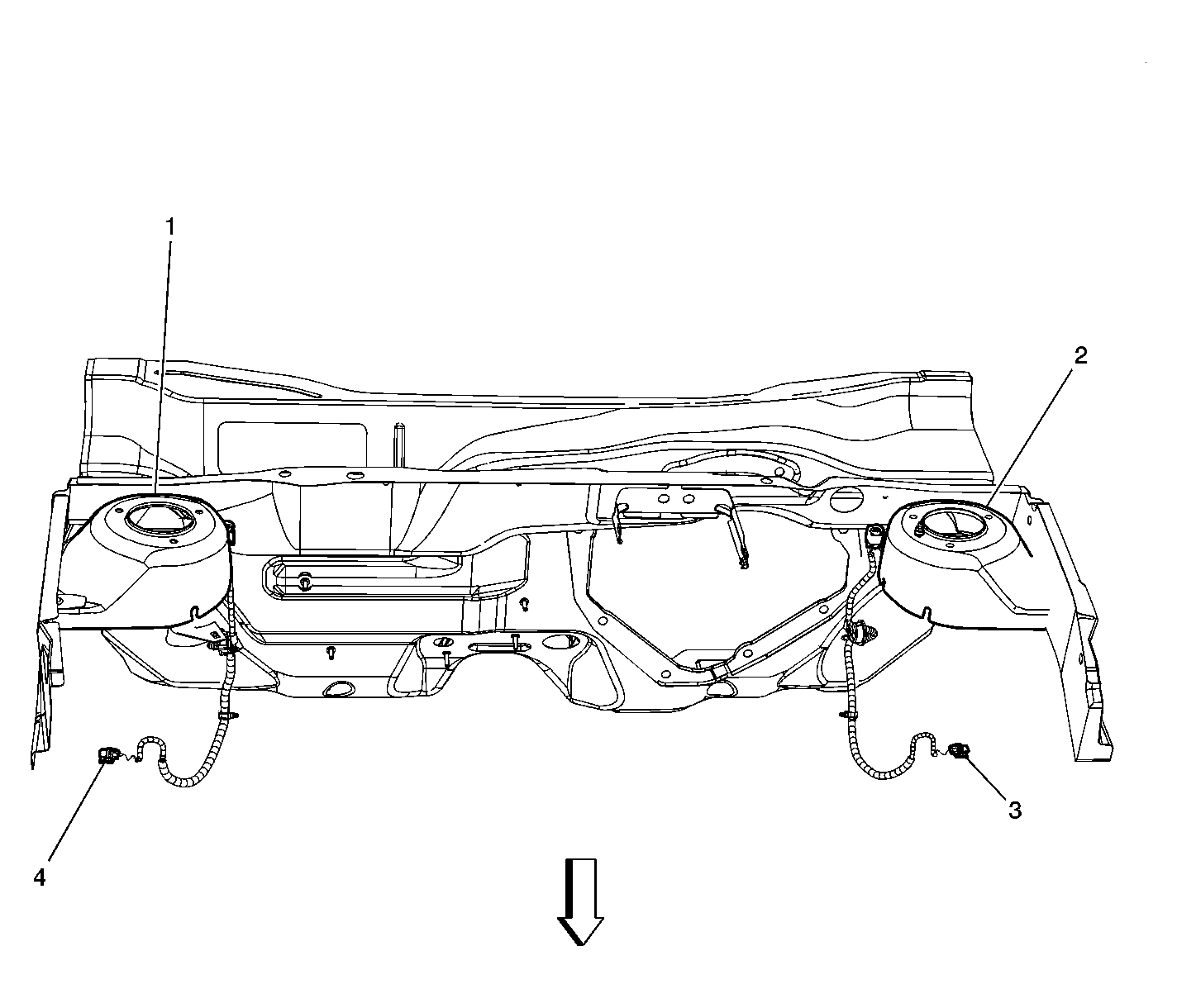

Fig 2: Front ABS Harnesses
GM1602027Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 LF Strut Tower
2 RF Strut Tower
3 C171 Wheel Speed Sensor (WSS) - LF
4 C170 Wheel Speed Sensor (WSS) - RF
Fig 3: Engine Harness (L61)
GM1524050Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor
2 C101
3 G109
4 Fuse Block - Underhood C1
5 Transmission Control Module (TCM) C1
6 Engine Control Module (ECM) C2
7 G103
8 C100
9 G105
10 C160
11 Air Compressor Clutch Connector
Fig 4: Passenger Air Bag
GM1574485Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passenger Air Bag
2 C202
Fig 5: I/P Harness Routing
GM1524011Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Carrier
2 G203
3 G201
4 S233
5 C275
6 SP200
7 Data Link Connector (DLC)
8 C201
9 C204
10 Body Control Module (BCM) C4
11 Body Control Module (BCM) C2
12 I/P Carrier Trim
13 Radio Antenna Coax
14 C200
15 C210
Fig 6: Passenger Air Bag
GM1574485Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passenger Air Bag
2 C202
Fig 7: LF Door - Sedan
GM1524041Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 S200
3 C301
4 Speaker Connector
5 Door Latch Connector
Fig 8: LF Door - Coupe
GM1524037Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 S200
3 C301
4 Speaker Connector
5 Window Motor Connector
6 Inflatable Restraint Side Impact Sensor (SIS) Connector
Fig 9: RF Door - Sedan
GM1524045Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Door Latch Connector
3 Speaker Connector
4 C300
Fig 10: RF Door - Coupe
GM1524042Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Inflatable Restraint Side Impact Sensor (SIS) Connector
3 Window Motor Connector
4 Speaker Connector
5 C300
Fig 11: LR Door - Sedan
GM1524047Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Door Latch Connector
3 Window Motor Connector
4 C700
Fig 12: RR Door - Sedan
GM1524048Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 C800
3 Window Motor Connector
4 Door Latch Connector
Fig 13: Driver Seat
GM1524033Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Switch
2 Heated Seat Element - Driver Back (KA1)
3 Heated Seat Element - Driver Cushion (KA1)
4 Seat Belt Switch Connector - Driver
5 C315
6 Heated Seat Module - Driver (KA1)
Fig 14: Passenger Seat
GM1524032Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Element - Passenger Back (KA1)
2 Seat Belt Buckle
3 Heated Seat Module - Passenger (KA1)
4 C314
5 Heated Seat Element - Passenger Cushion (KA1)
Fig 15: Headliner Harness (CF5)
GM1524013Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headliner
2 C304 (Coax)
3 C321 (UE1) or C323 (w/o UE1)
4 C302
5 Cellular Microphone Connector (UE1)
6 Inside Rearview Mirror (ISRVM) Connector
7 Sunroof Switch Connector (CF5)
Fig 16: Headliner Harness (w/o CF5)
GM1524018Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headliner
2 Dome Lamp
3 C323
4 S300
5 Inside Rearview Mirror (ISRVM) Connector
Fig 17: Body Harness - Engine Compartment
GM1524019Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C101
2 Windshield Wiper Module Connector
3 Fuse Block - Underhood C4
4 Fuse Block - Underhood C2
5 G101
6 C121
7 Engine Control Module (ECM) C1
8 Electronic Brake Control Module (EBCM) Connector
9 Fuse Block - Underhood C5
Fig 18: Body Harness - Passenger Compartment
GM1524023Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C200
2 Body Control Module (BCM) C3
3 C314
4 C800 (Sedan)
5 Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
6 G306
7 S360
8 C700 (Sedan)
9 C315
10 S361
11 G301
12 S335
13 C275
14 C201
15 C301
16 Body Control Module (BCM) C1
17 C300
18 Coax Inline
Fig 19: Body Harness - Rear Compartment
GM1524028Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C493
2 G402
3 Fuse Holder 50A
4 C401
5 G401
6 Center High Mounted Stop Lamp (CHMSL) Connector
7 Rear Compartment Lid Ajar Switch
8 C492
9 C321 (UE1)
10 C323 (w/o UE1)
11 C319
12 S401
13 S351
14 S352
15 Floor Panel
16 C305
17 Wheel Well
18 C320
19 Antenna coax (Sedan Only)
Fig 20: Rear Floor Pan Components and G403
GM1549037Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
2 Fuse Holder 50A
3 Battery Current Sensor
4 G403
5 C400
6 Spare Tire Well
Fig 21: Rear ABS Harness
GM1524054Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wheel Speed Sensor (WSS) - LR
2 C305
3 Wheel Speed Sensor (WSS) - RR
Fig 22: HVAC Assembly Harness
GM1549144Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 HVAC Box
2 C210
3 Blower Motor
4 S261
Fig 23: Fuel Injector Harness (L61)
GM1549154Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cylinder Head
2 S103
3 Ignition Control Module (ICM)
4 Intake Manifold
5 C160
