Audible Warnings Schematics

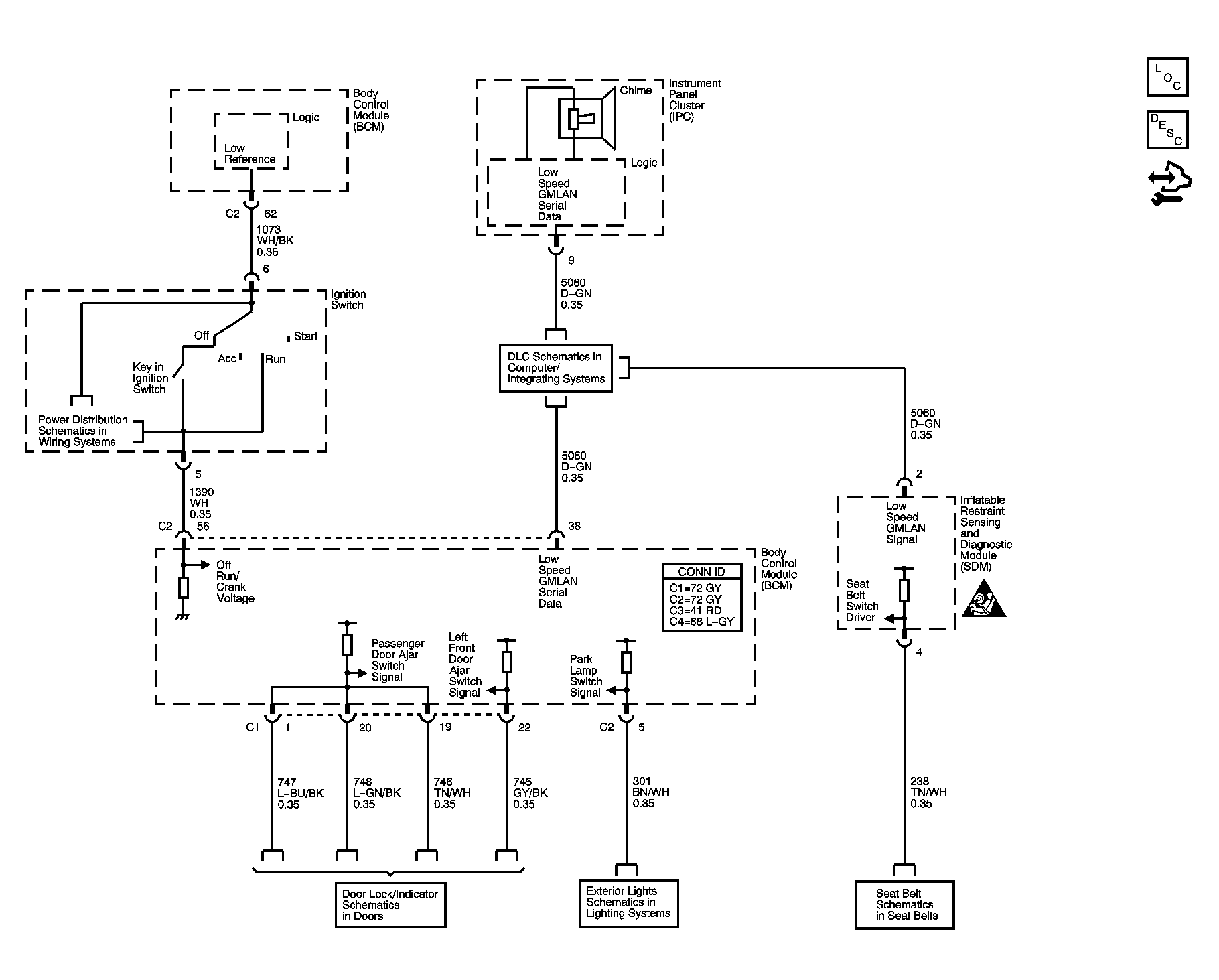

Fig 1: Audible Warnings Schematic

GM1523807

Courtesy of GENERAL MOTORS CORP.
