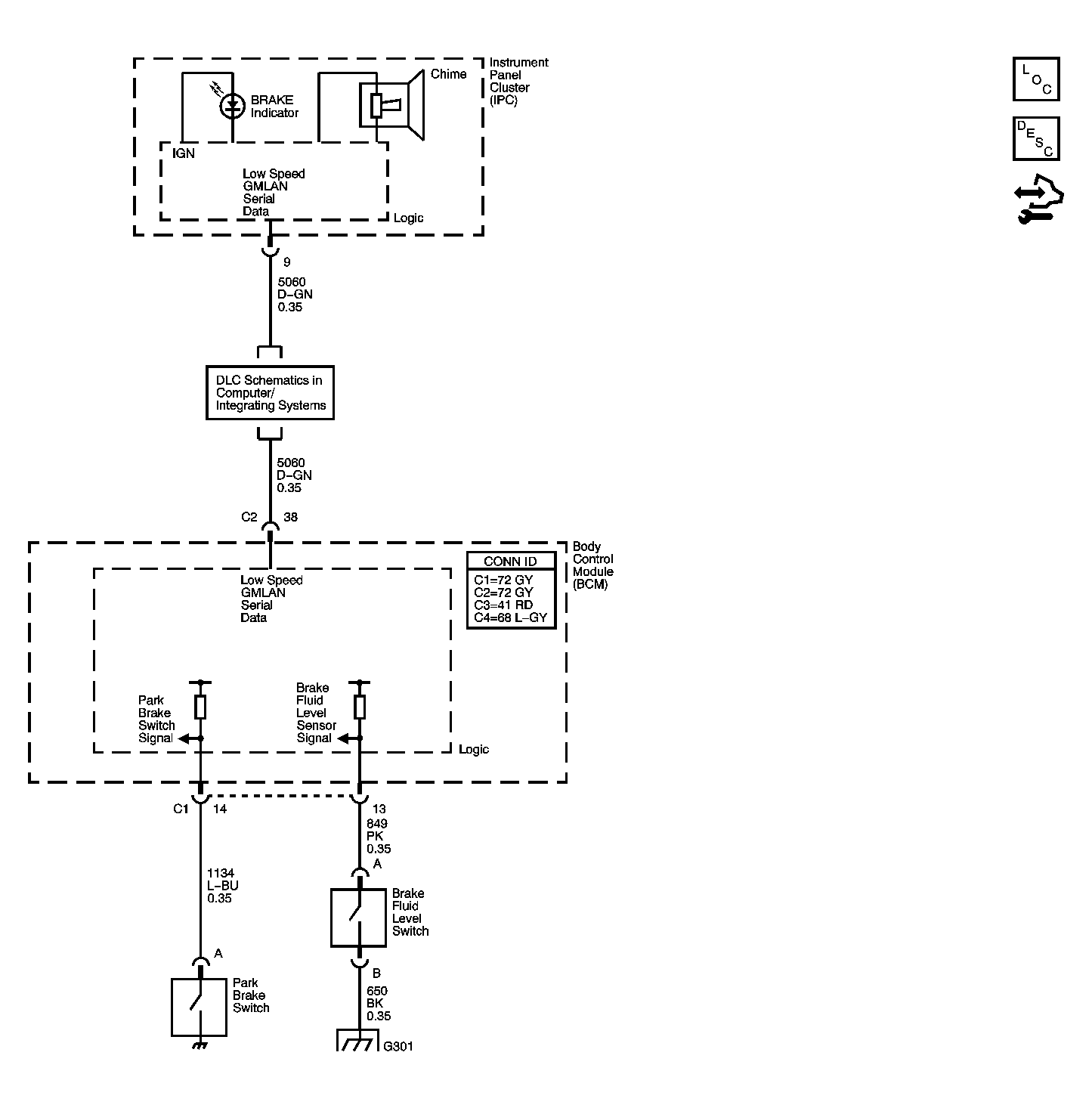

Home >> Pontiac >> 2005 >> Pursuit Base, Standard >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brake System >> Schematic and Routing Diagrams >> Brake Warning System Schematics
