Interior Lights Schematics

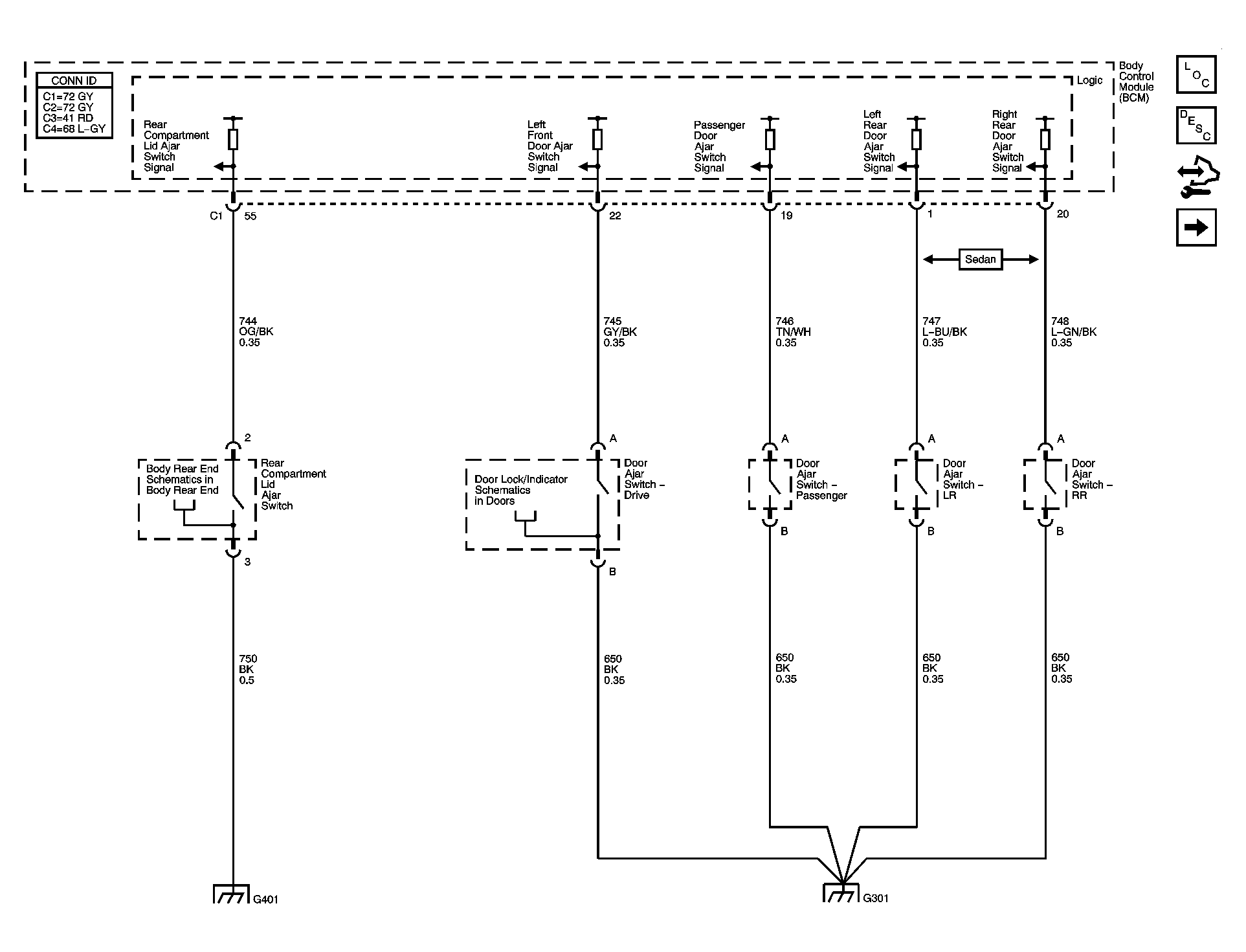

Fig 1: Interior Lights - Inputs Schematic

GM1527408

Courtesy of GENERAL MOTORS CORP.

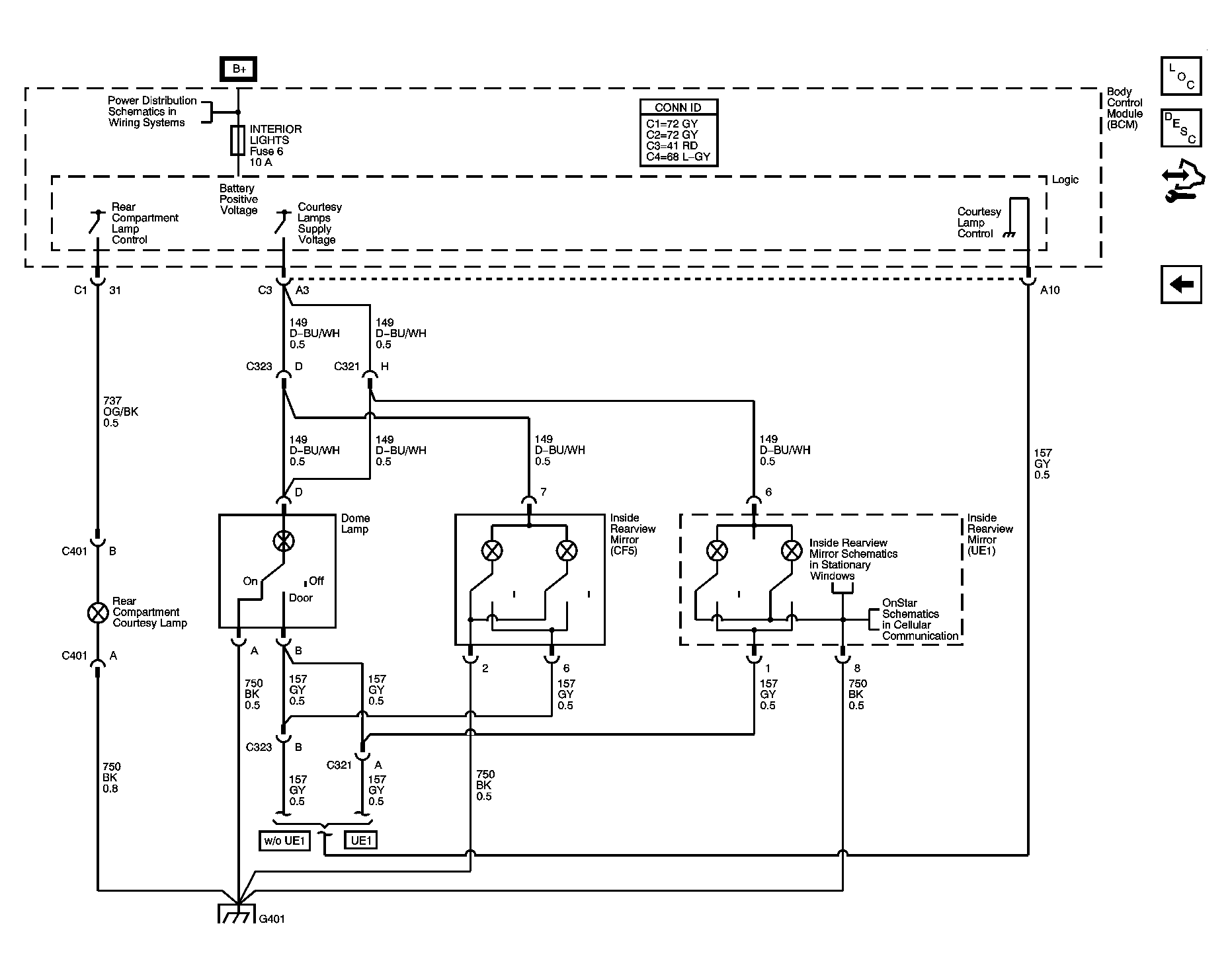

Fig 2: Interior Lights - Outputs Schematic

GM1527409

Courtesy of GENERAL MOTORS CORP.
