Interior Lights Dimming Schematics

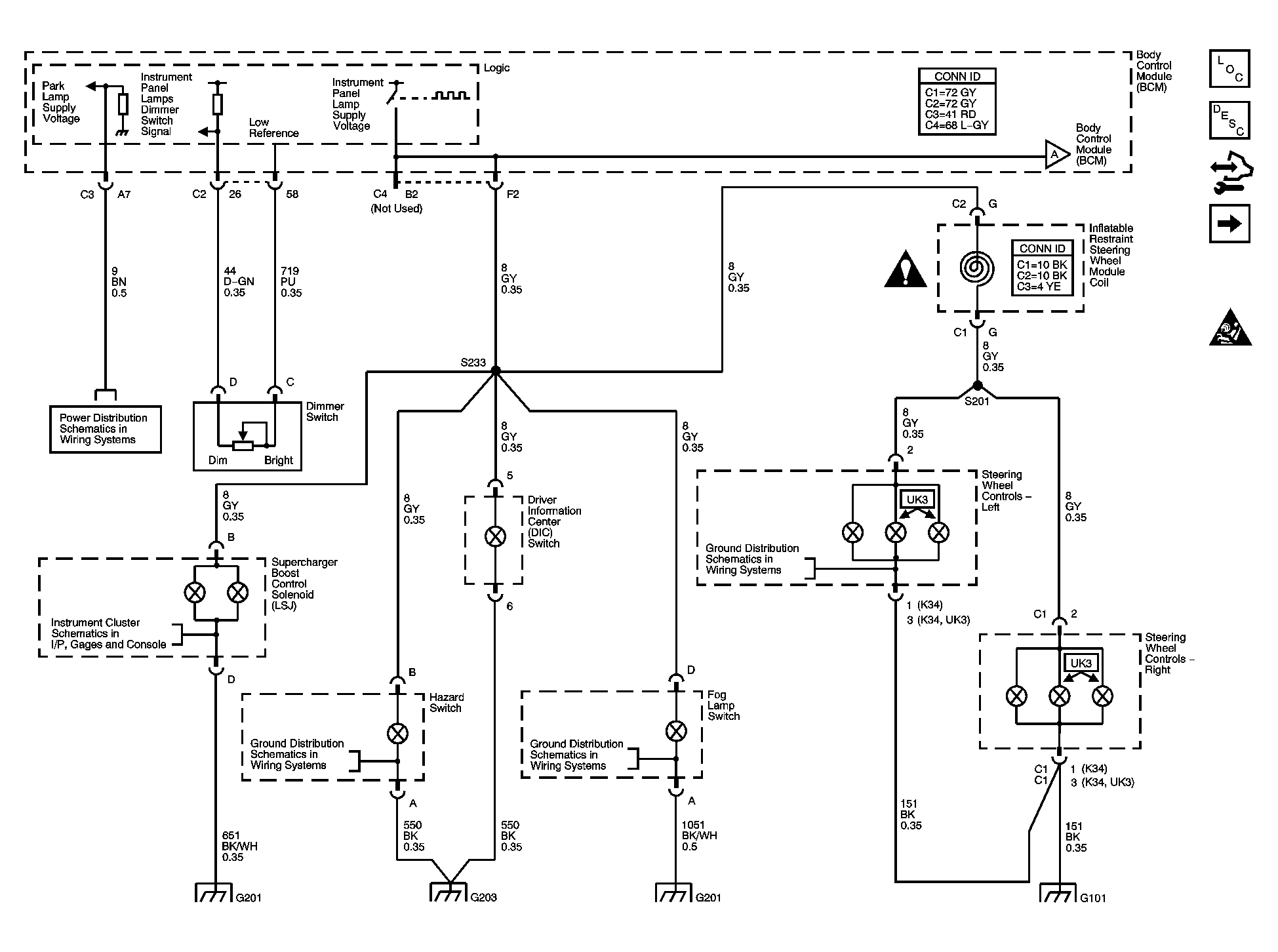

Fig 1: Dimmer Switch Inputs Schematic
GM1527759Courtesy of GENERAL MOTORS CORP.

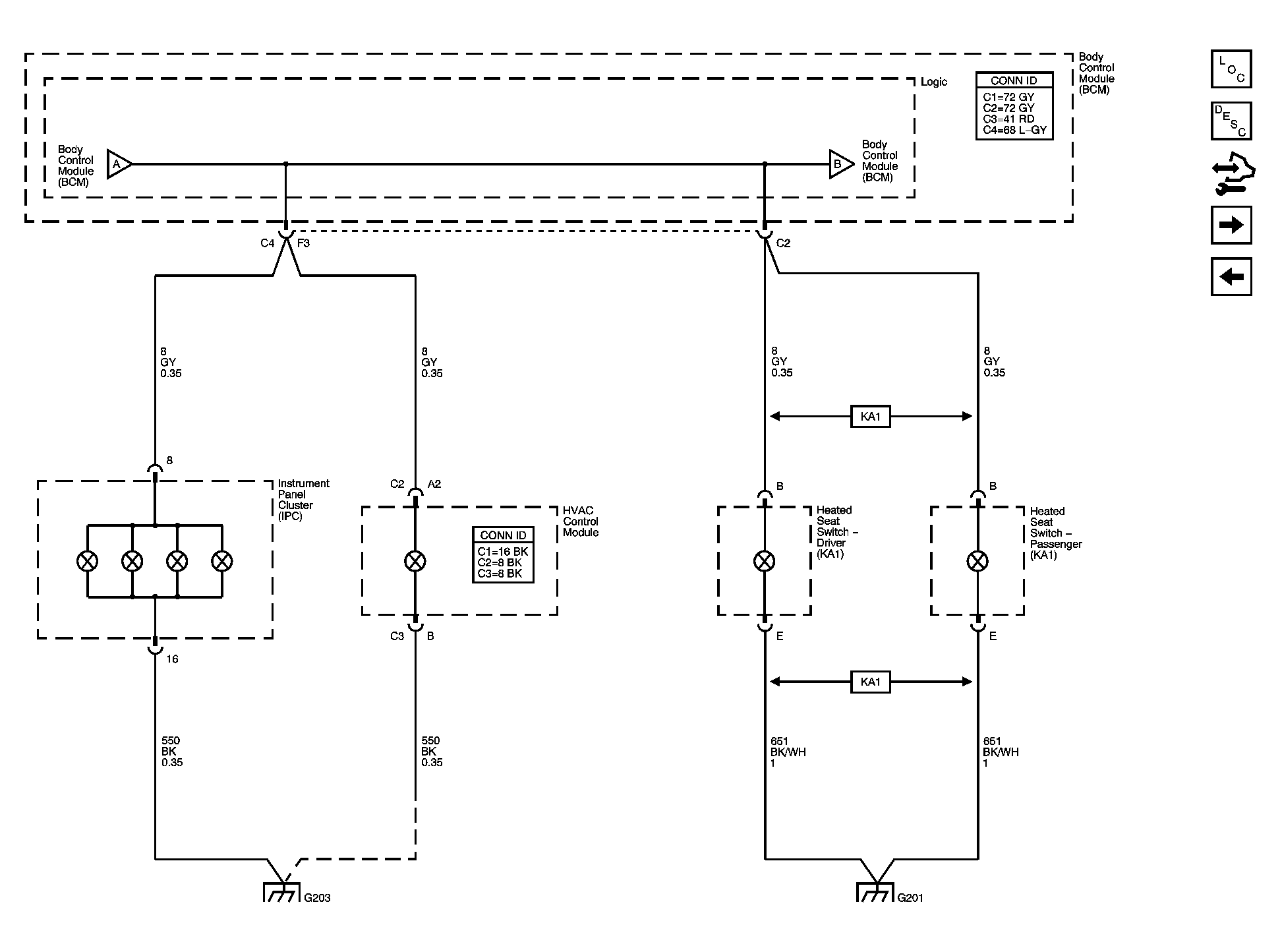

Fig 2: IPC, Mode Control Assembly, and Heated Seats Schematic
GM1527760Courtesy of GENERAL MOTORS CORP.

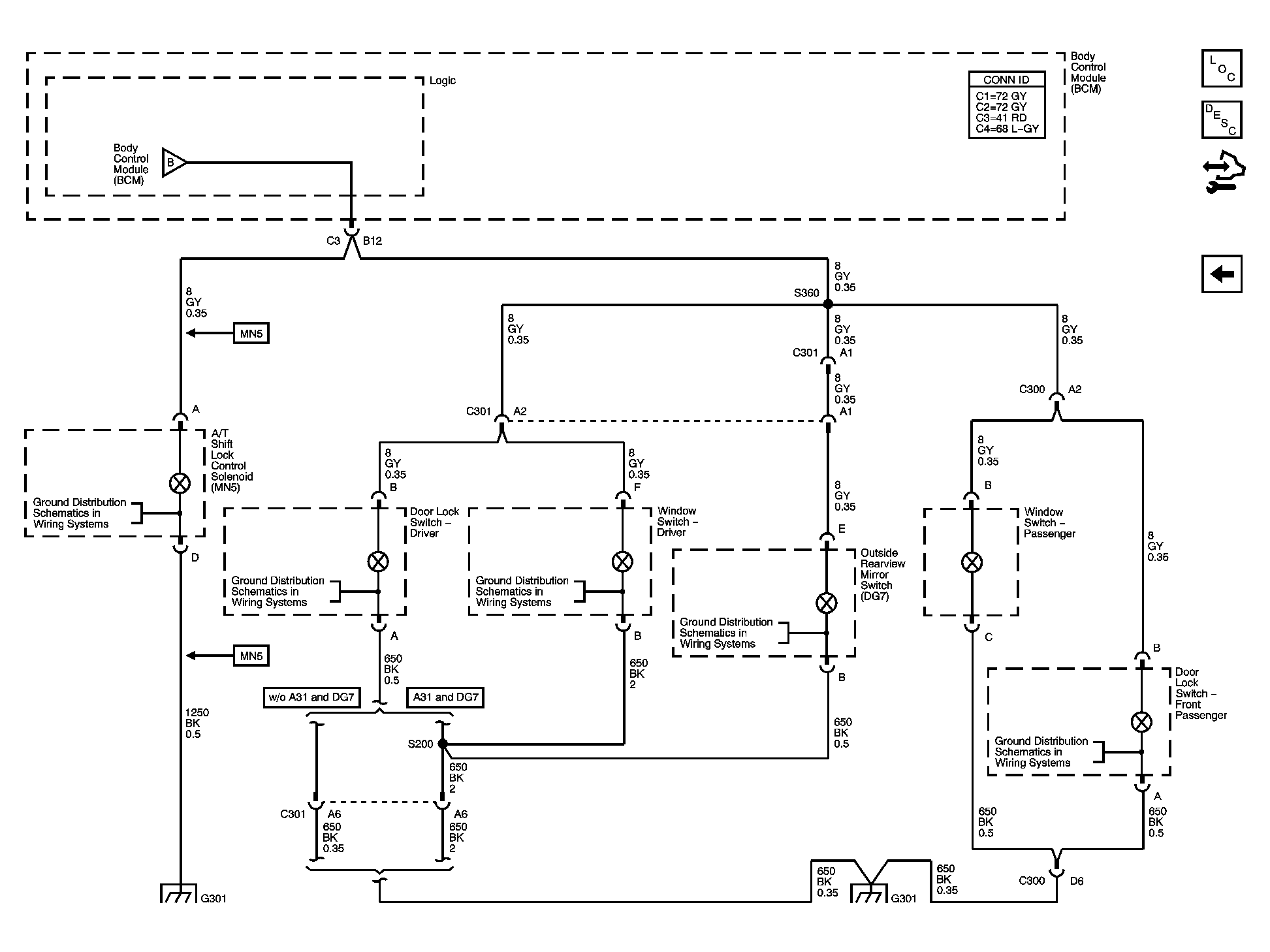

Fig 3: A/T Shift Lock Control Assembly, Mirror, and Doors Schematic
GM1527762Courtesy of GENERAL MOTORS CORP.
