Headlights/Daytime Running Lights (DRL) Schematics

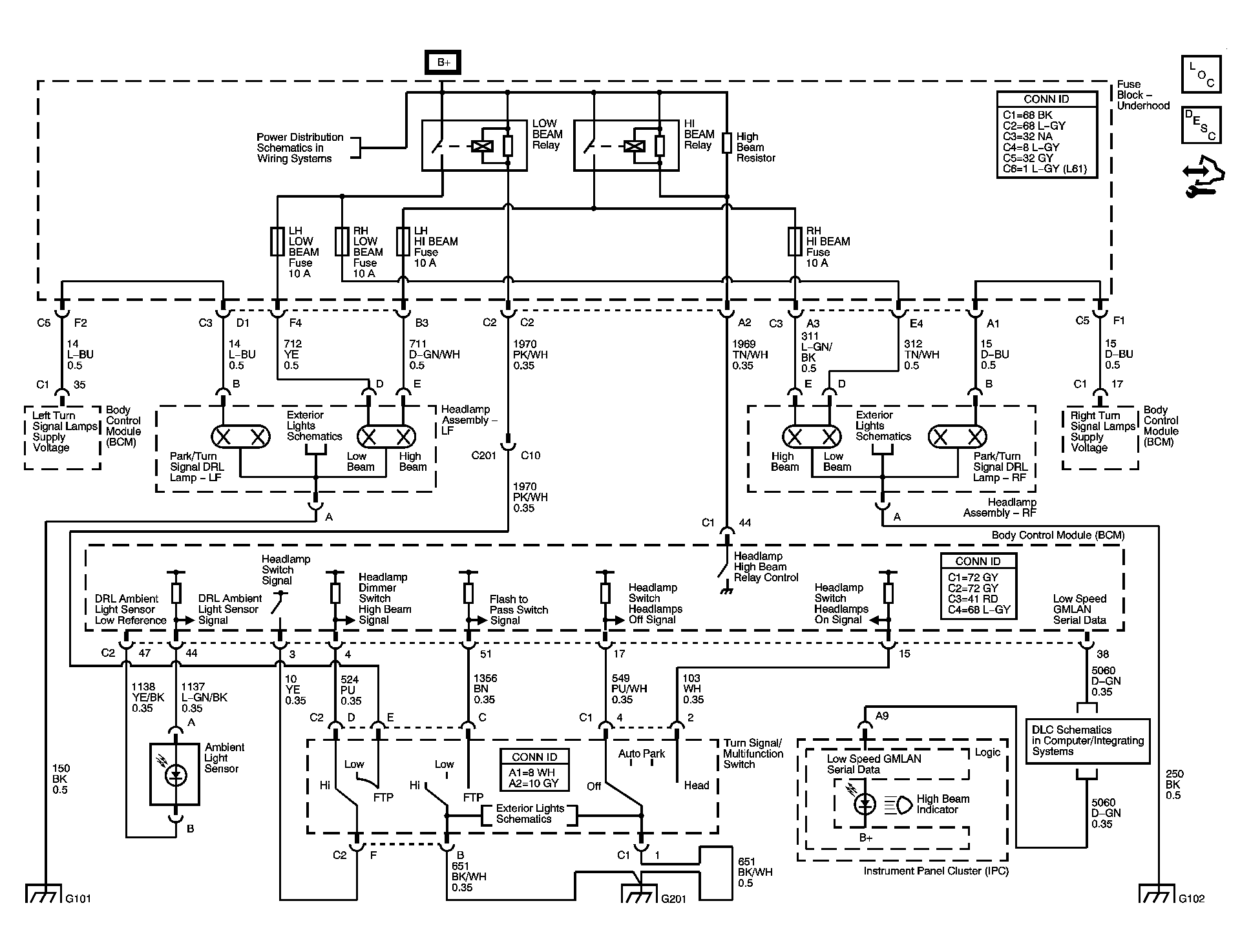

Fig 1: Headlights/Daytime Running Lights (DRL) Schematic

GM1526327

Courtesy of GENERAL MOTORS CORP.
