Exterior Lights Schematics

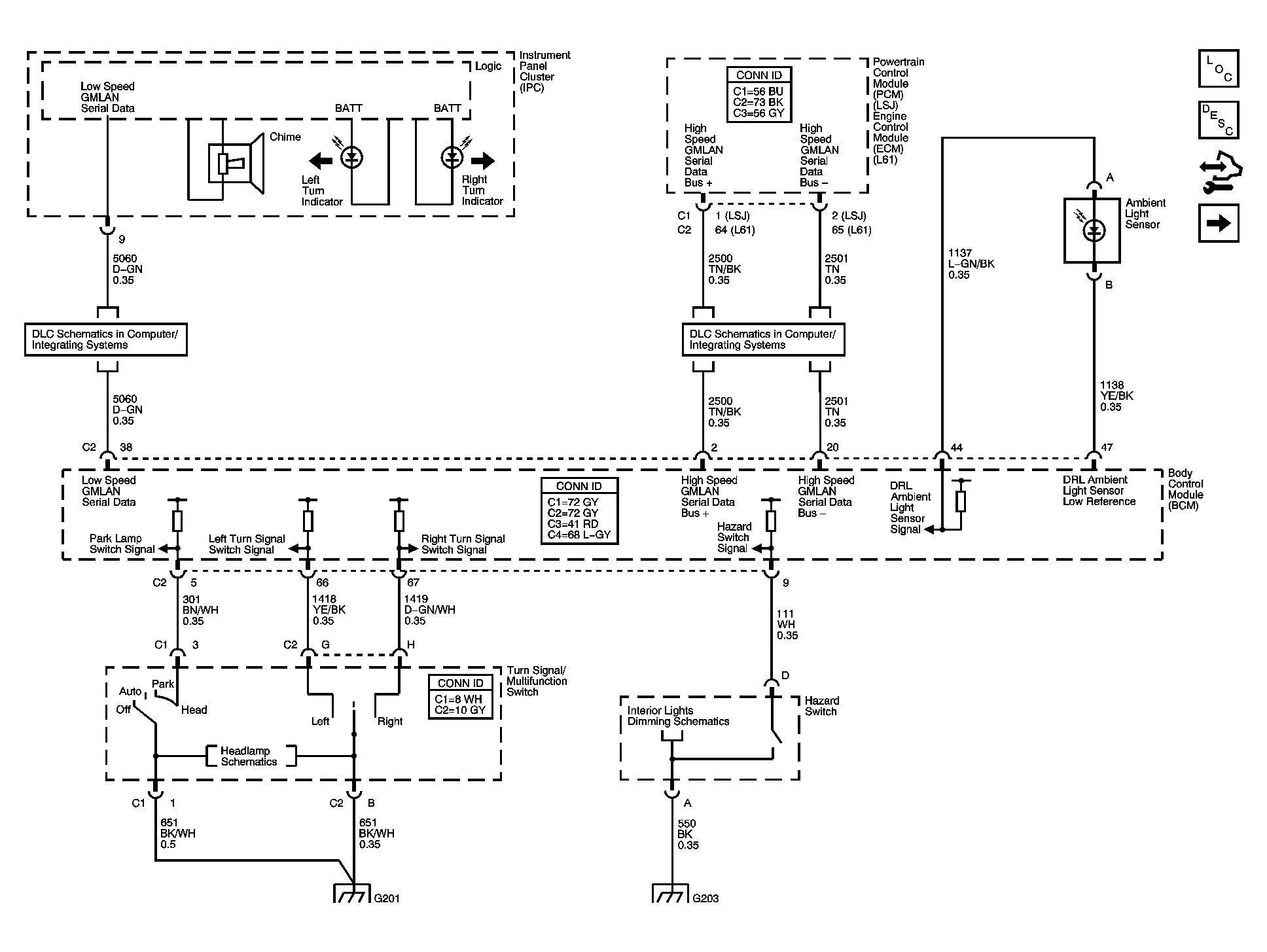

Fig 1: Exterior Lights Schematic
GM1528128Courtesy of GENERAL MOTORS CORP.

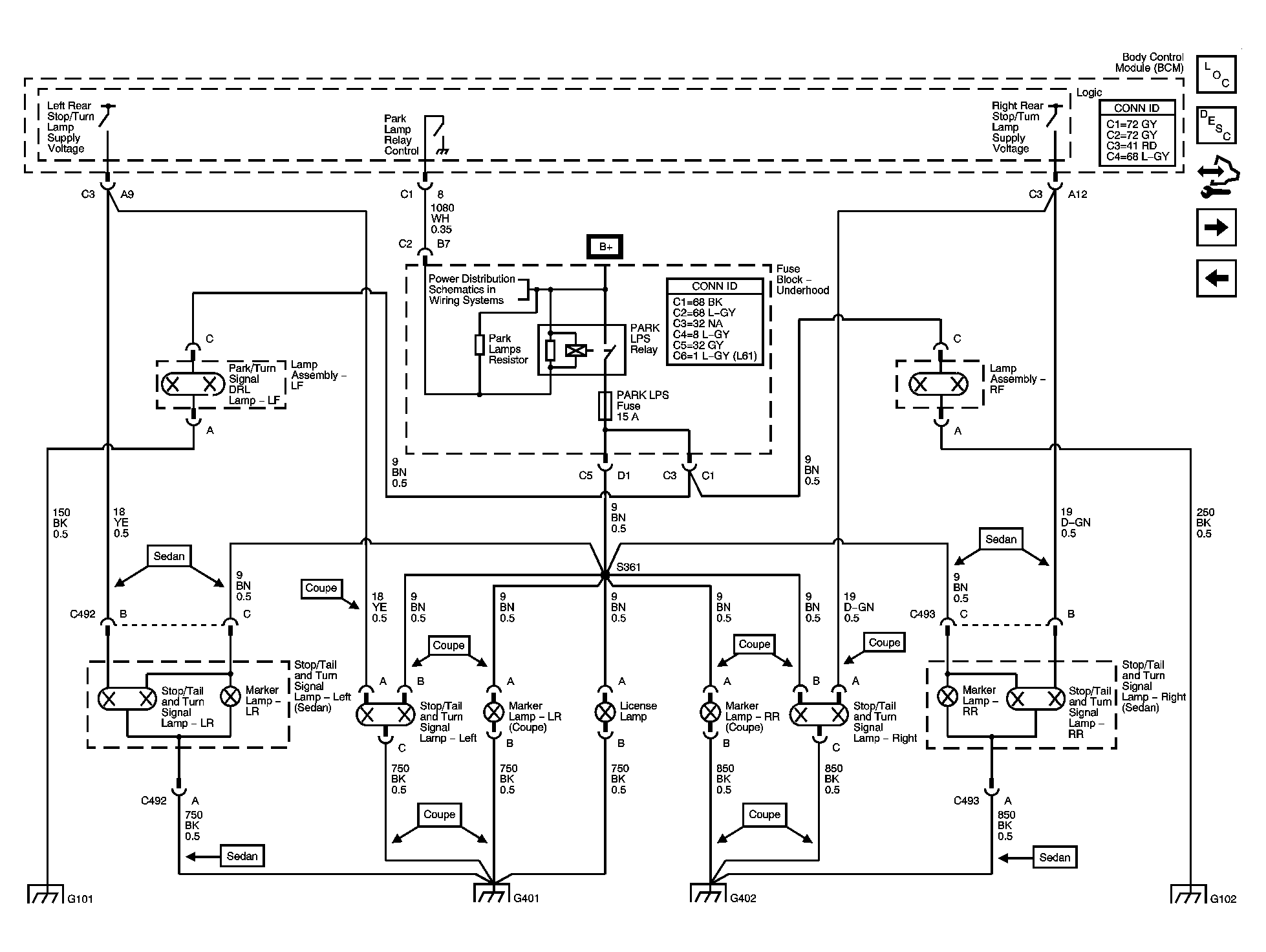

Fig 2: Park Lamps, Stop Lamps, Tail Lamps & Turn Signal Lamps Schematic
GM1528129Courtesy of GENERAL MOTORS CORP.

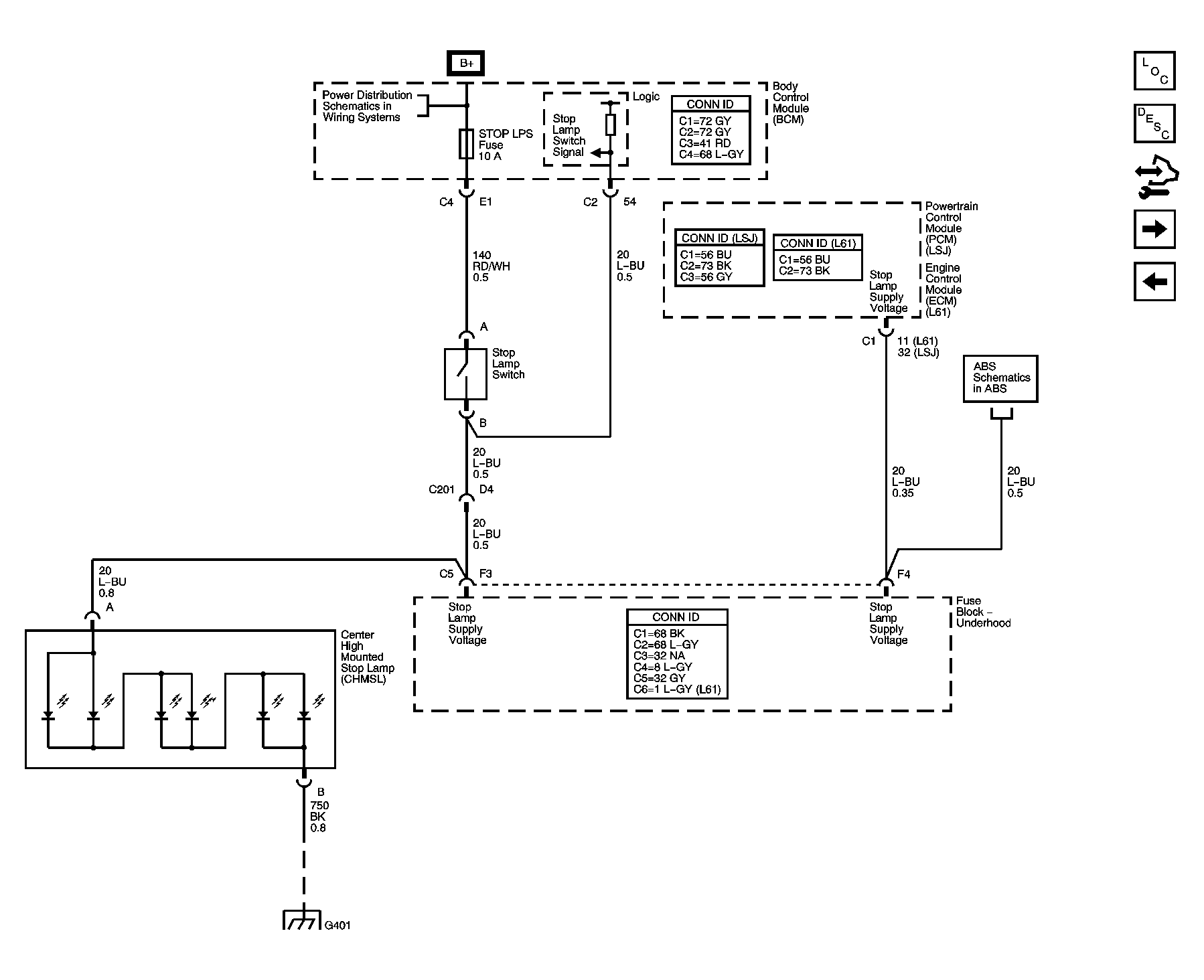

Fig 3: Center High Mounted Stop Lamp (CHMSL), B+ Schematic
GM1528131Courtesy of GENERAL MOTORS CORP.

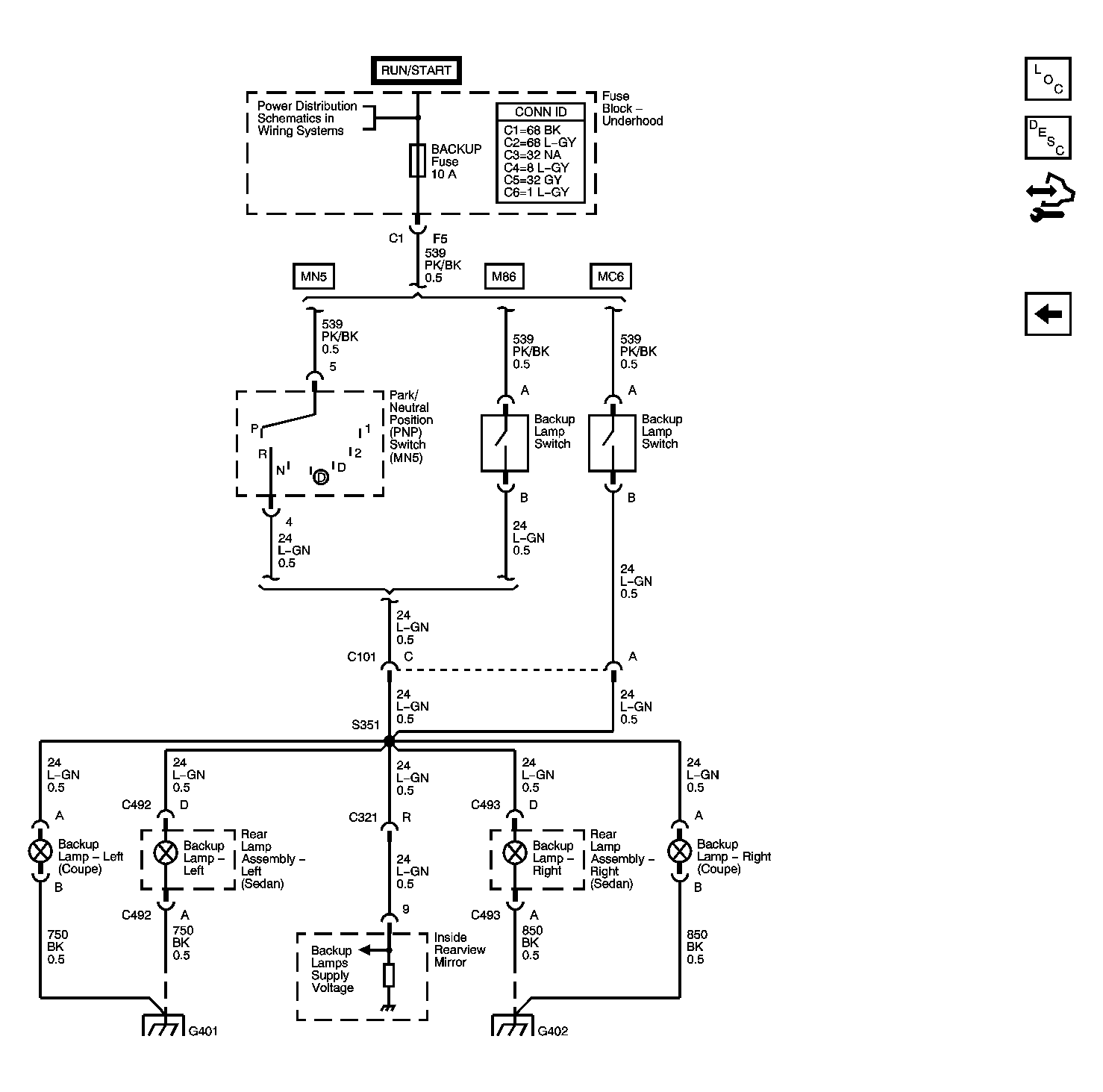

Fig 4: Backup Lamps Schematic
GM1528133Courtesy of GENERAL MOTORS CORP.
