Instrument Cluster Schematics

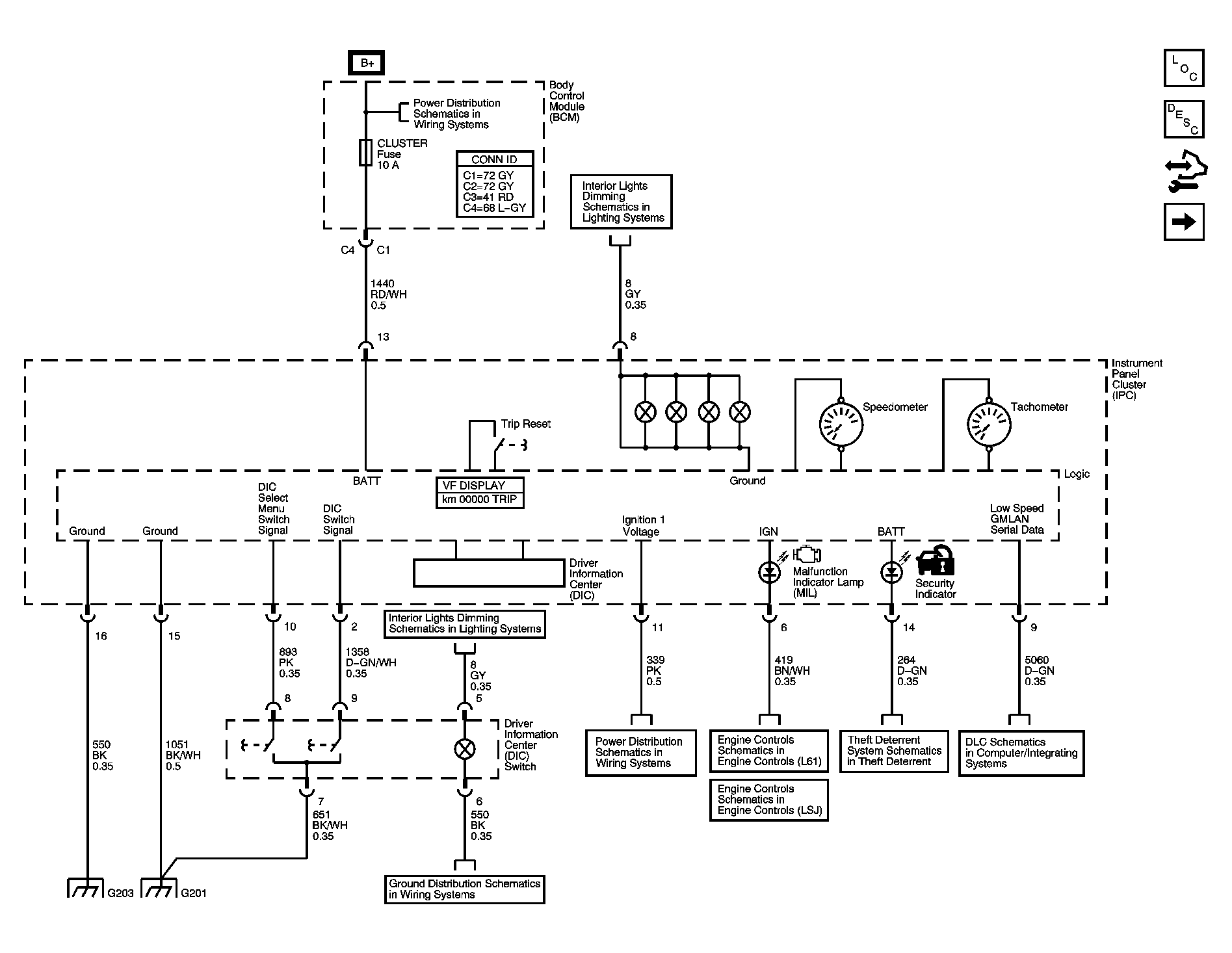

Fig 1: Power, Ground, and Illumination MIL Schematic
GM1510515Courtesy of GENERAL MOTORS CORP.

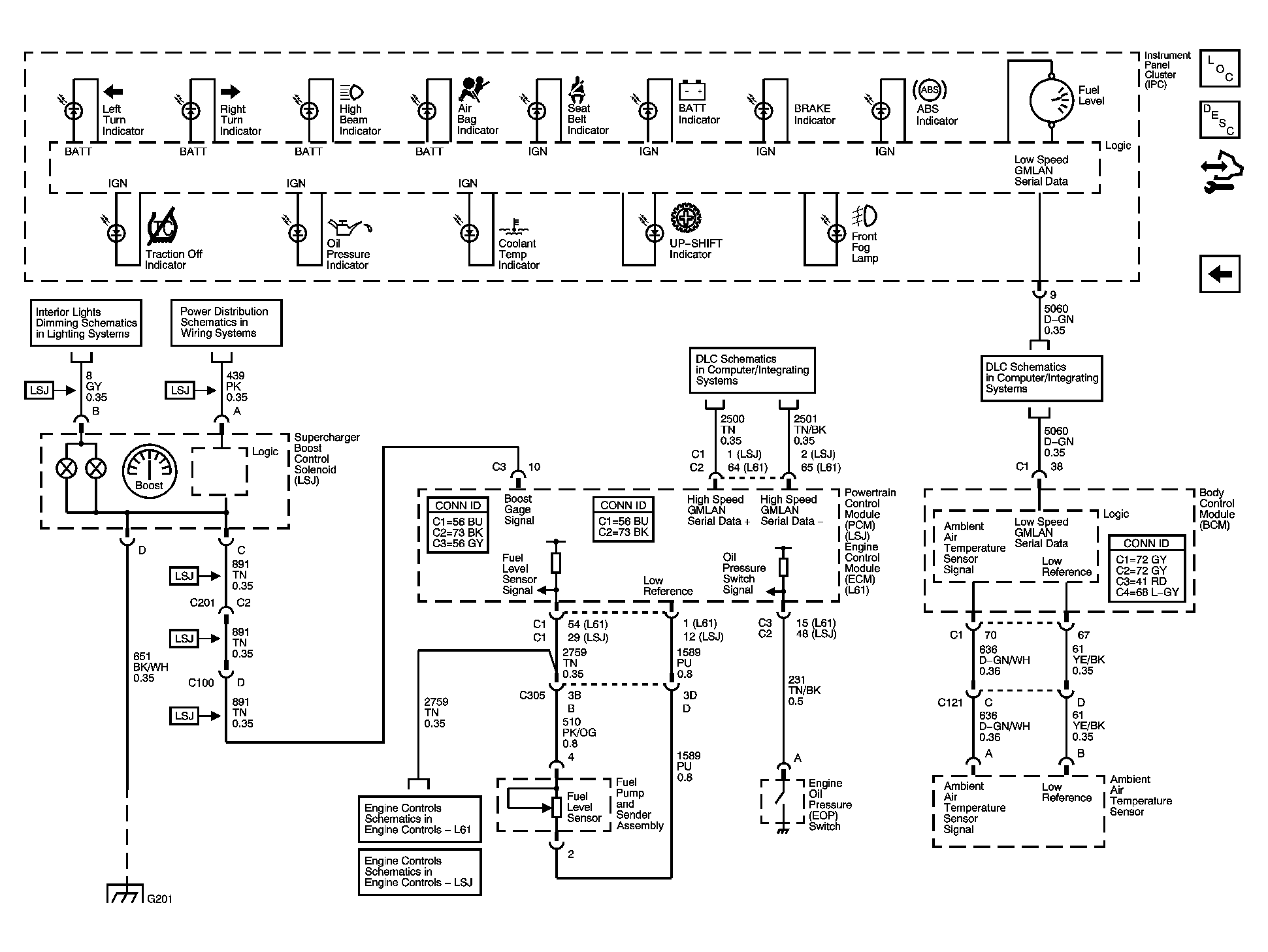

Fig 2: Ambient Air Temperature Sensor, EOP Sensor, Fuel Level Sensor & Indicators Schematic
GM1510519Courtesy of GENERAL MOTORS CORP.
