SIR Schematics

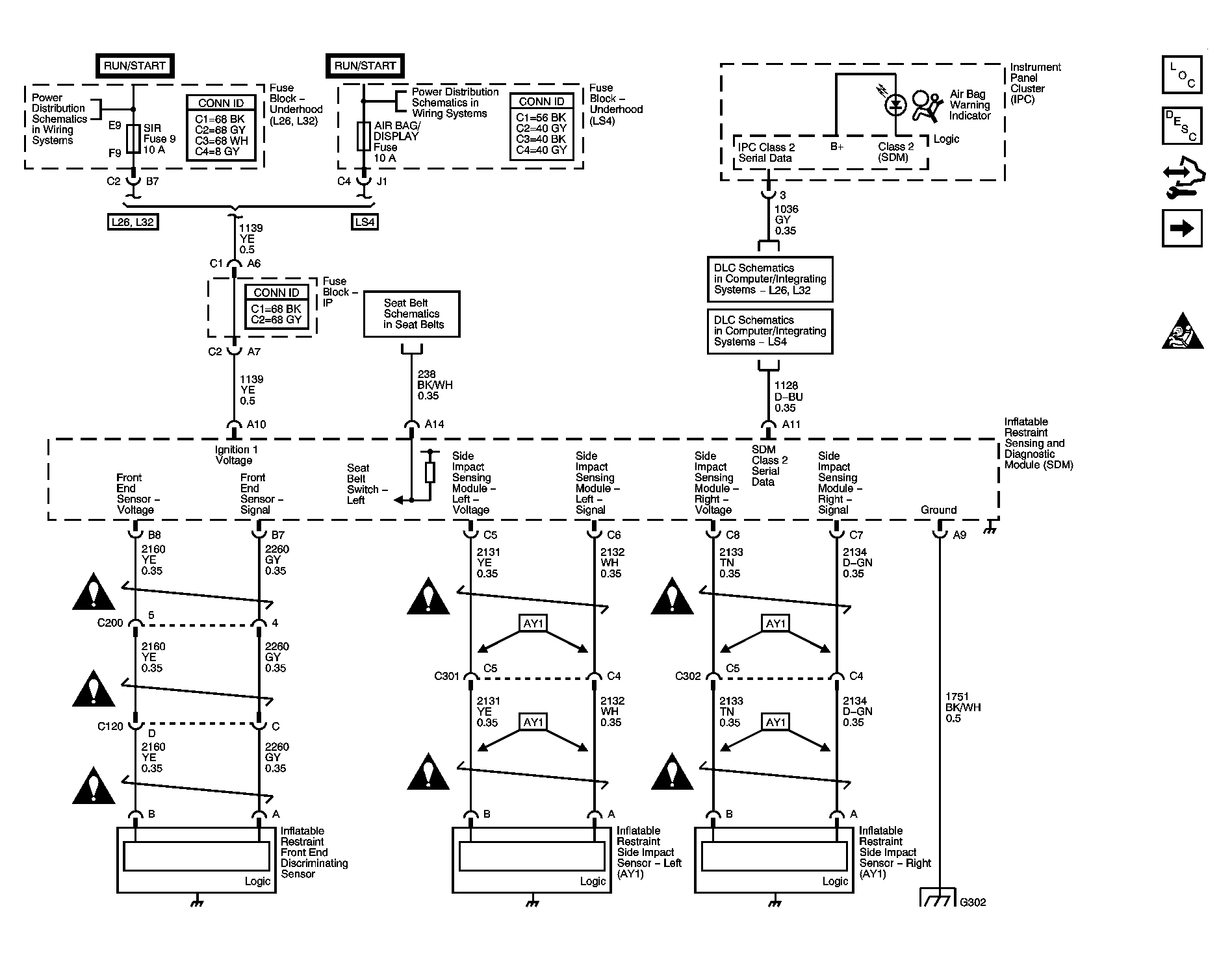

Fig 1: Power, Ground, DLC, Indicators, Sensors and References Schematics

GM1457745

Courtesy of GENERAL MOTORS CORP.

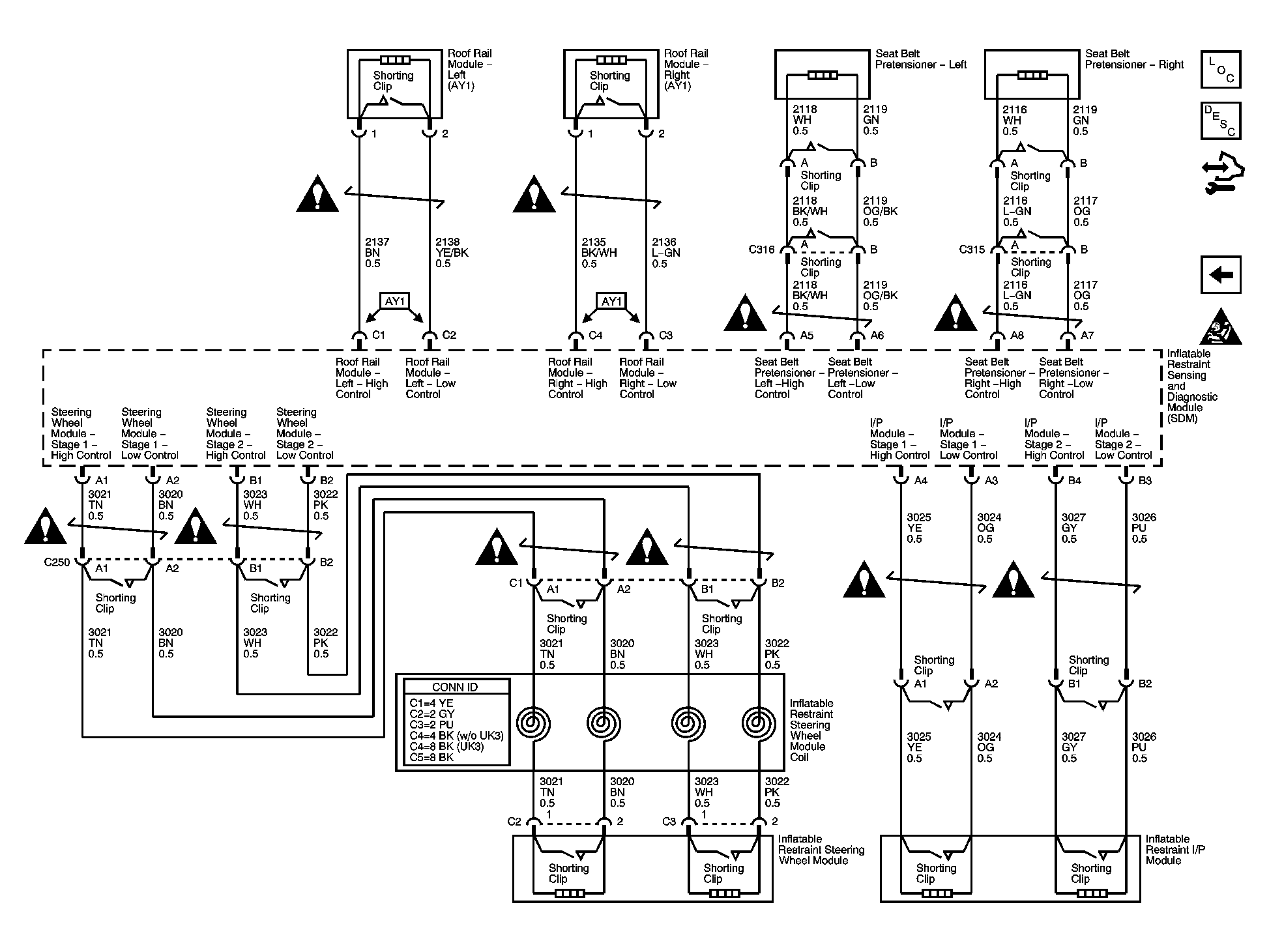

Fig 2: Deployment Loops Schematics

GM1457747

Courtesy of GENERAL MOTORS CORP.
