HVAC Schematics

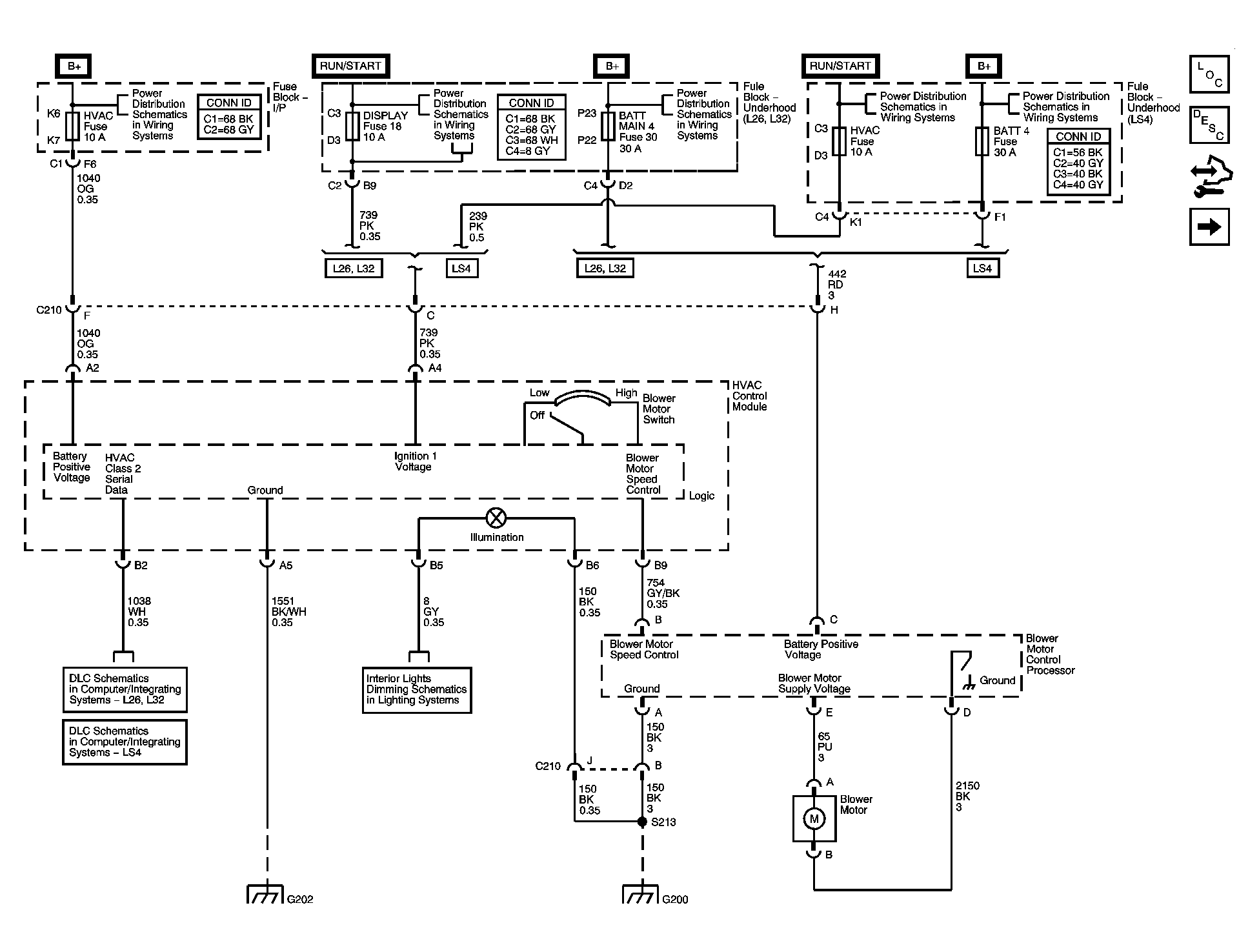

Fig 1: Power, Ground and Blower Motor Controls Schematics
GM1457725Courtesy of GENERAL MOTORS CORP.

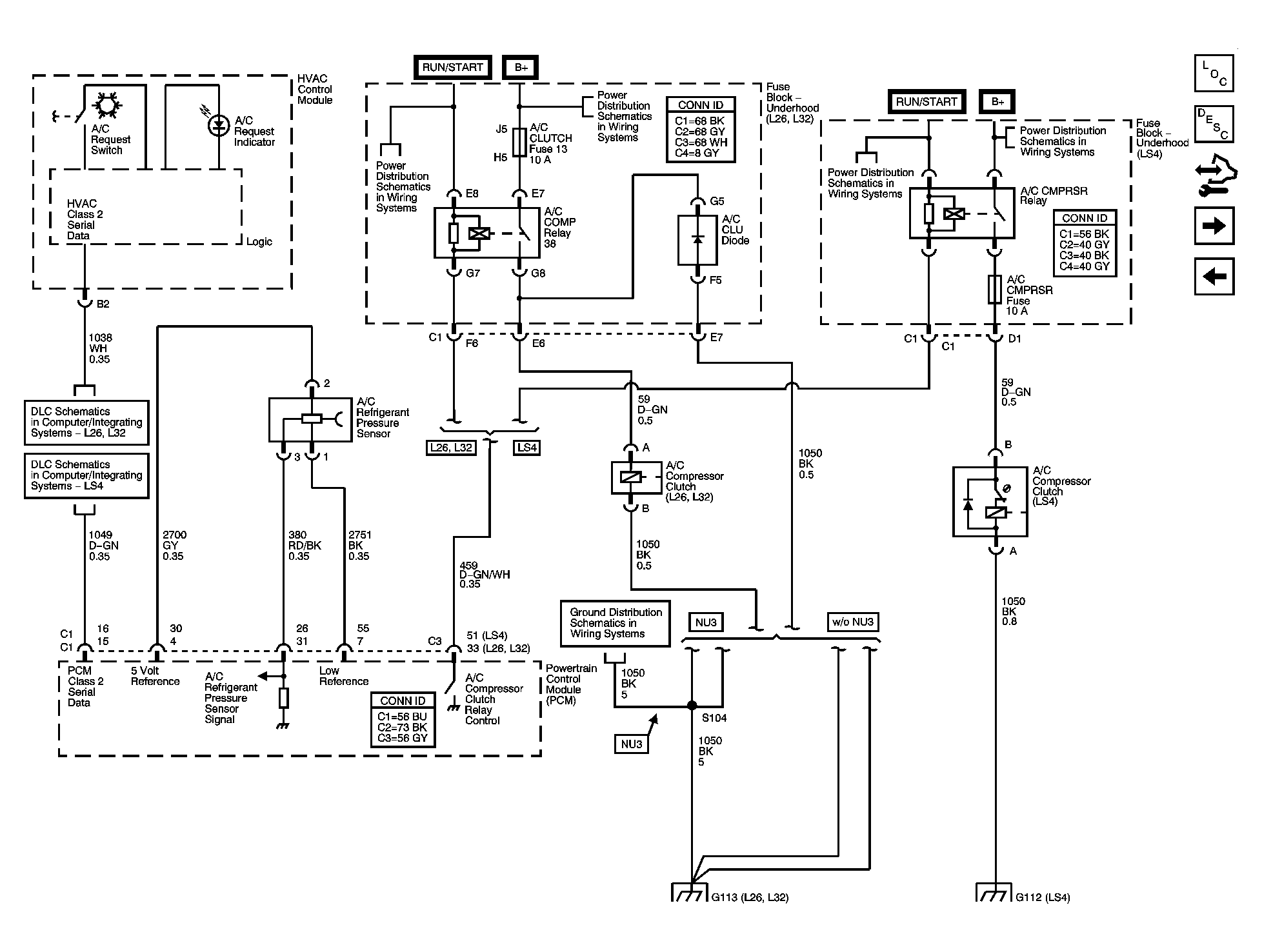

Fig 2: A/C Compressor Controls Schematics
GM1457727Courtesy of GENERAL MOTORS CORP.

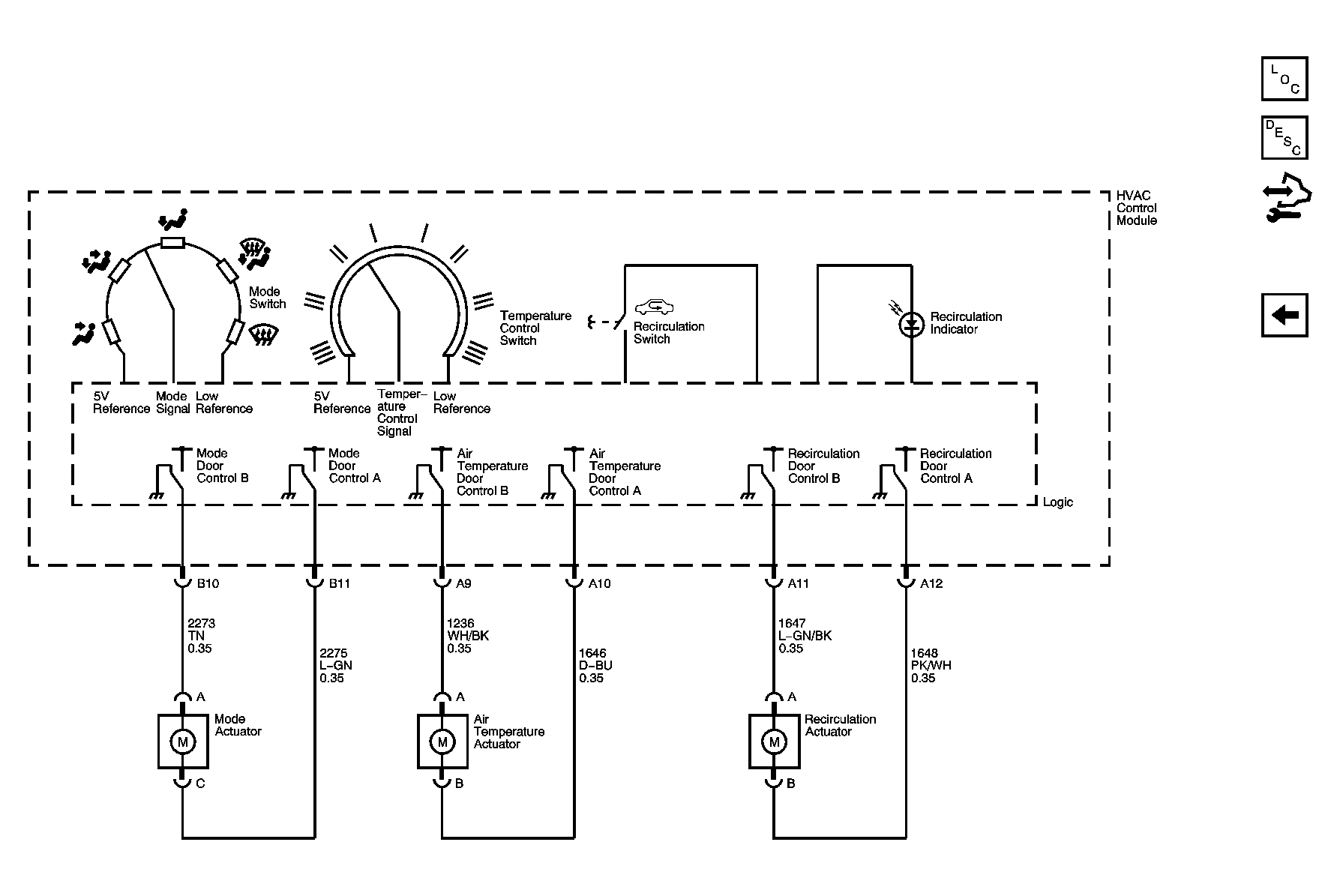

Fig 3: Mode and Air Temperature Controls Schematics
GM1457728Courtesy of GENERAL MOTORS CORP.
