HVAC Schematics

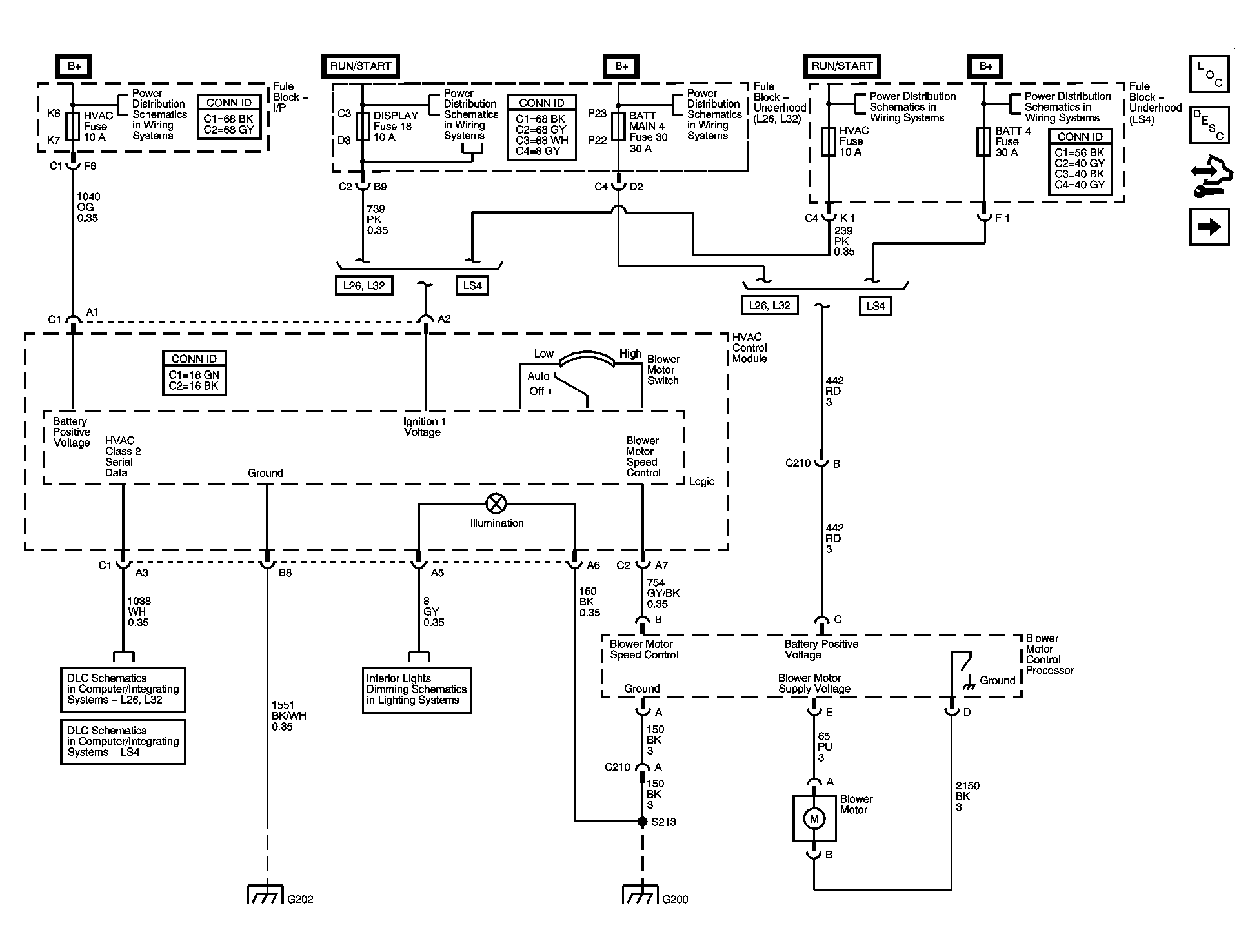

Fig 1: Power, Ground, and Blower Motor Controls Schematics
GM1505510Courtesy of GENERAL MOTORS CORP.

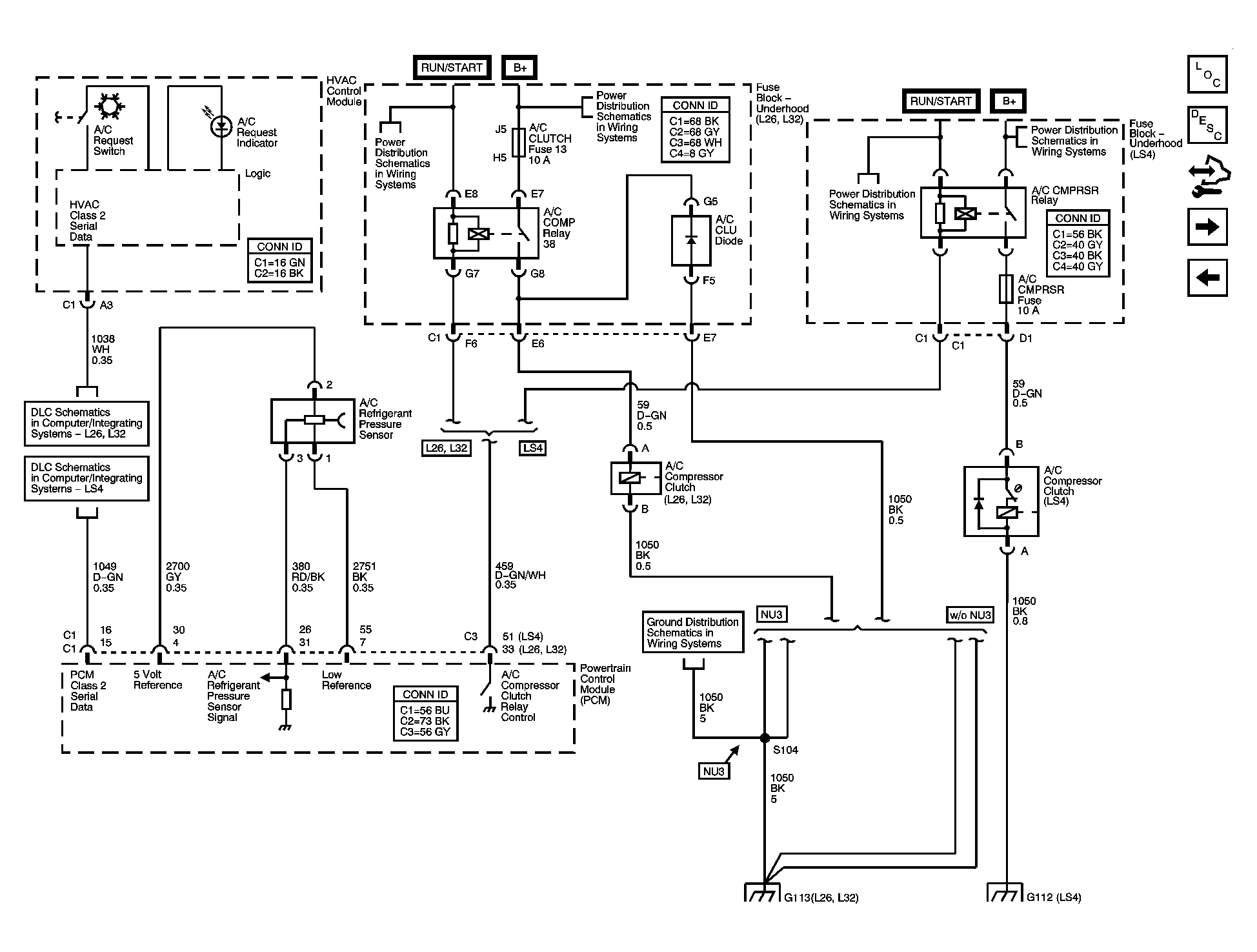

Fig 2: A/C Compressor Controls Schematics
GM1505512Courtesy of GENERAL MOTORS CORP.

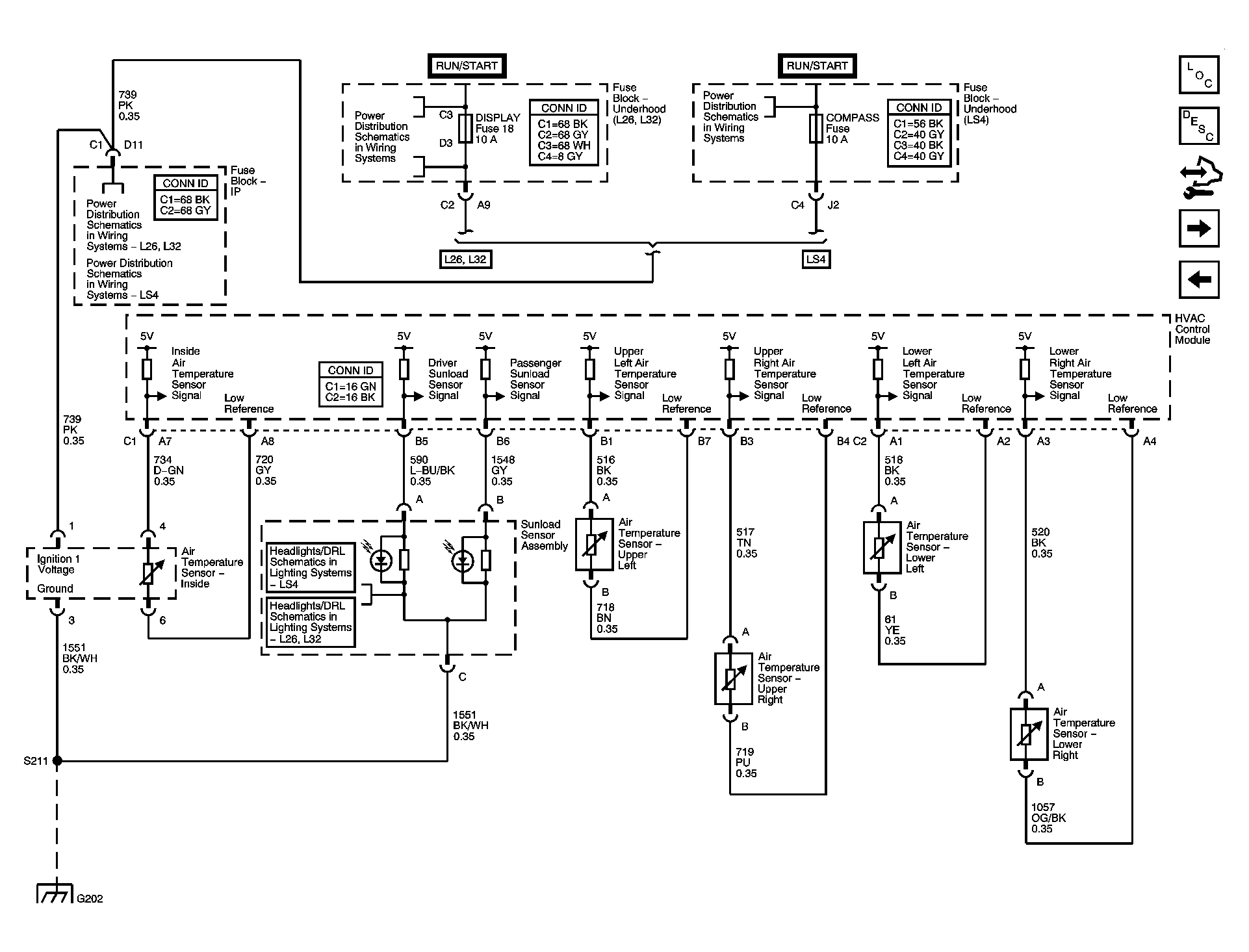

Fig 3: Sensors Schematics
GM1505513Courtesy of GENERAL MOTORS CORP.

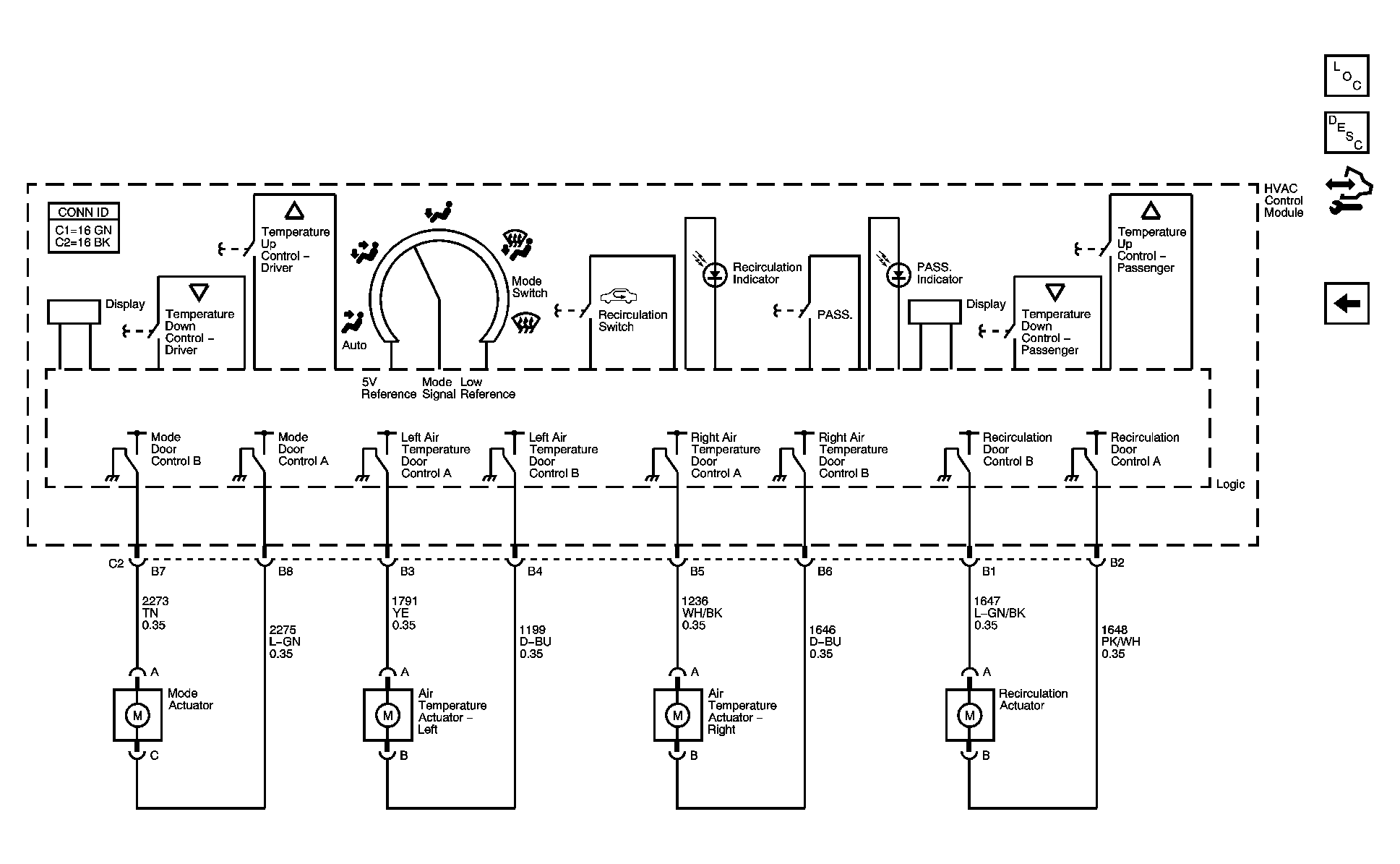

Fig 4: Actuators Schematics
GM1505514Courtesy of GENERAL MOTORS CORP.
