Starting and Charging Schematics

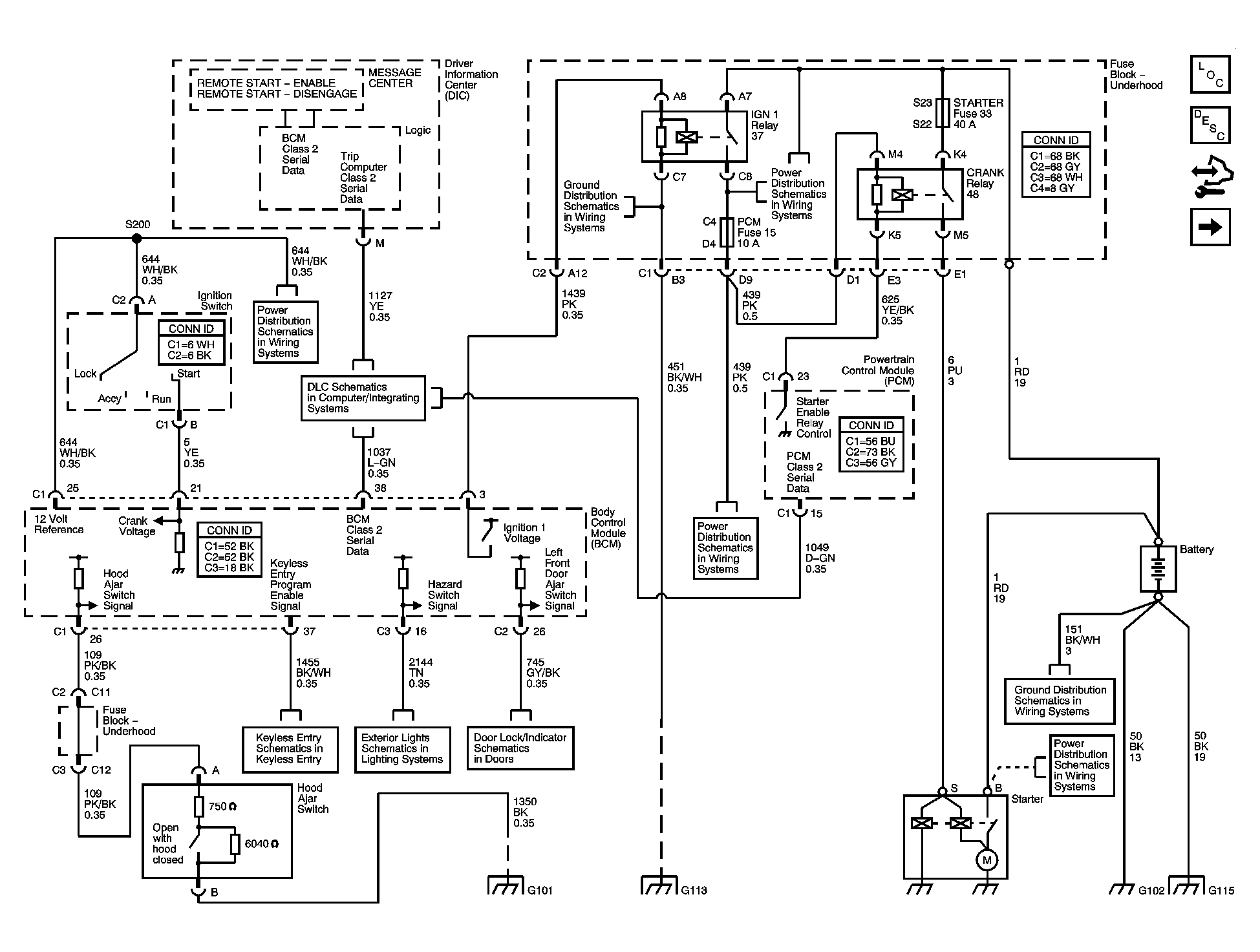

Fig 1: Starter Schematics (L26, L32)
GM1457689Courtesy of GENERAL MOTORS CORP.

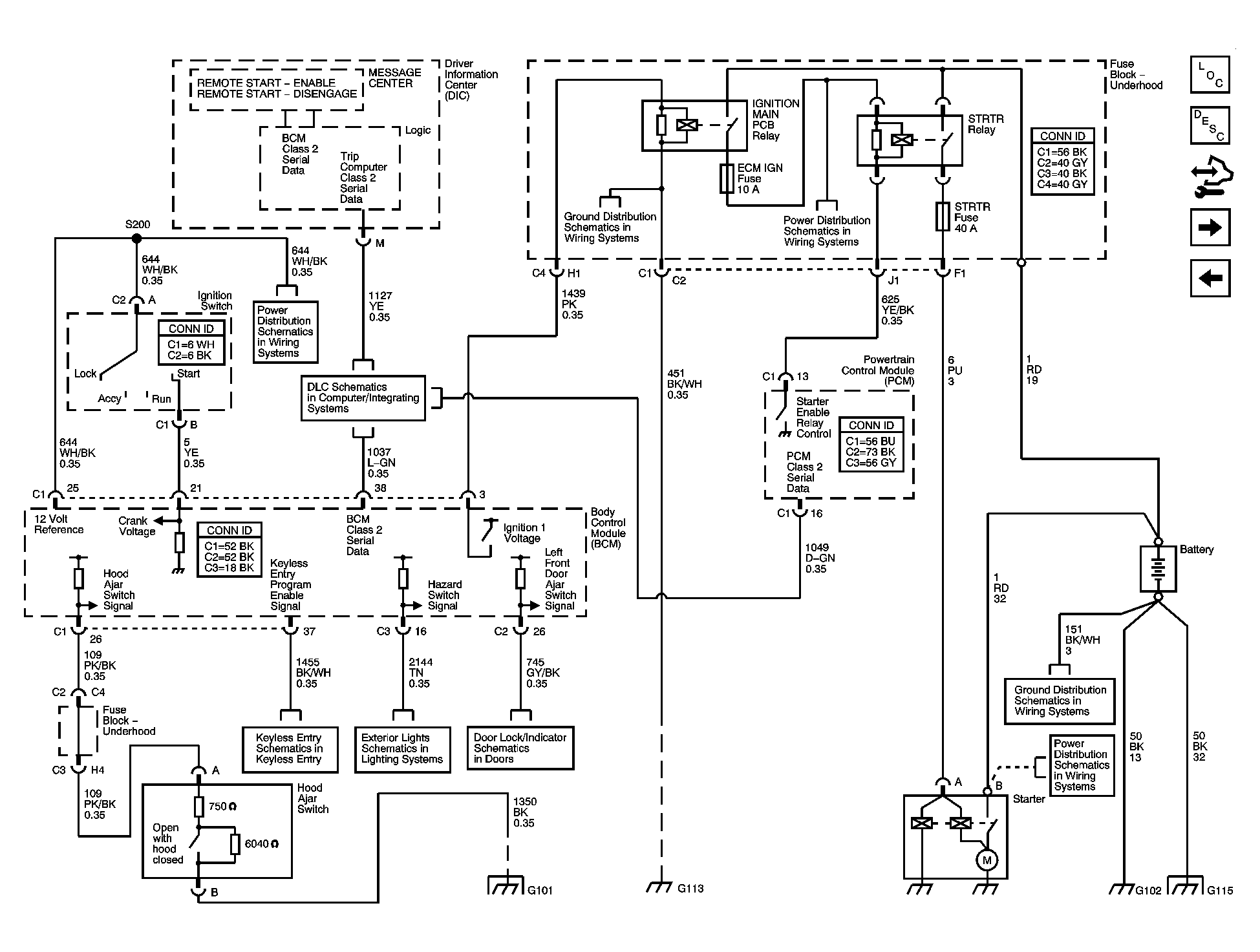

Fig 2: Starter Schematics (LS4)
GM1551041Courtesy of GENERAL MOTORS CORP.

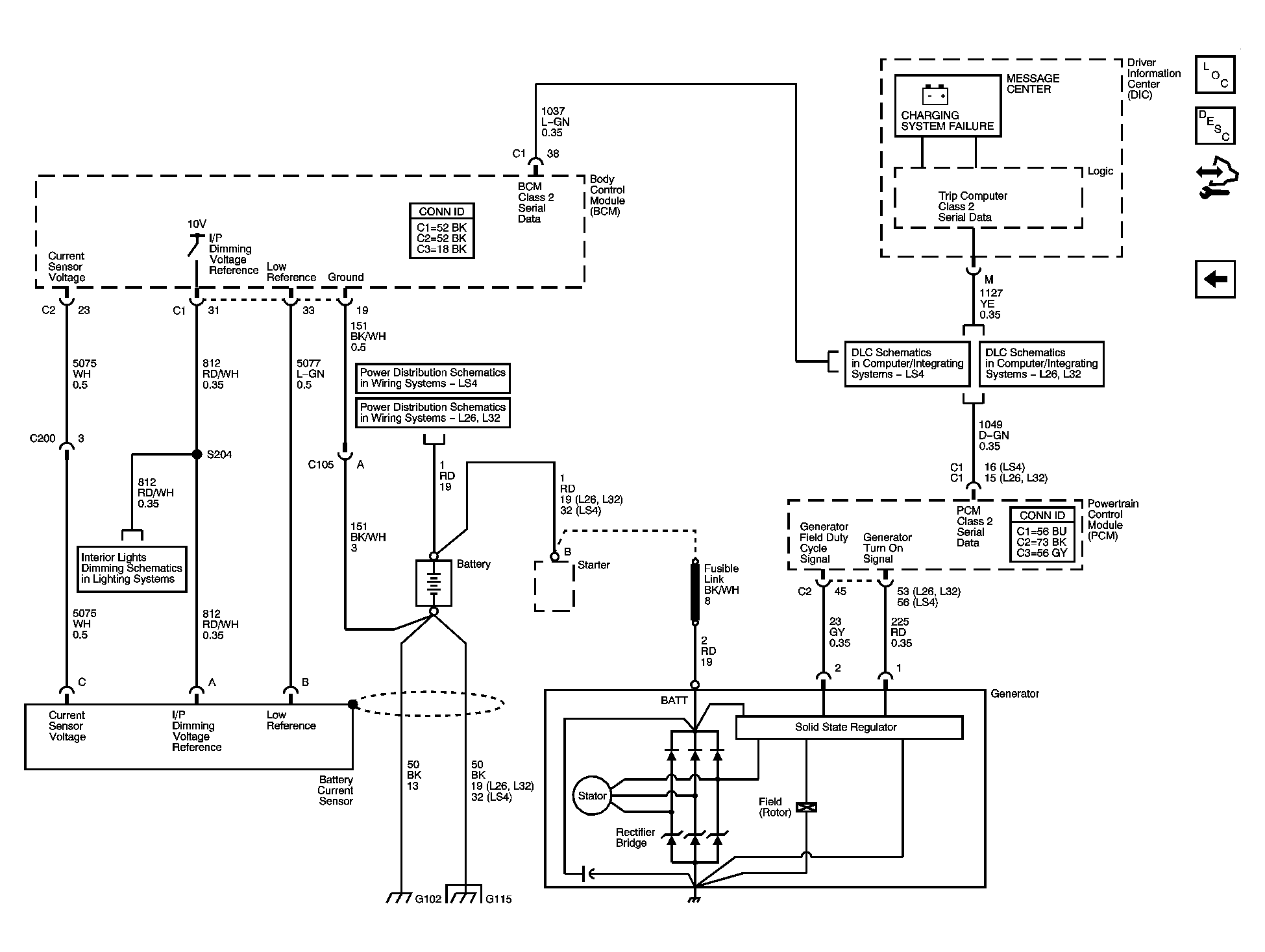

Fig 3: Generator Schematics
GM1457690Courtesy of GENERAL MOTORS CORP.
