Engine Cooling Schematics

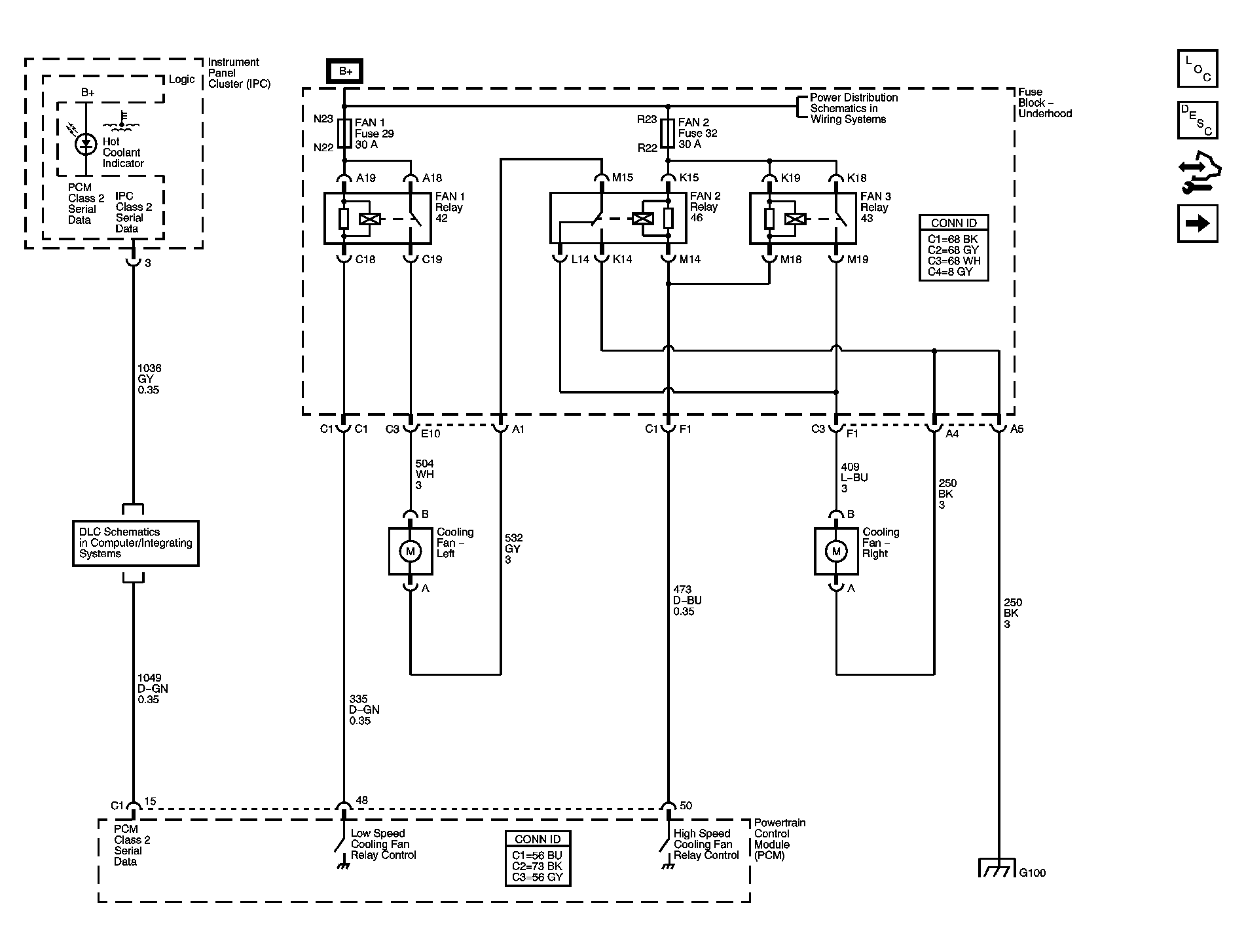

Fig 1: Engine Cooling Schematics - L26, L32

GM1457712

Courtesy of GENERAL MOTORS CORP.

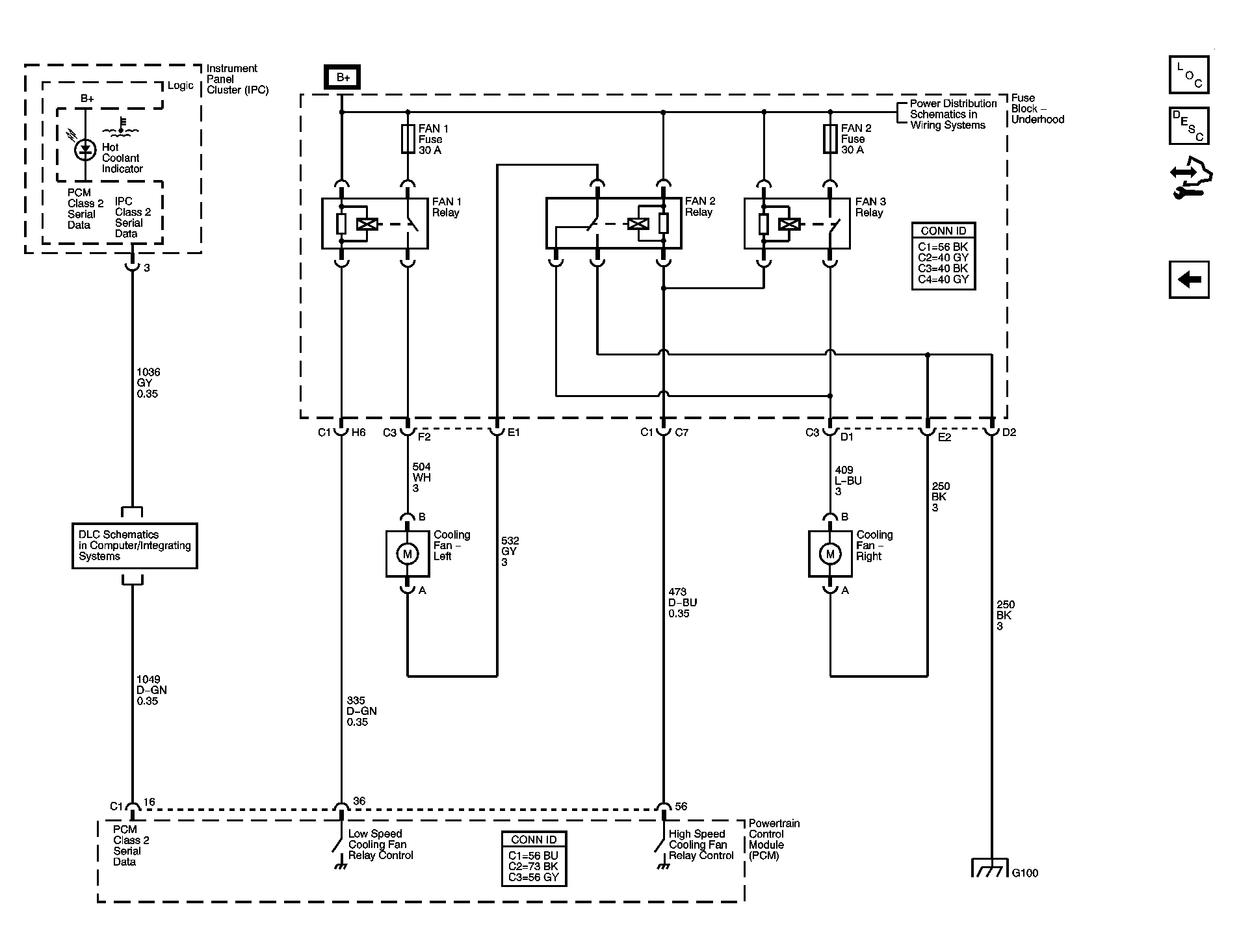

Fig 2: Engine Cooling Schematics - LS4

GM1556987

Courtesy of GENERAL MOTORS CORP.
