Ground Distribution Schematics

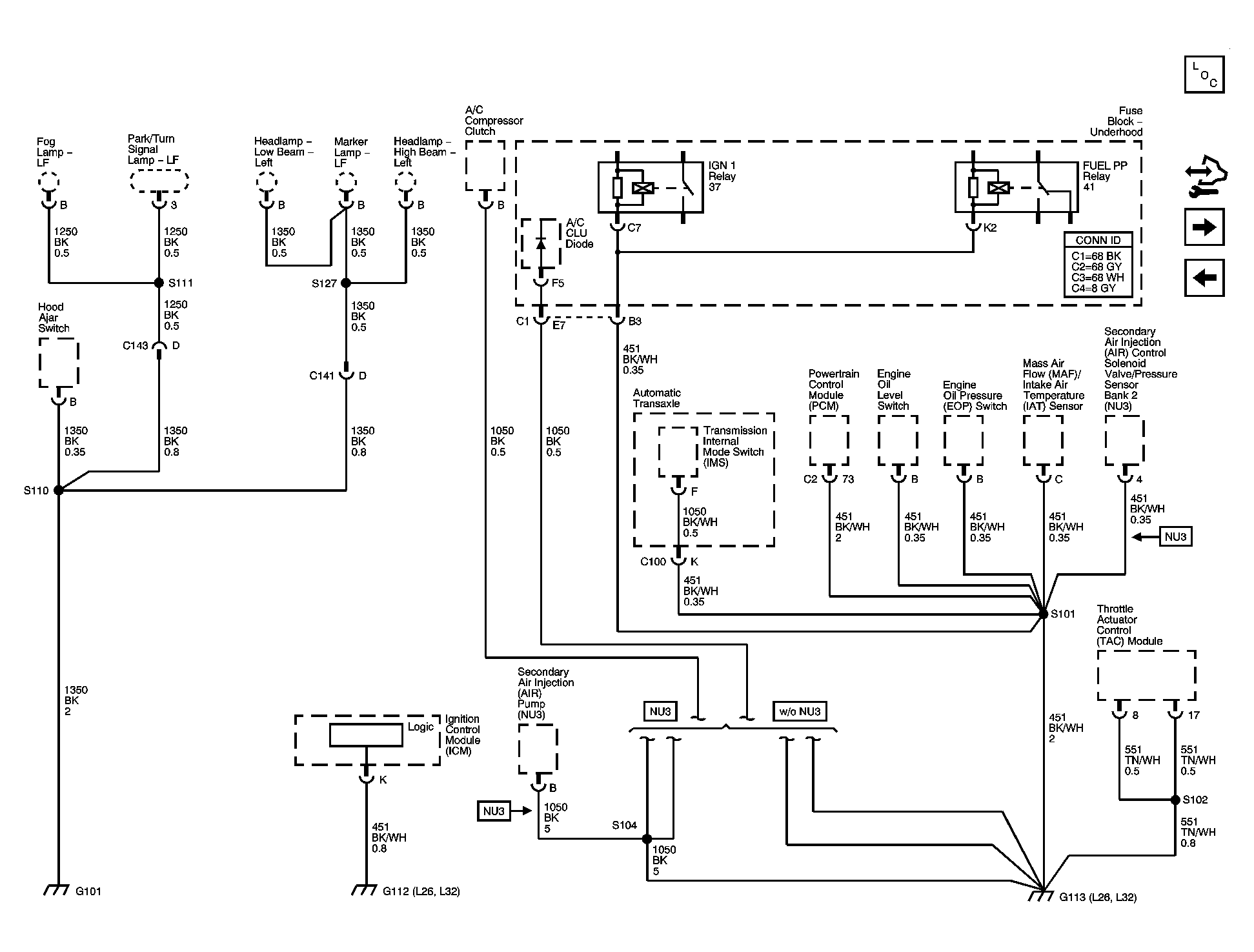

Fig 1: G100 Schematics

Courtesy of GENERAL MOTORS CORP.

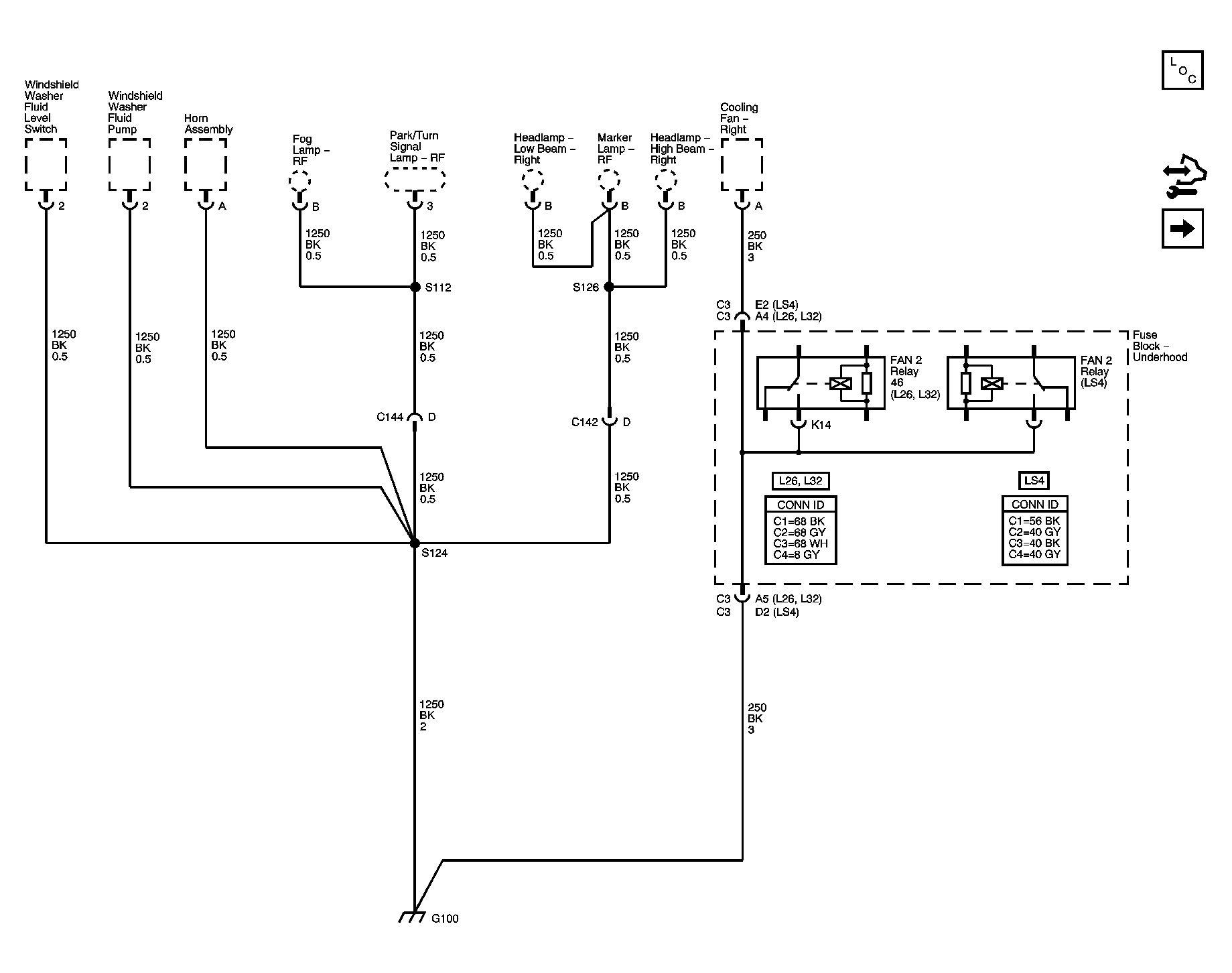

Fig 2: G101, G102, G111, G112 (L26, L32), and G113 (L26, L32) Schematics

Courtesy of GENERAL MOTORS CORP.

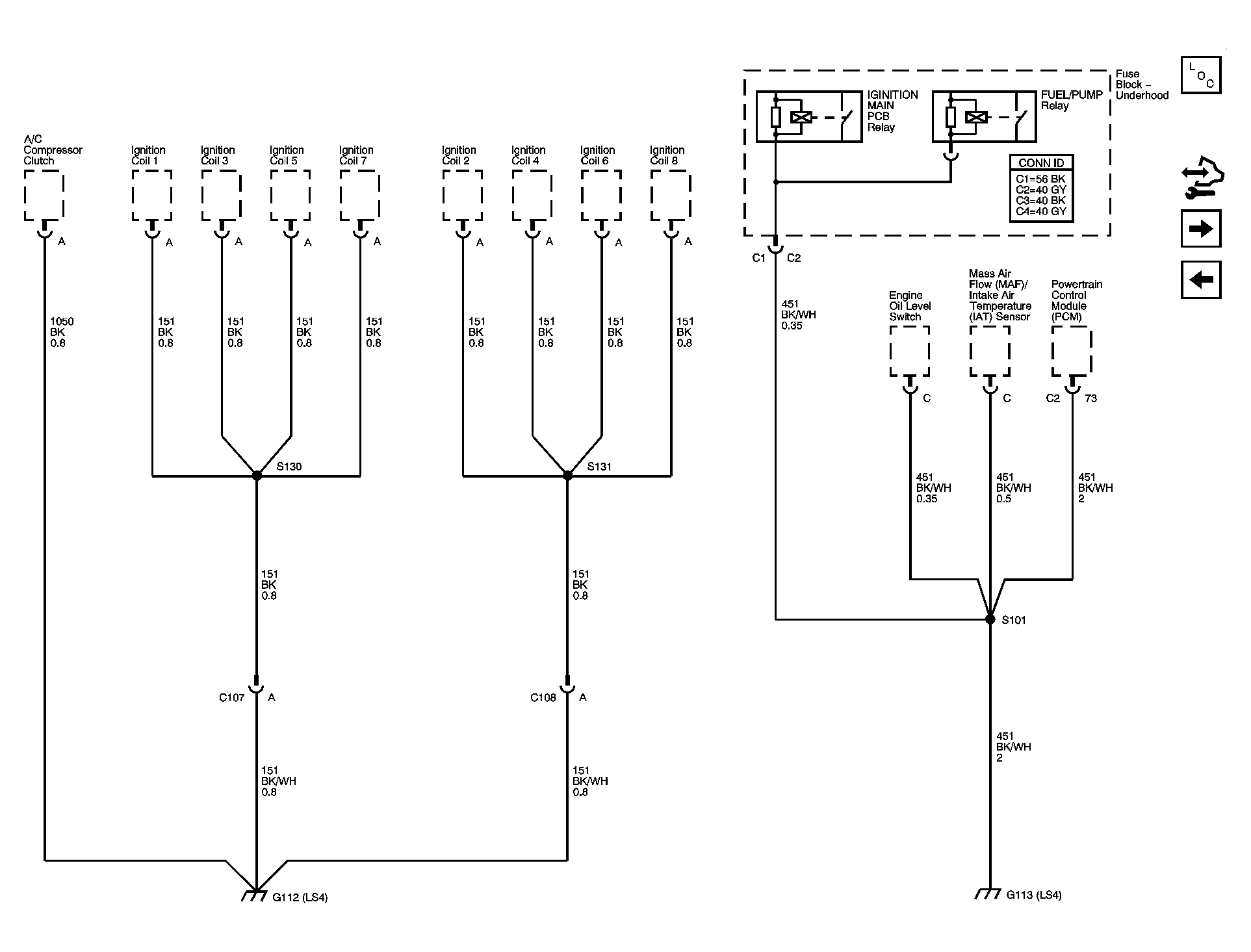

Fig 3: G112 (LS4), and G113 (LS4) Schematics

Courtesy of GENERAL MOTORS CORP.

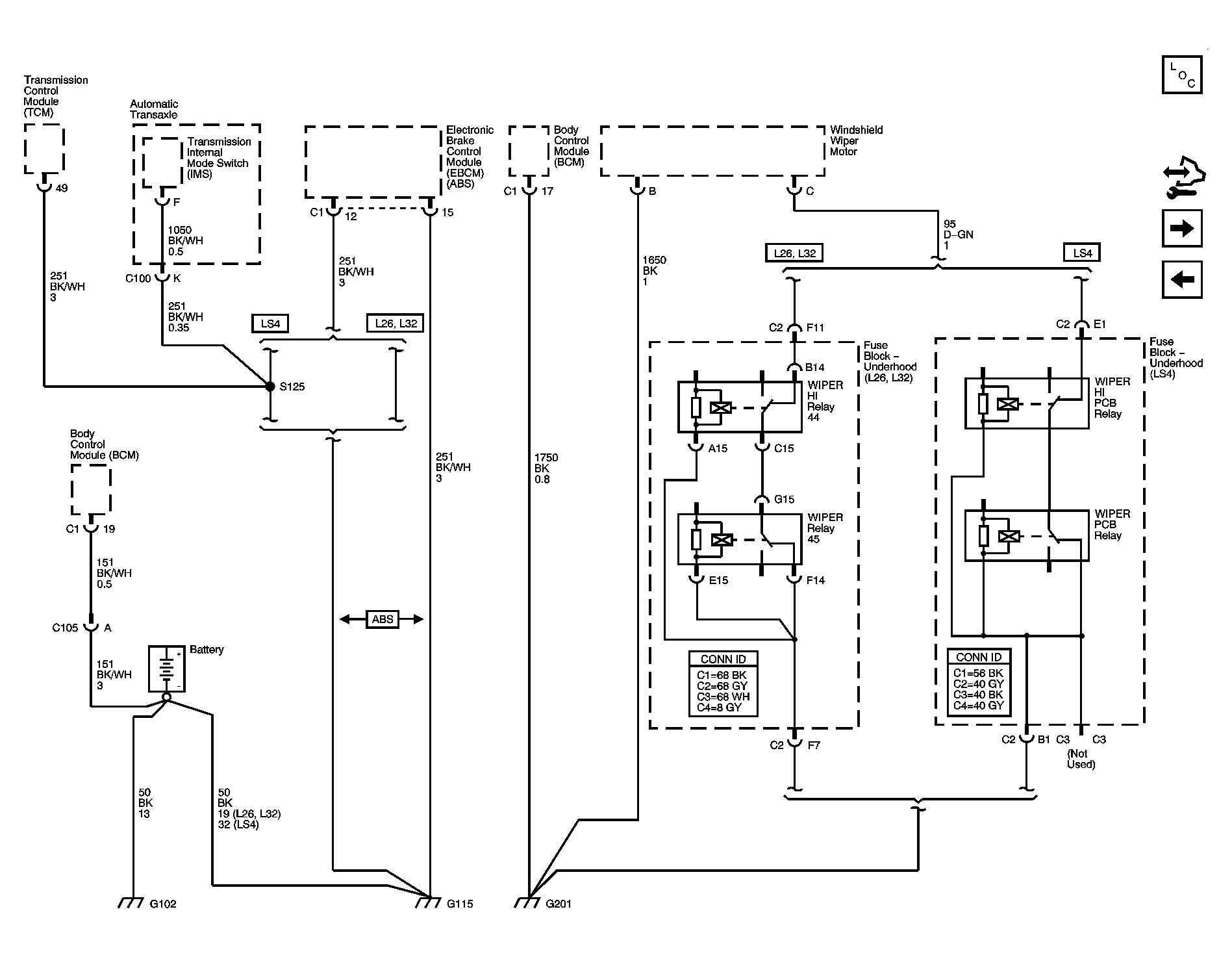

Fig 4: G115, and G201 Schematics

Courtesy of GENERAL MOTORS CORP.

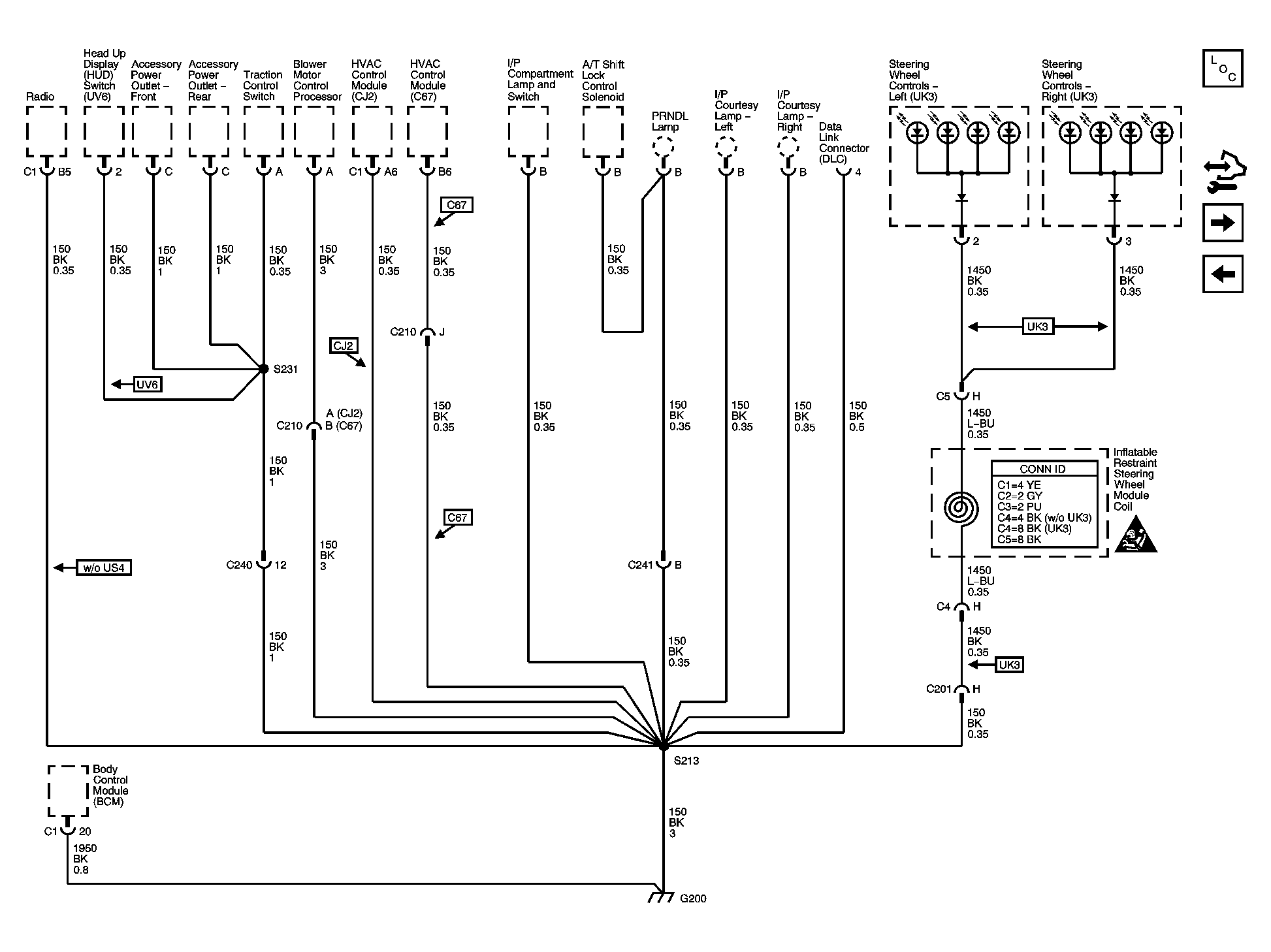

Fig 5: G200 Schematics

Courtesy of GENERAL MOTORS CORP.

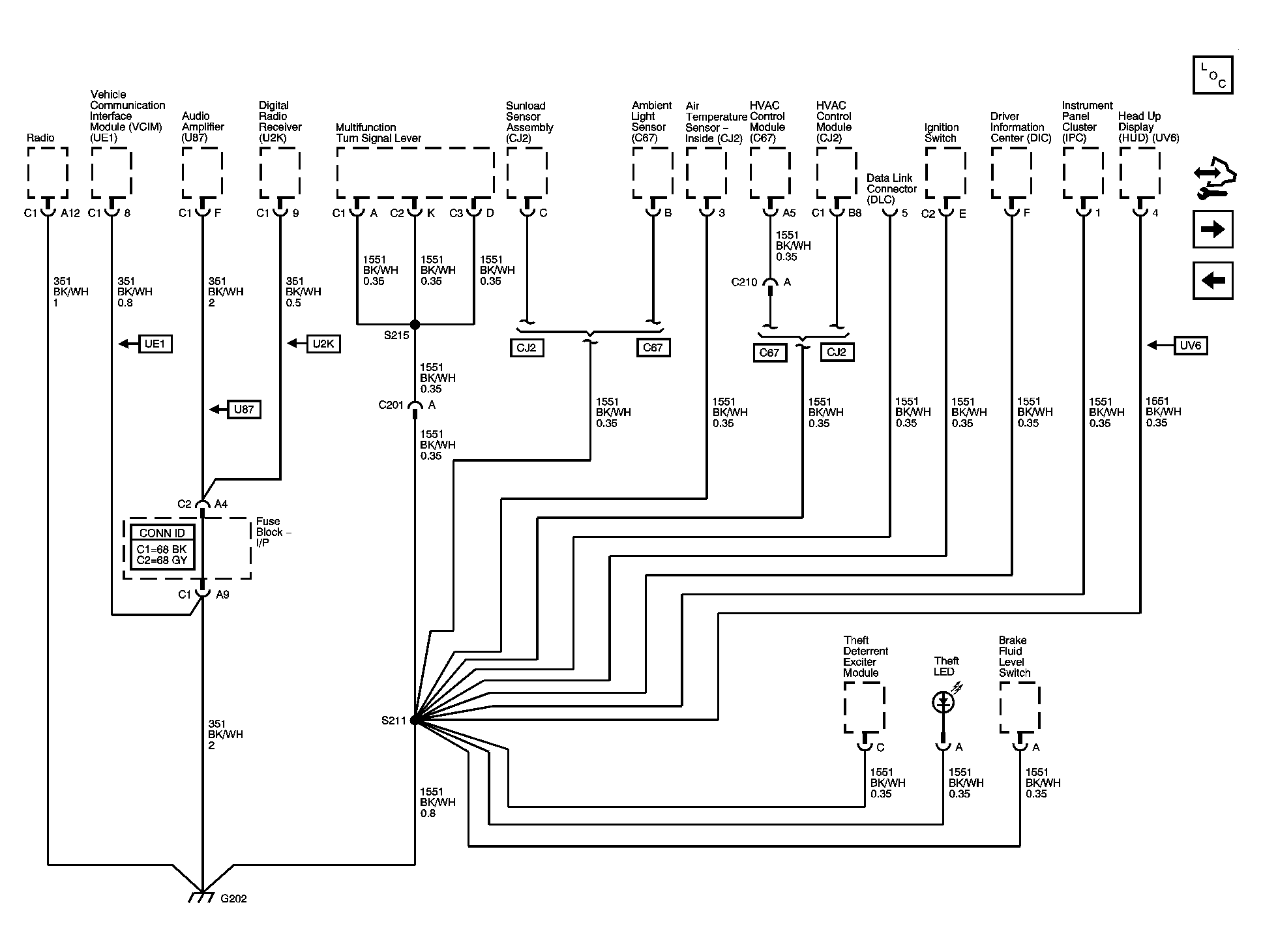

Fig 6: G202 Schematics

Courtesy of GENERAL MOTORS CORP.

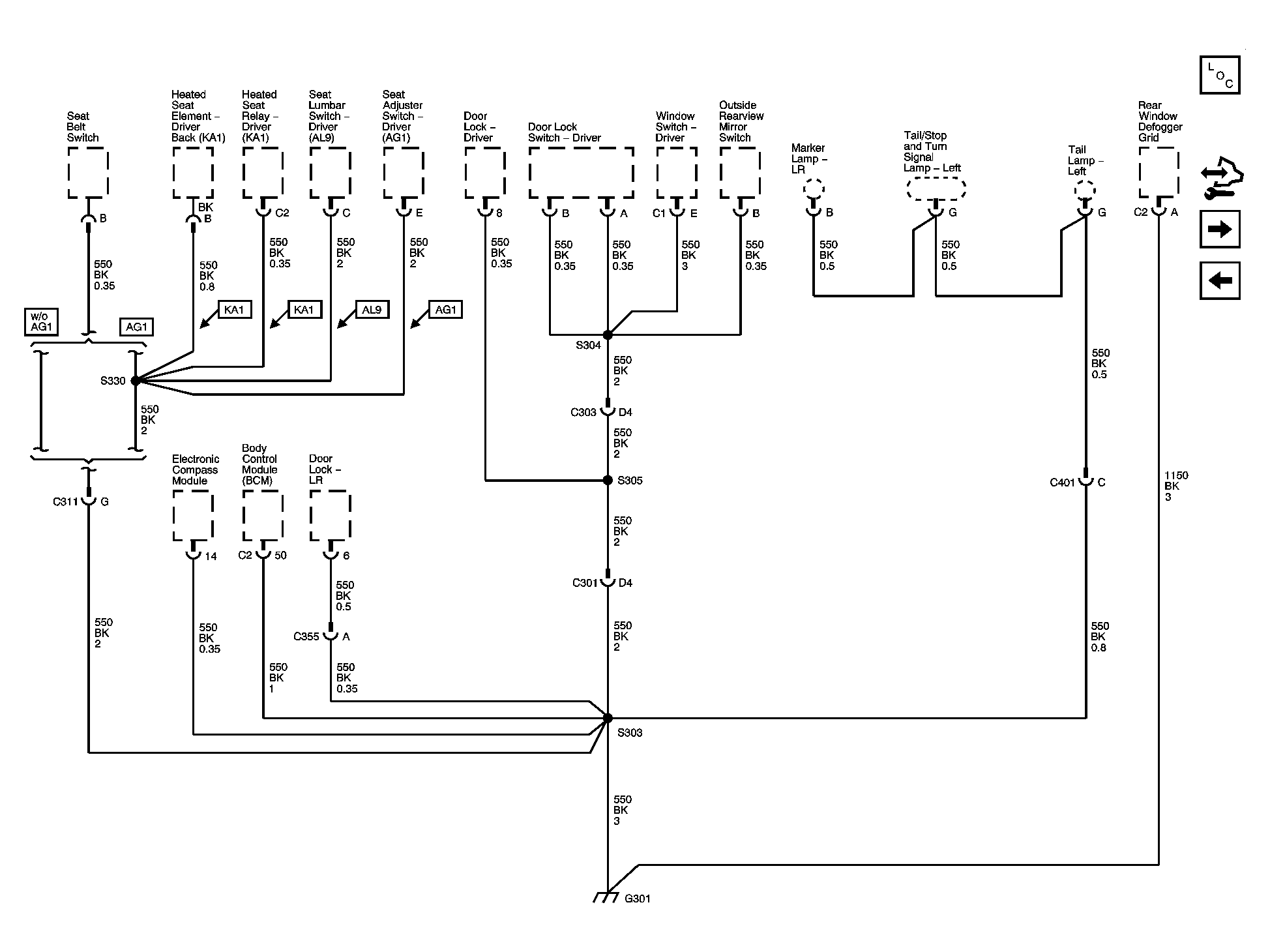

Fig 7: G301 Schematics

Courtesy of GENERAL MOTORS CORP.

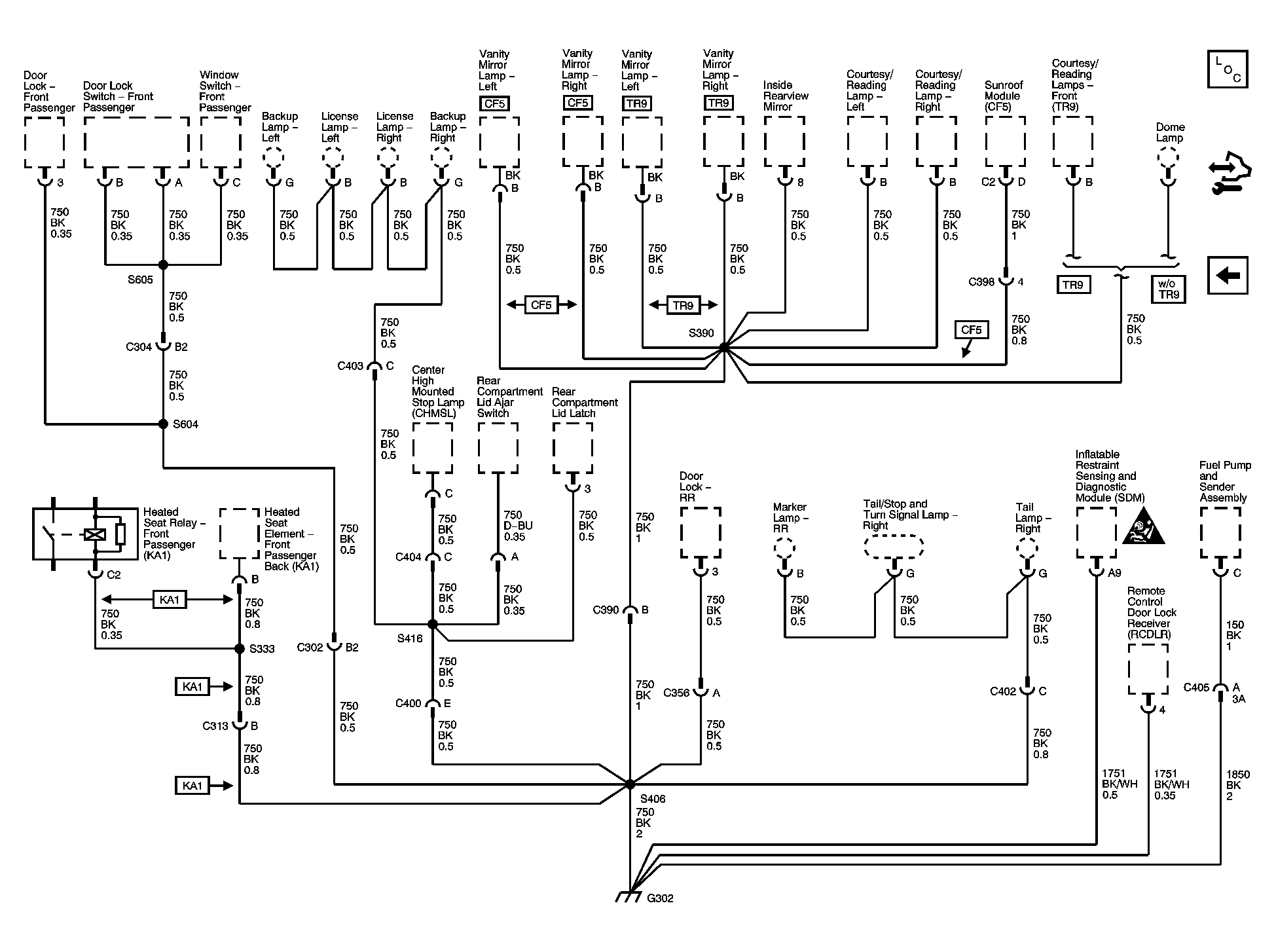

Fig 8: G302 Schematics

Courtesy of GENERAL MOTORS CORP.
