Instrument Cluster Schematics

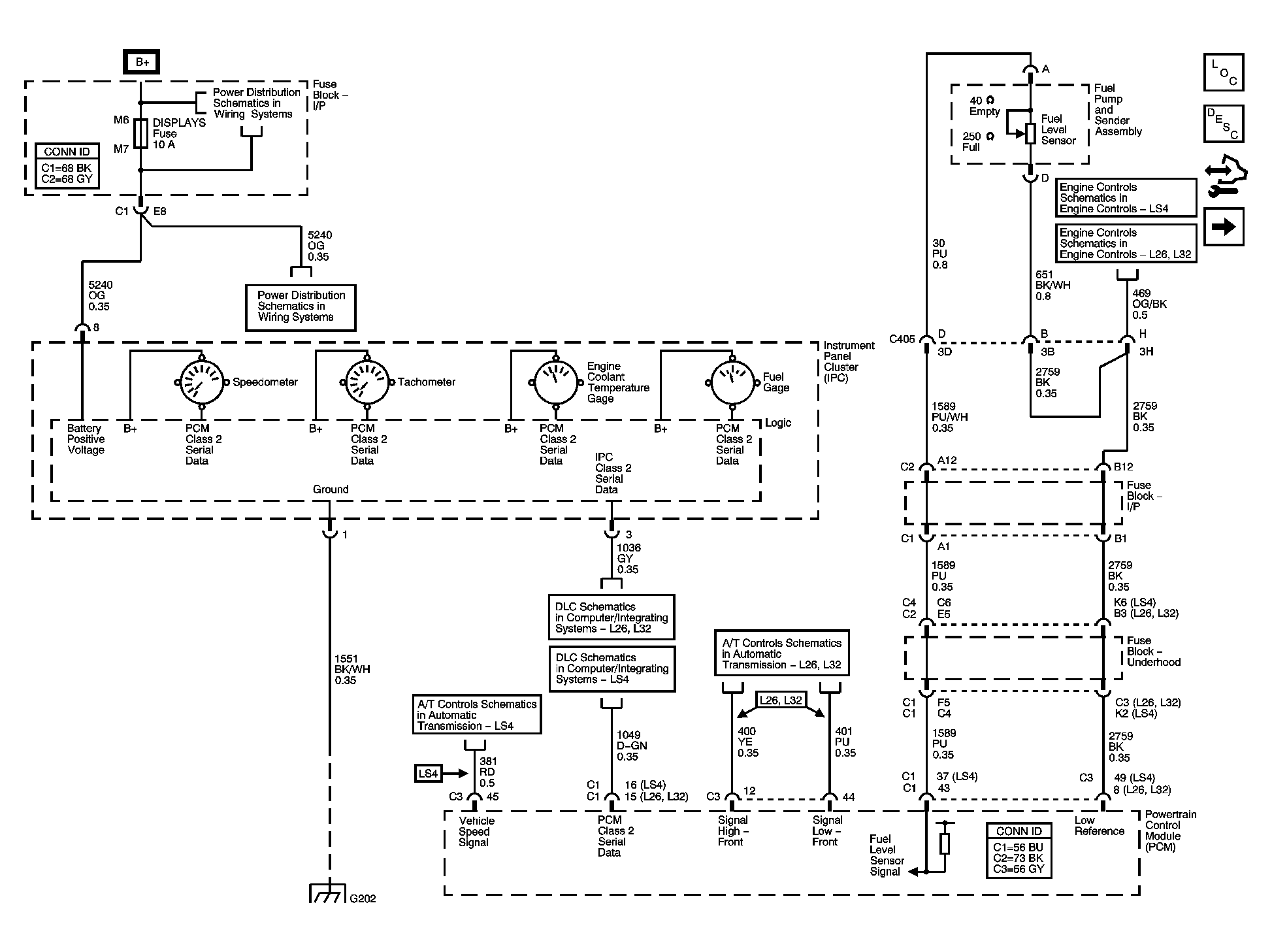

Fig 1: Power, Ground, and Gages Schematics
Courtesy of GENERAL MOTORS CORP.

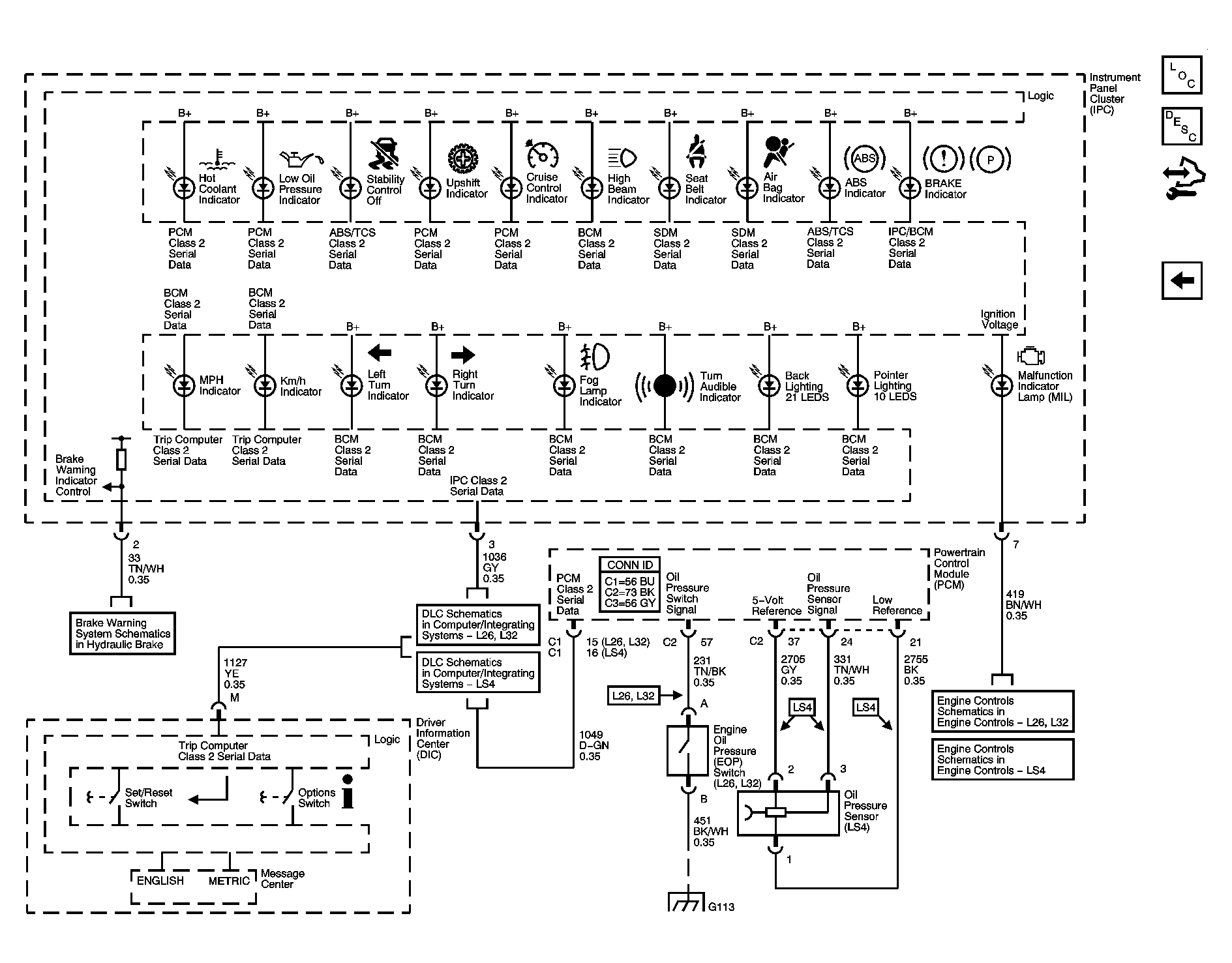

Fig 2: Indicators Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
