Head Up Display Schematics

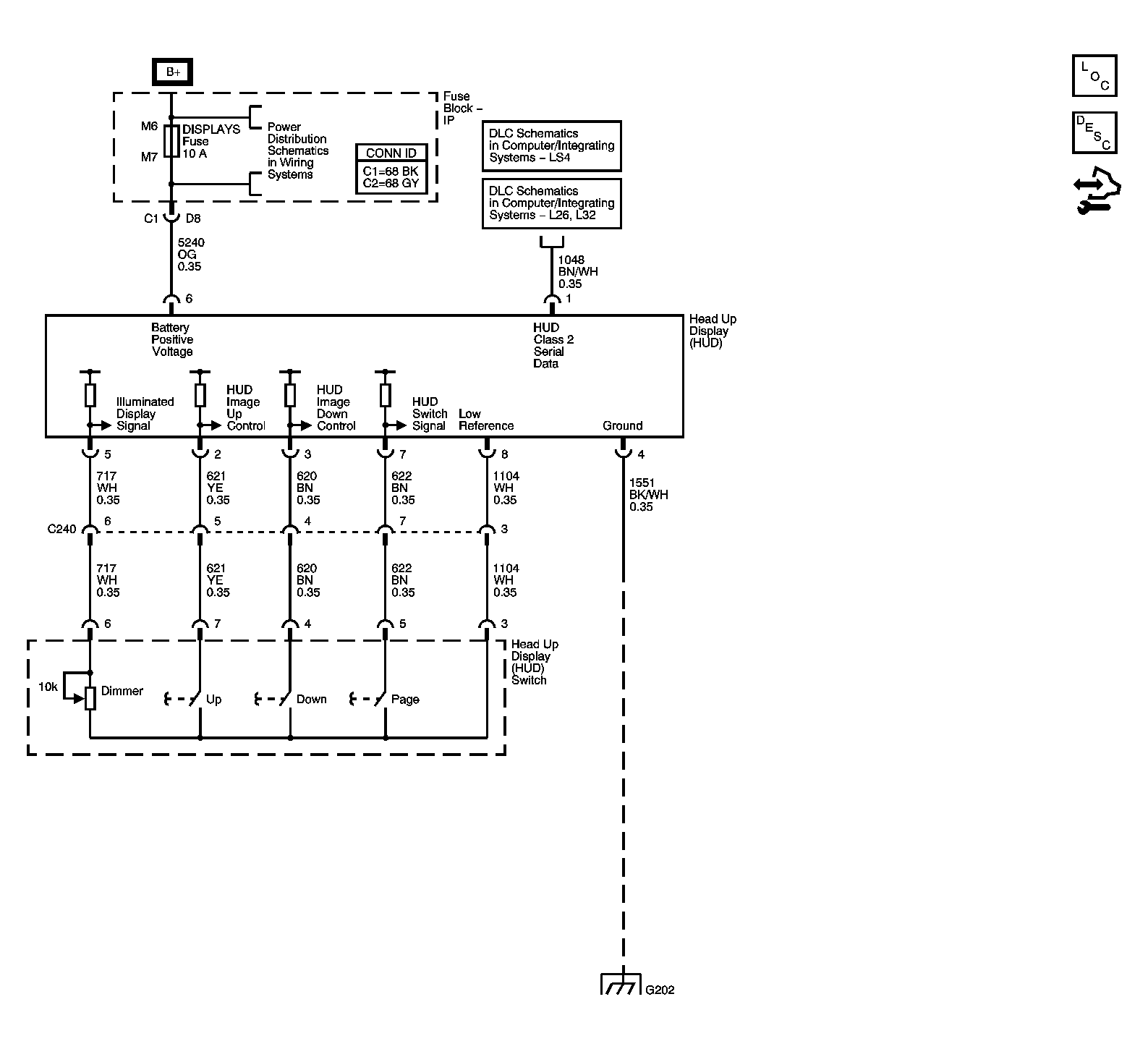

Fig 1: Head Up Display Schematics

GM1457734

Courtesy of GENERAL MOTORS CORP.
