Power Sunroof Schematics

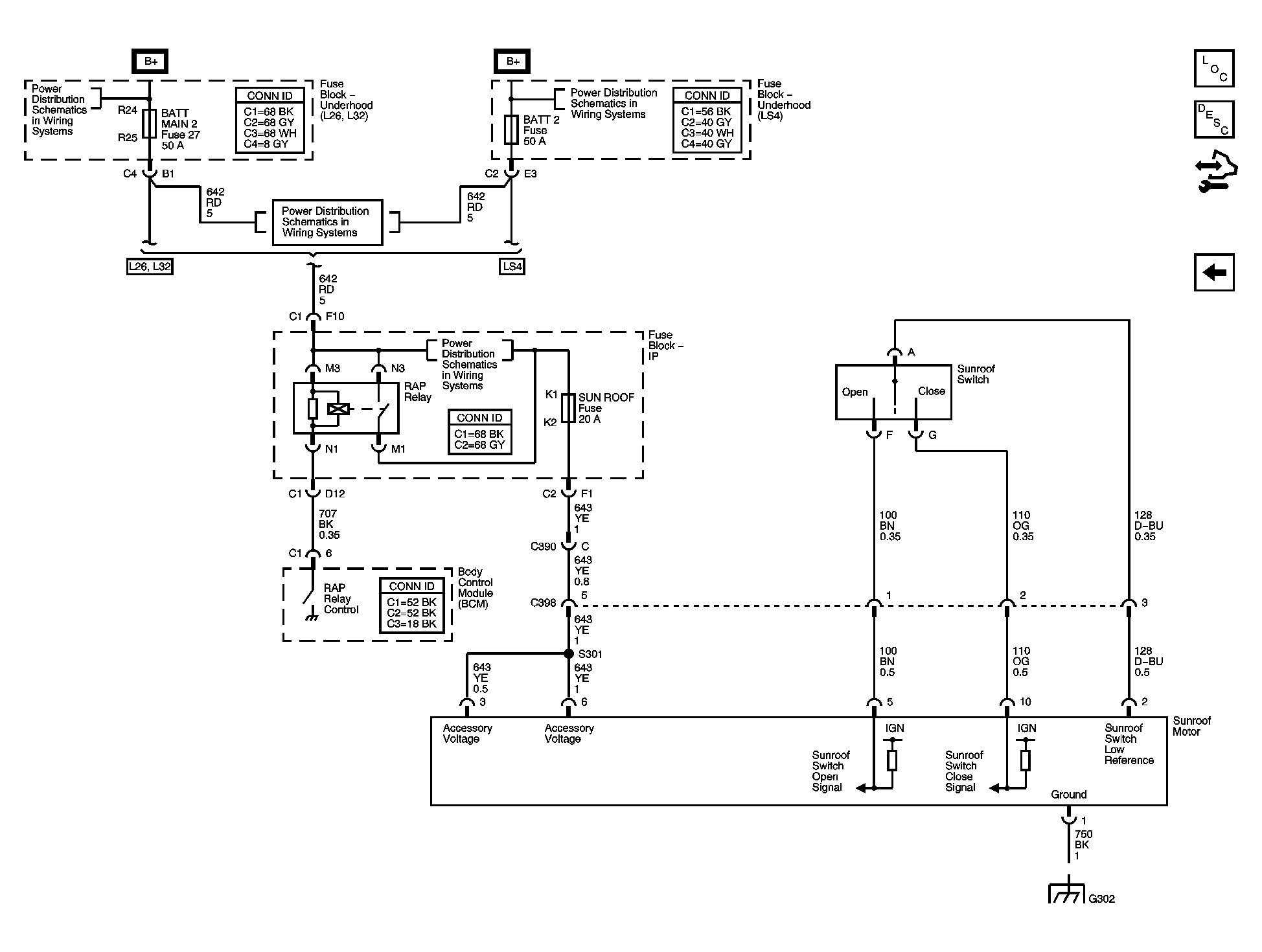

Fig 1: Power Sunroof Schematics (Early Production)
Courtesy of GENERAL MOTORS CORP.

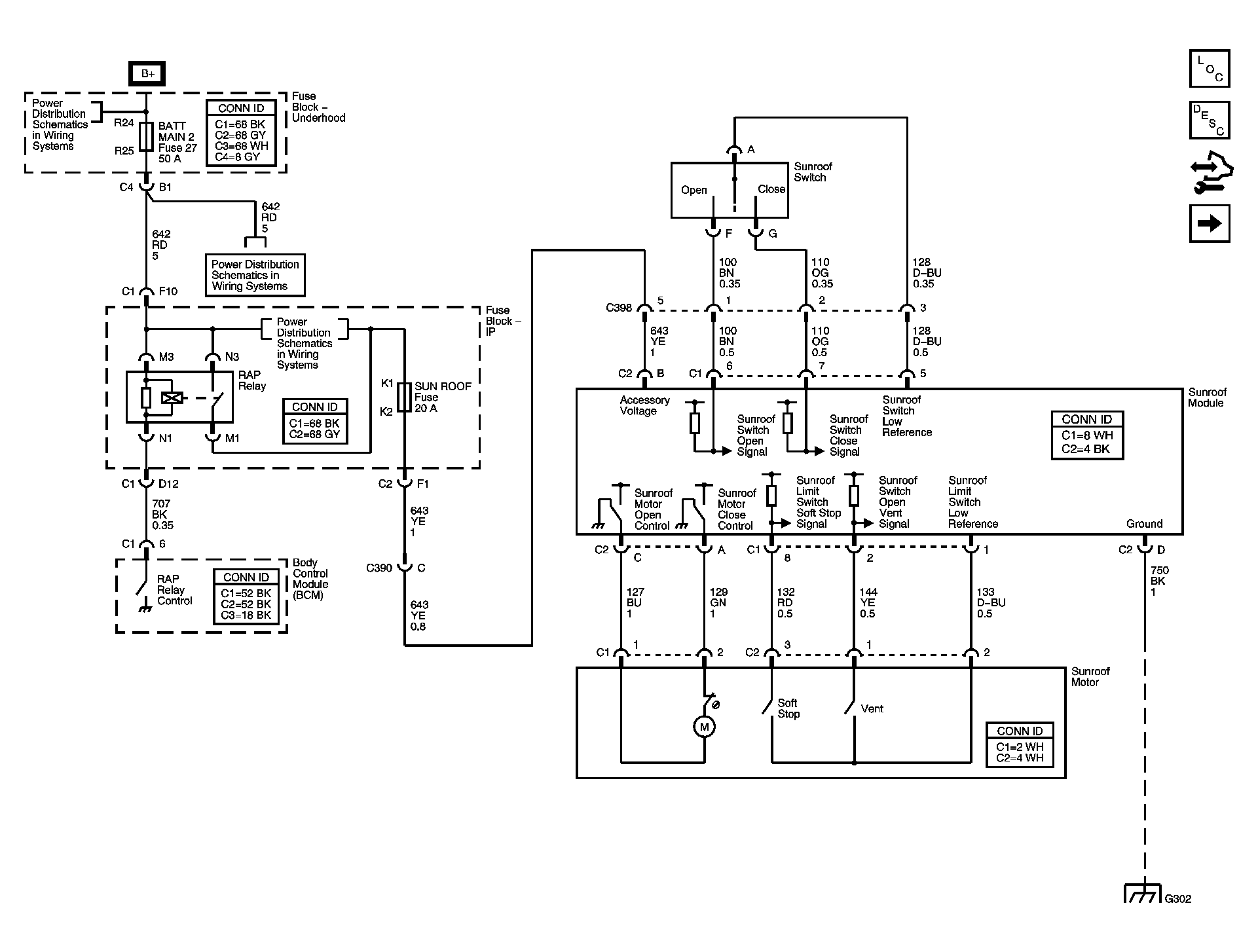

Fig 2: Power Sunroof Schematics (Late Production)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
